Postioning

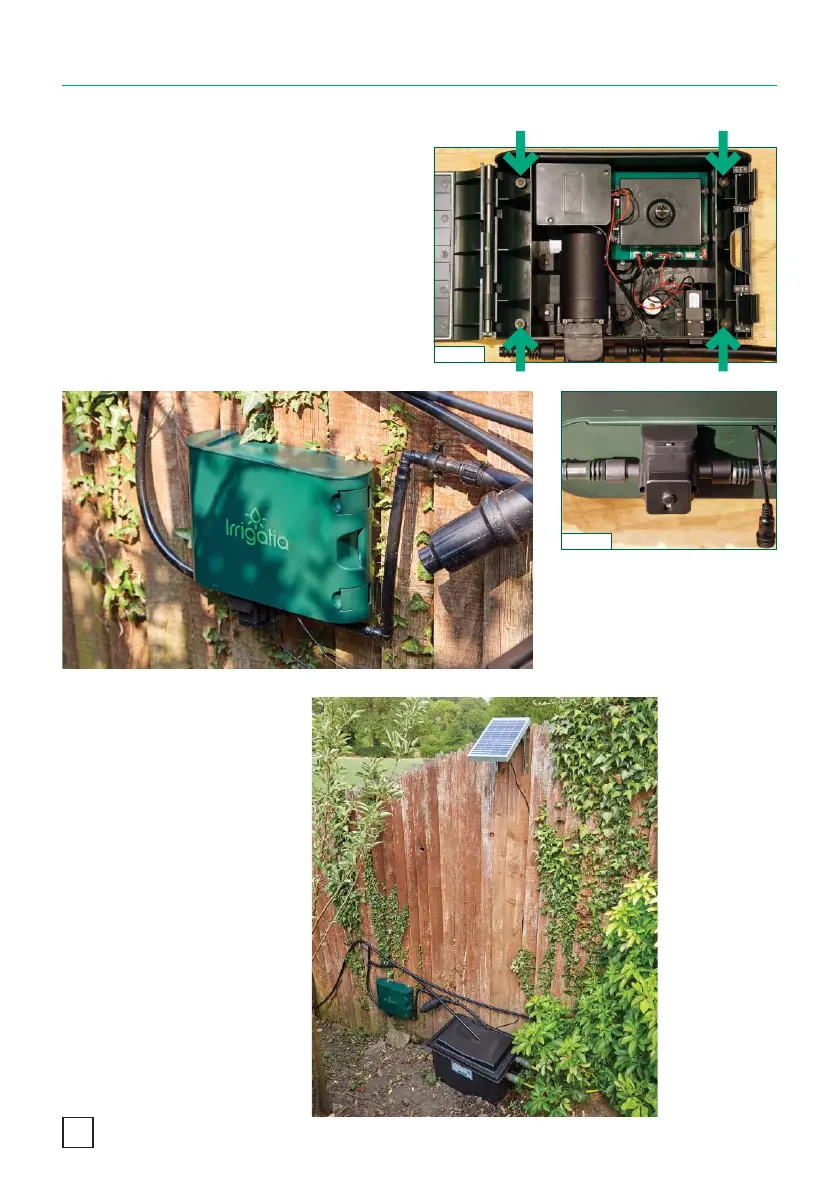

Using the fixing holes indicated by the green arrows,
mount the controller close to the water source and low
down so that the pump inlet (Standard or submersible)
is below the water line in the tank. The controller case is
weather resistant but can be mounted inside if desired.
The solar panel should be mounted, facing the midday
sun and has a 5m cable, a 5m extension can be added if
required. The panel can be connected and screwed tight
to the socket hanging from the base of the controller.
4
If using the standard pump screw in
the hose connectors to the pump.
Small tank gravity fed from main tank
Figure 3
Figure 2
