IRRIGLAD SDBS20 - Page 6

6
6 Right Front wheel
6 Left Front wheel
7 G3/4"sprinkler
head

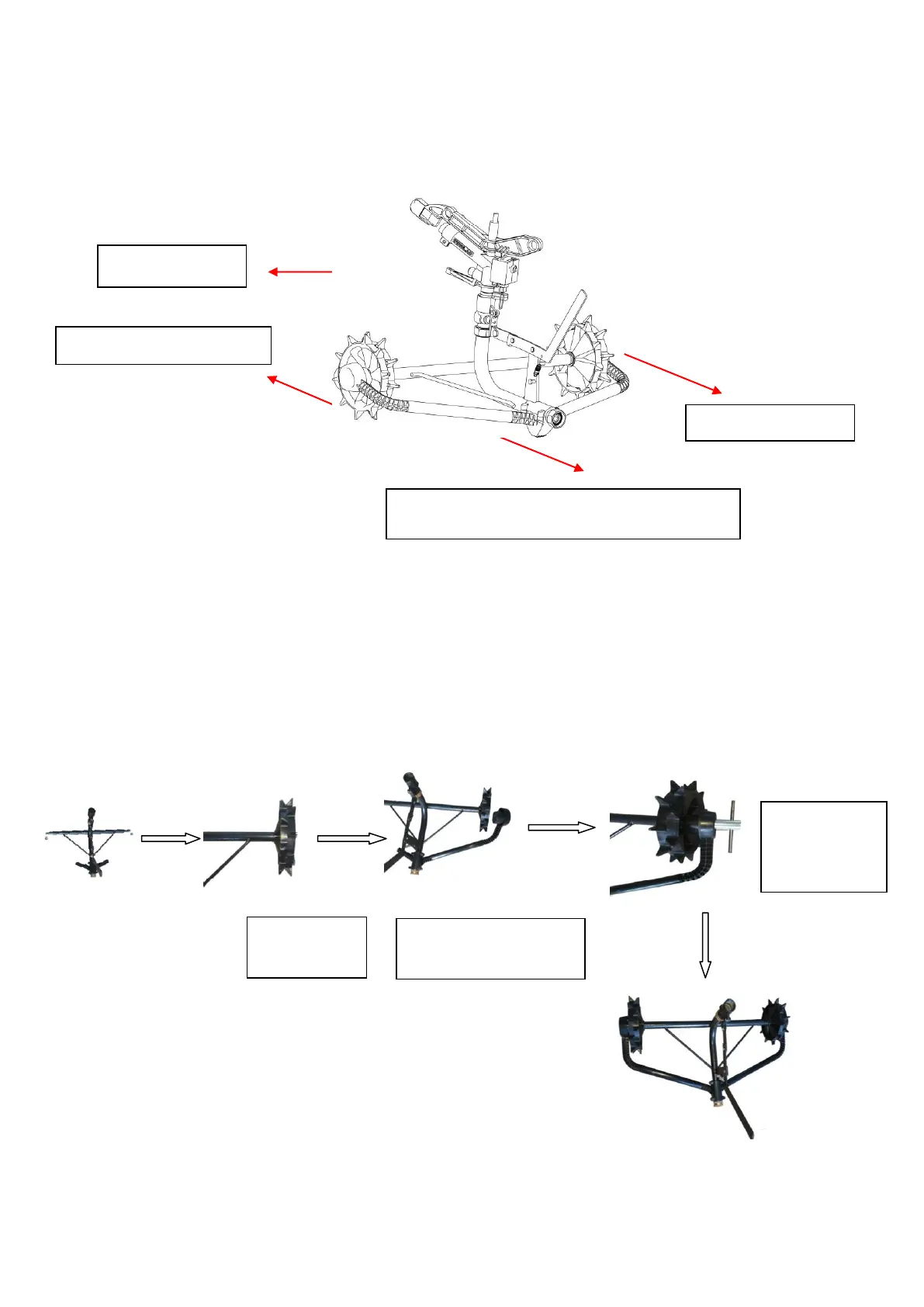

- Step 4: Install the sprinkler head and two front wheels on the travelling sprinkler cart. (1-5)
1-5
Remarks:
(1) The turning function is as alternative and the guiding device is assembled as the
following: (1-6)
1-6
(2) When using the turning function, insert the spike into the required position. The total
9 Guide rod and 10 Guide tube
Assemble
the wheel
Connect the guide rod
and the guide tube
Tighten the
screws with
the tool
