Thread joint

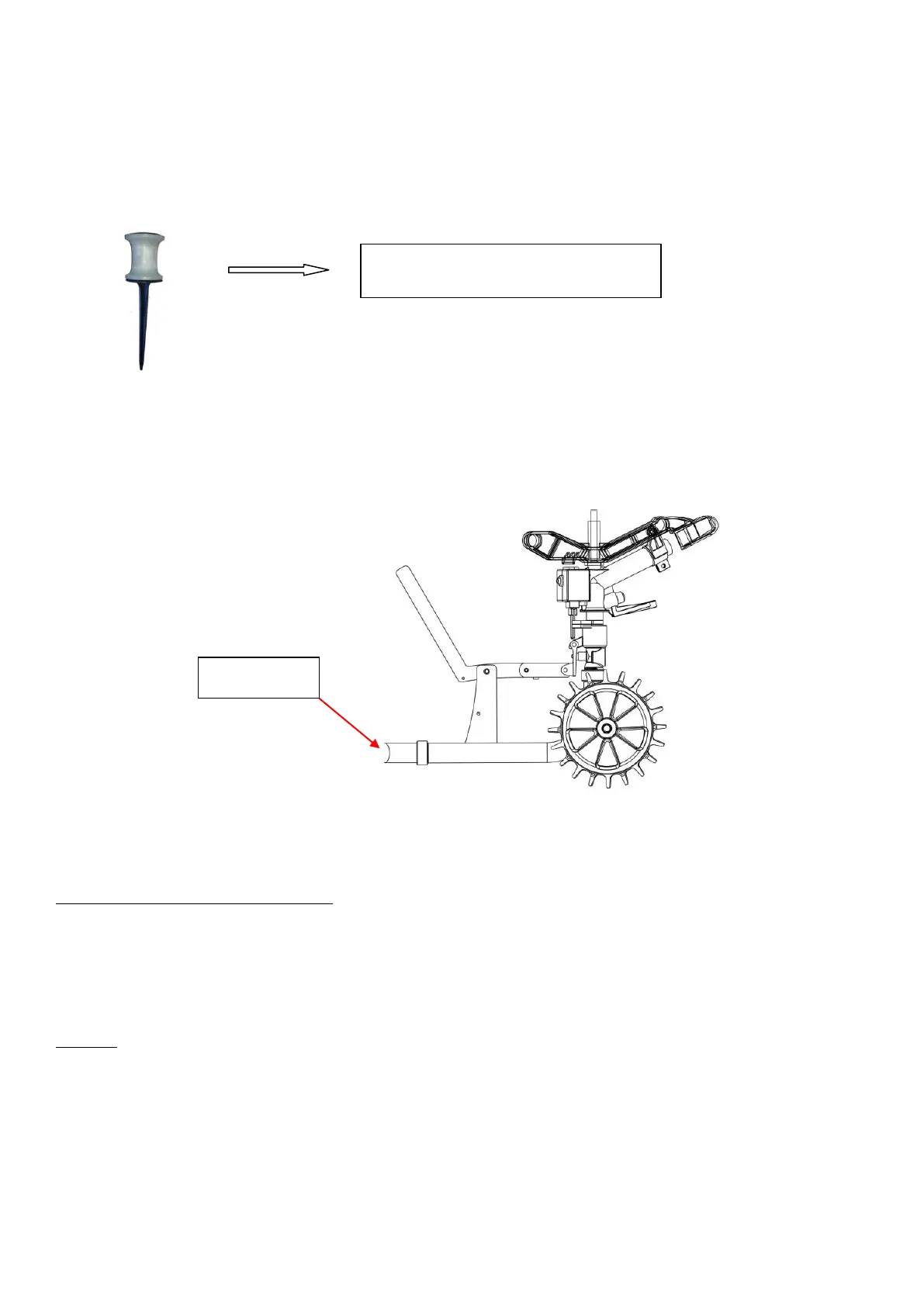

metal parts should be in the earth. When the guiding device meets the top of the spike, the

travelling position will be adjusted automatically. (1-7)

1-7

- Step 5: Connect the hose of the stationary Base Unit to the travelling sprinkler cart. (1-8)

1-8

（E）Operation instruction

* Part A - apply for SDBS20 / SDBS40/ SDBS20 -01/ SDBS40-01; Part B - apply for

WJBS40/ WJBS40-01

Part A:

Step 1: The fully Assembled Unit is pulled onto the lawn, and the legs are pushed into the

ground to prevent the Stationary Base Unit from moving. Connect the Stationary unit to the

water supply and close the main water valve.

This part should be in the earth.
