IrriGreen 2 - Flow Sensor Installation Details; Waterproof Connections; DBY Connector Usage

Flow Sensor Installation
Waterproof “DBY” connections supplied
Install Flow Sensor and Splices in Valve Box
Use the supplied 3M® DBY “grease cap with wire nut” connectors
Push wire nut all the way into gel cap, ensure wires and wire nut are totally sealed by gel
26
Use DBYs as shown

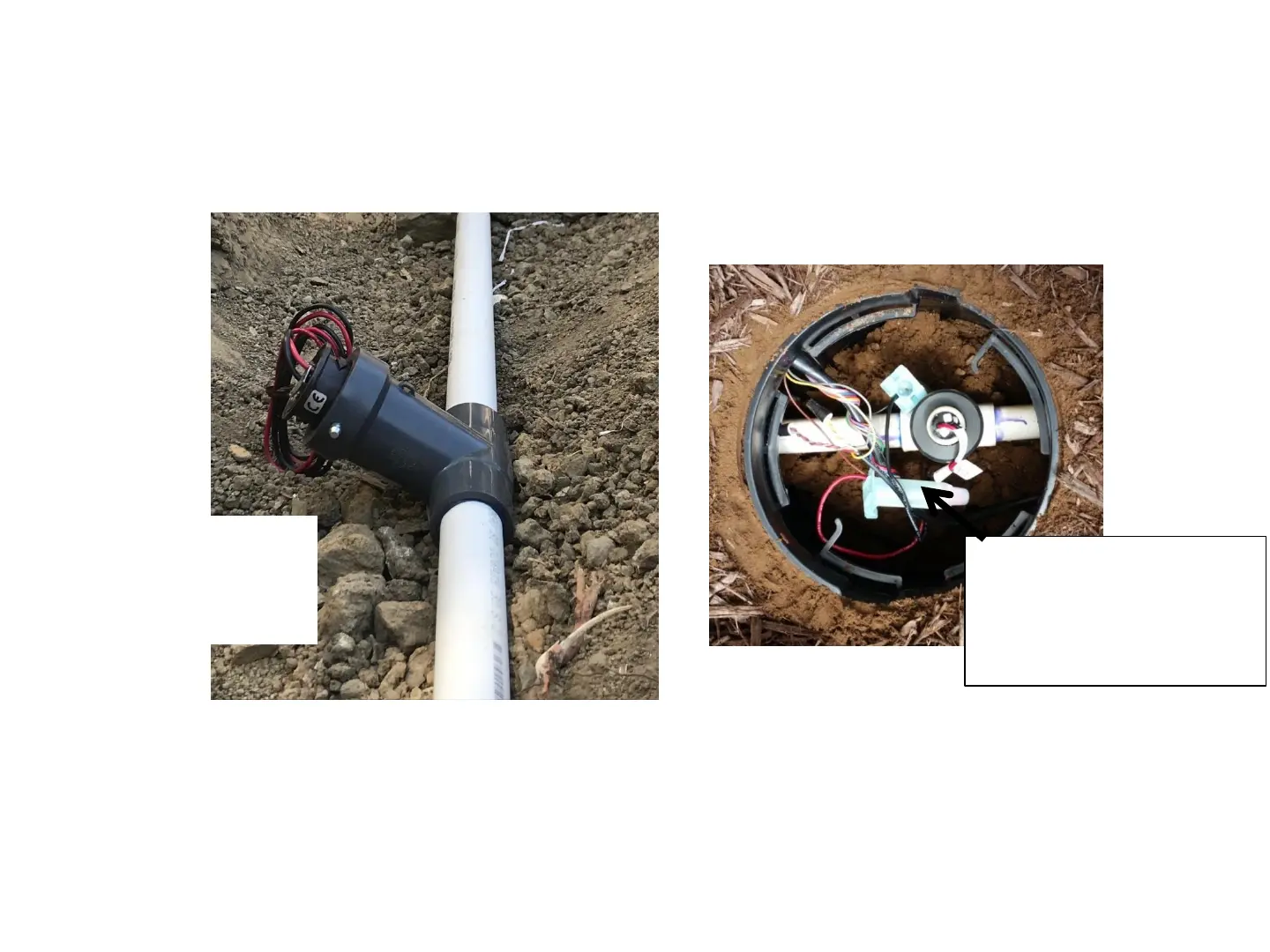

Picture shows an
Impeller flow sensor in
vertical orientation
Ultrasonic
Flow sensors must
be installed at 45
o
