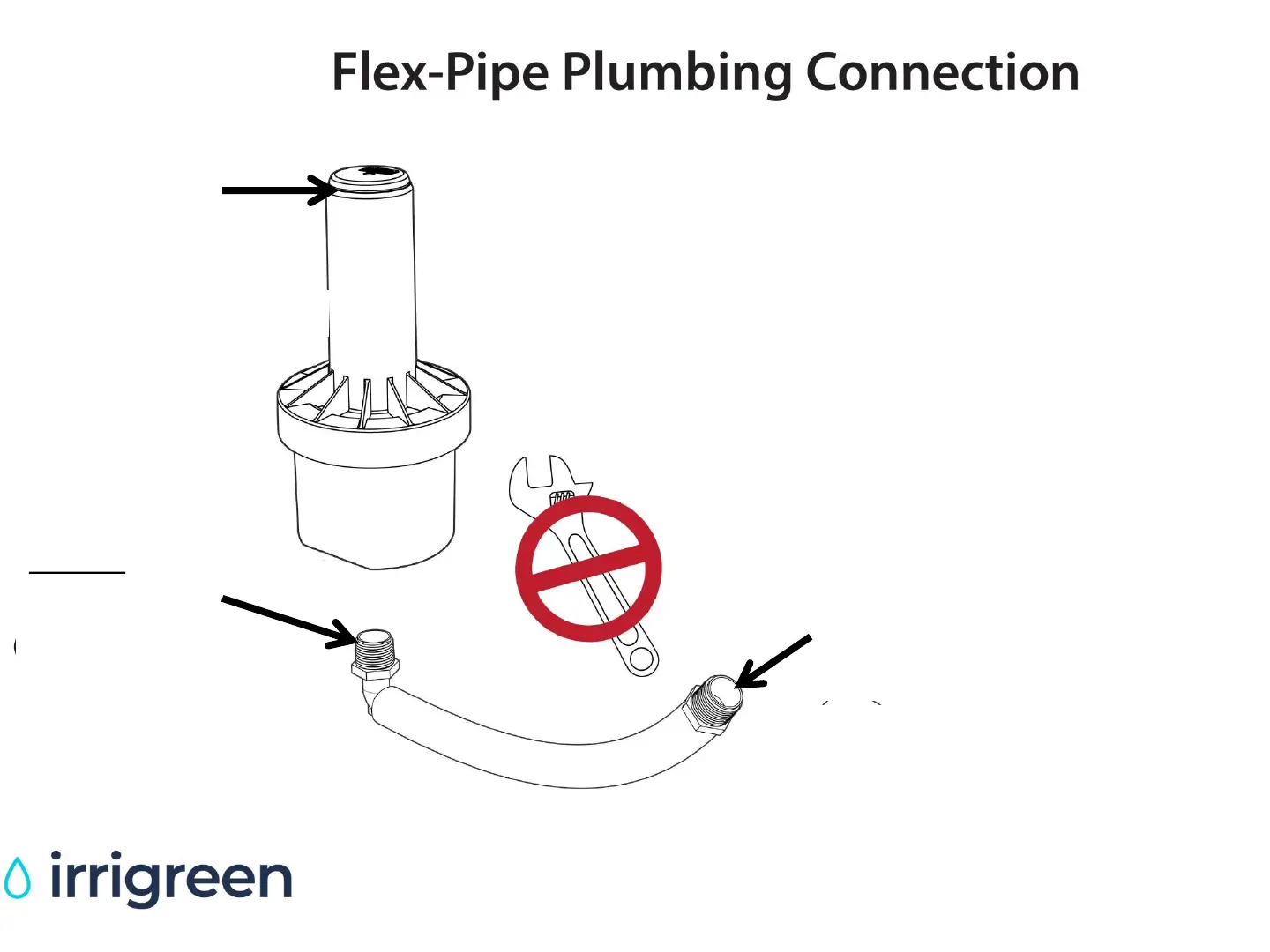

IrriGreen Irrigreen2 - Flex-Pipe Plumbing Connection; Bury Depth and Head Positioning; Head Tightening and Teflon Tape; Warranty and Flex-Pipe Usage

18
Bury to here
Top of head
slightly above
grade
Hand tighten head onto the elbow until it bottoms out
against the o-ring inside the head
Teflon tape use recommended
on the 1” mainline connection
to prevent leaks
Do not use teflon
tape on the
elbow fitting*
Use of Flex Pipe required for warranty*
*Use of teflon tape inside
head, or not mounting
head on Flex-Pipe, voids
the head warranty
