Optional Flow Sensor Installation
Waterproof “DBY” connections supplied
Install Flow Sensor and Splices in Valve Box
Use the supplied 3M® DBY “grease cap with wire nut” connectors
Push wire nut all the way into gel cap, ensure wires and wire nut are totally sealed by gel
NOTE: 24” PVC before and 12” after the flow sensor
33
Use DBYs as shown

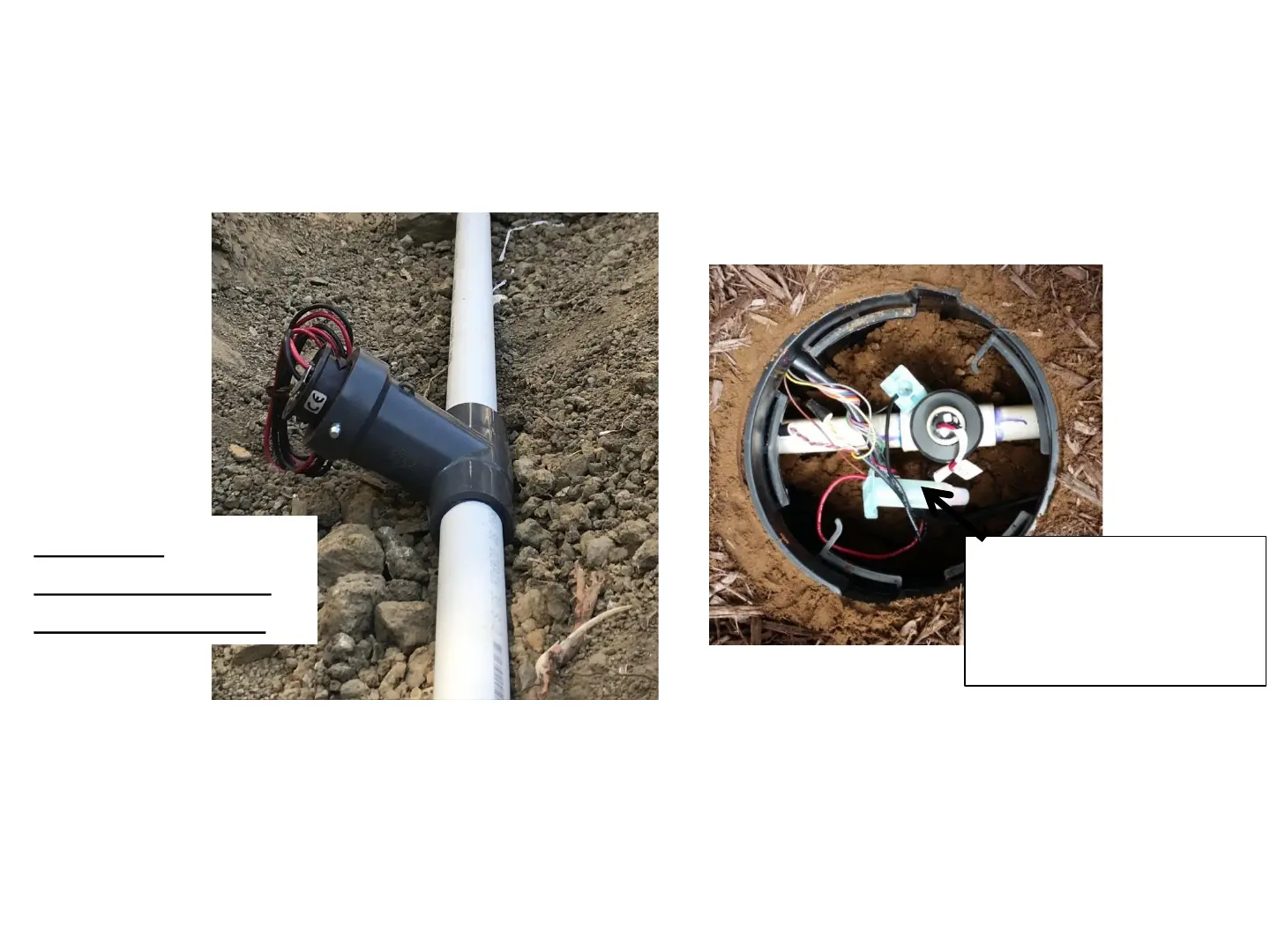

Picture shows an
Impeller flow sensor in
vertical orientation
Ultrasonic
Flow sensors must
be installed at 45
o
