ISAN MINI PW User Manual

MINI PW CONTROLLER
(Power version)
4
 The electronic controller cannot be installed in other than 230 V systems.
Observe the following colour code for plugless appliances:
CONDUCTOR
COLOUR
CONNECTION POINT
Brown
Phase conductor
Blue
Neutral conductor
Yellow-green
Protective conductor (Class I)
 The appliance must be connected to a socket circuit breaker.
 If the appliance is to be installed in a bathroom, it must be protected by a
residual current device with 30mA release current.
 For bathroom installations, the Class I controller should be located in Zone 3
(see Fig. 1) so that the control unit is out of reach of people using the shower or
bathtub.
 Towel dryers to be fitted with controller must be installed 40 - 80 mm away from
the wall and no less than 250 mm above the floor.

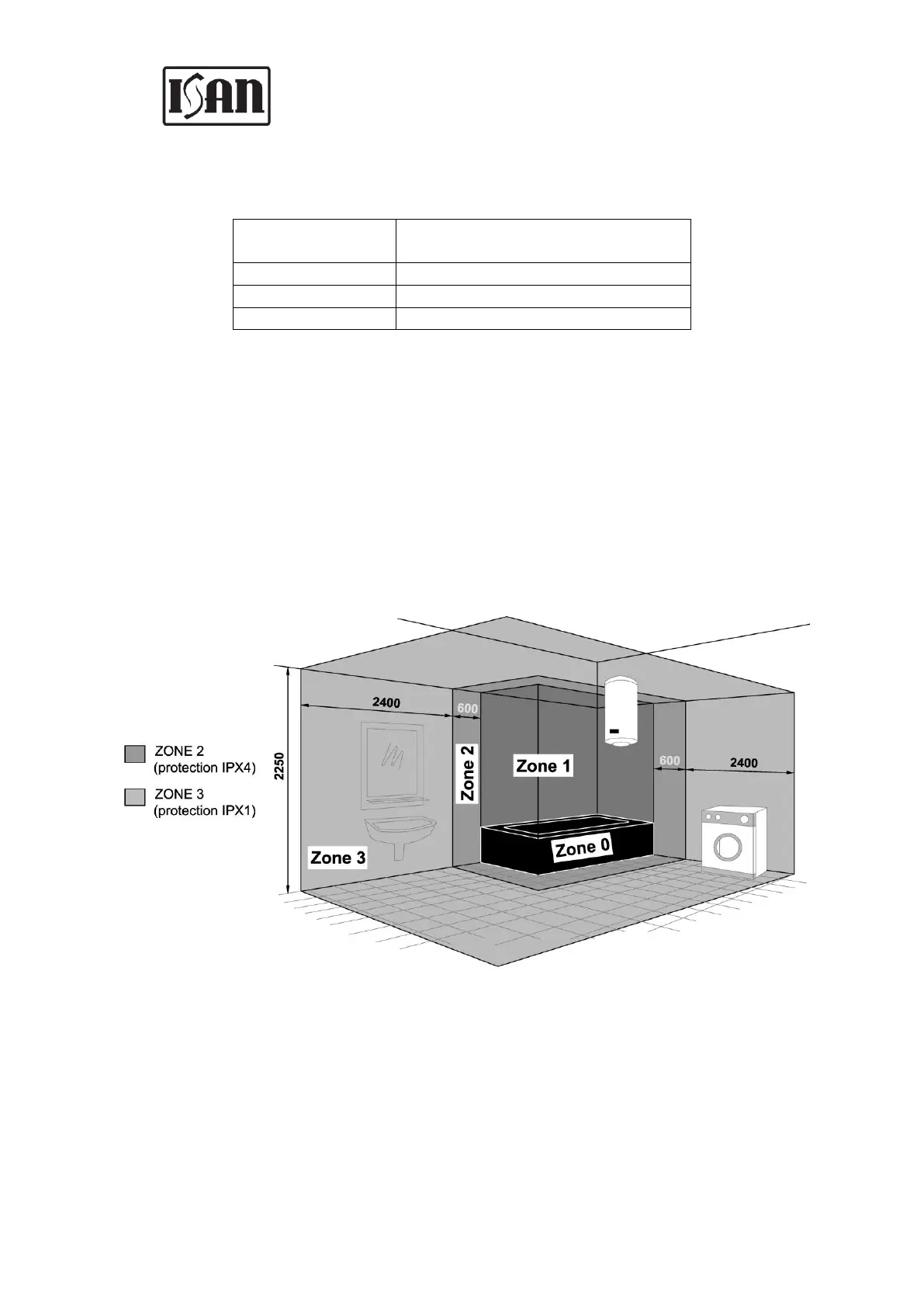

Fig. 1: Bathroom zone classification
