ISM SV-250 - 2. Power Line Connections

3
8) CN2: Front cover counter (CO2) connector.
 CN2:前蓋 C02 接頭.
9) CN4: Material edge sensor connector.
 CN4:布端檢出器插頭.
10) CN8: Standing pedal operation connector.
 CN8:立式作業踏板接頭.
Option IN_A : pin 7 & 8
Option IN_B : pin 9 & 10
Option IN_C : pin 11 & 12
11) CN15:option B.
CN15: option B 接頭.
Option IN_F : pin 2 & 7
Option IN_G : pin 3 & 7
Option IN_H : pin 5 & 7
12) CN16:option C.
CN16: option C 接頭.
Option IN_D : pin 2 & 6
Option IN_E : pin 3 & 6
13) CN17:option D.
CN17: option D 接頭.
14) CN11:option A.
CN11: option A 接頭.
Option OUT_A : pin 2 & 7
Option OUT_C : pin 1 & 6
Option OUT_D : pin 3 & 8

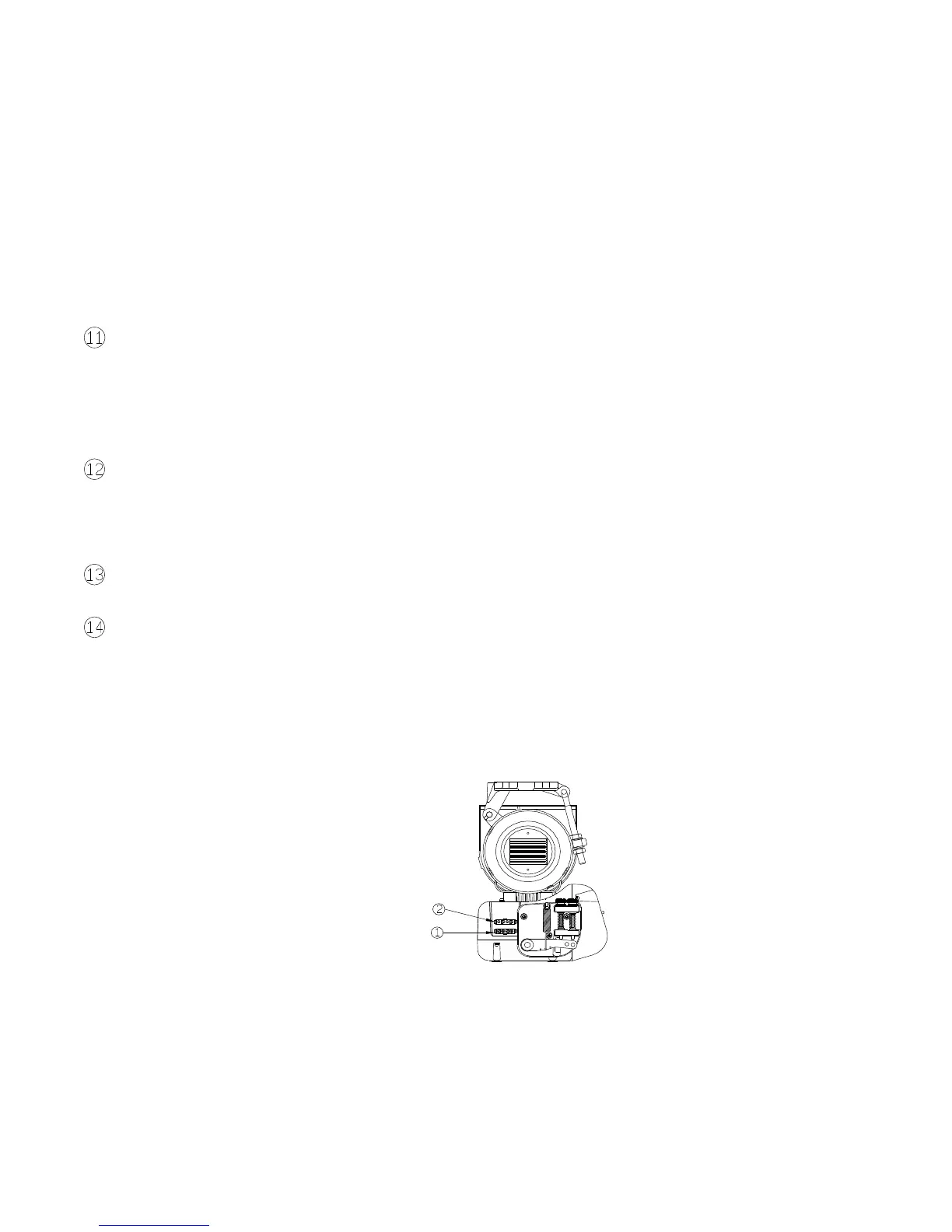

2). See Fig.4
如圖(四)所示:
1) Power source line connector.
電源線接頭.
2) Motor power line connector.
馬達動力線接頭.
Fig.4 (圖 四)
