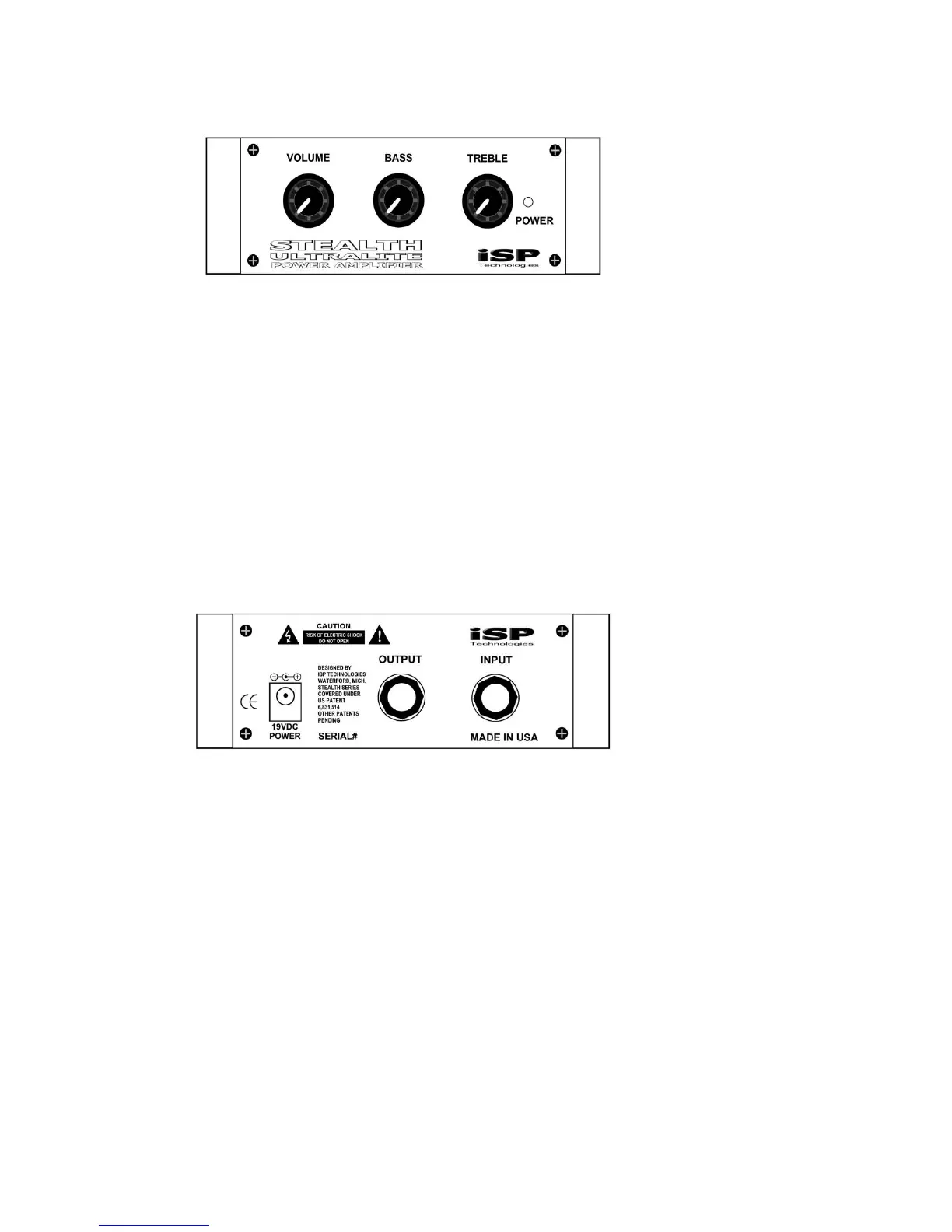

STEALTH ULTRA-LITE™ FRONT PANEL
1. VOLUME CONTROL
Controls the Volume of the STEALTH ULTRA-LITE™ .
2. BASS CONTROL
Controls the amount of Bass in the output of the STEALTH ULTRA-LITE™ .
Provides +/-10db of adjustment.
3. TREBLE CONTROL
Controls the amount of Treble in the output of the STEALTH ULTRA-LITE™ .
Provides +/-10db of adjustment.
4. POWER ON LED
Indicates the STEALTH ULTRA-LITE™ is powered ON.
STEALTH ULTRA-LITE™ REAR PANEL
1. OUTPUT SPEAKER CONNECTION
Speaker connection, connect ¼ speaker cord to external speaker. Use 4Ω, 8Ω or
16Ω loads.
2. INPUT CONNECTION
Connect input signal from Guitar pedals or preamplifier
3. EXTERNAL 19VDC POWER ADAPTOR CONNECTION
Connect external 19VDC Power Adaptor to this connection. CAUTION: USE ONLY THE
POWER ADAPTOR SUPPLIED WITH THE UNIT, OTHER POWER SOURCE MAY CAUSE
DAMAGE OR FAILURE OF THE UNIT.
If the STEALTH ULTRA-LITE™ is used on a pedal board the supplied rubber
feet can be mounted on the bottom of the unit.
