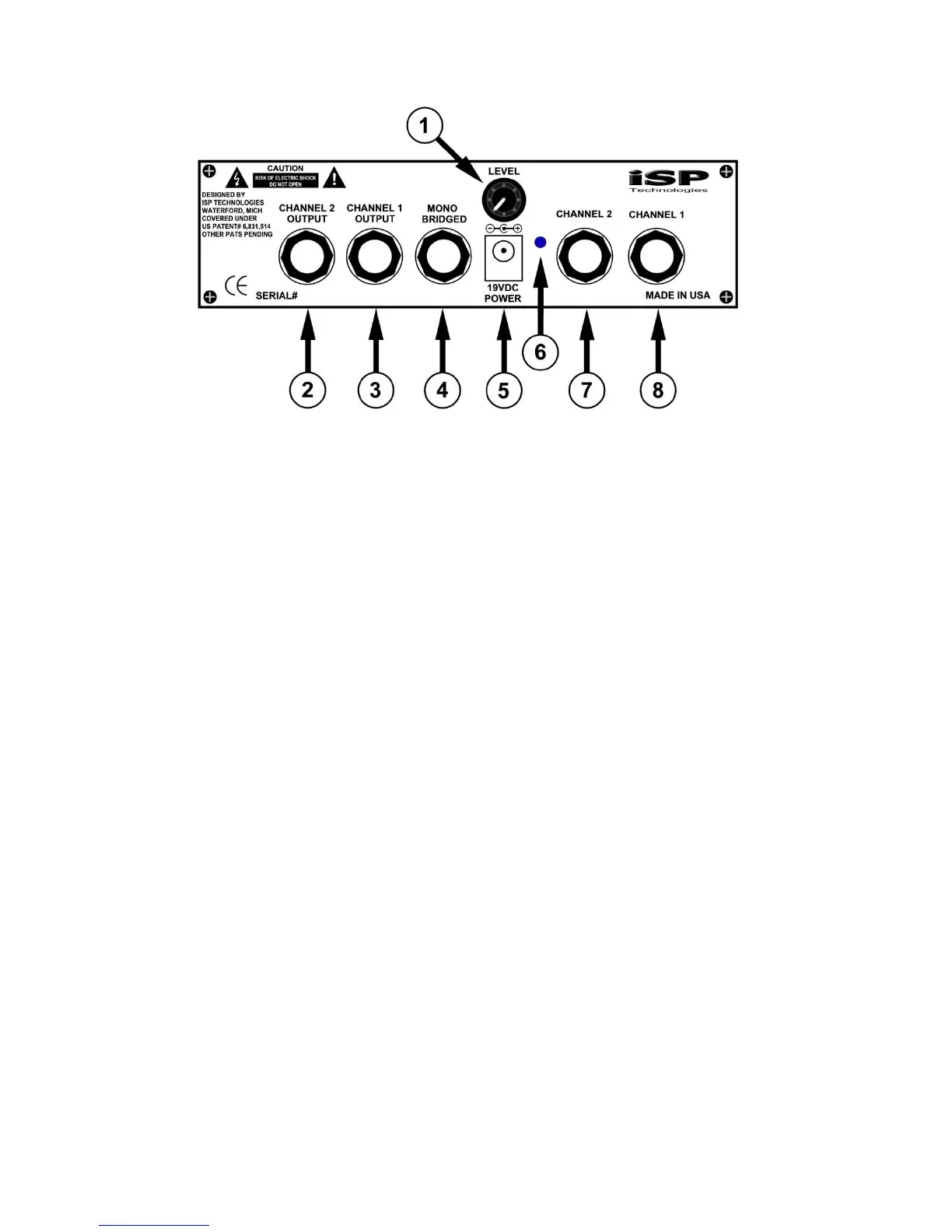

STEALTH POWER AMPLIFIER FRONT PANEL
1. Master Level Control
Controls the level of both Channel 1 and Channel 2 in Stereo Mode and Bridge
Mode.
2. Channel 2 Output Speaker Connection
Channel 2 Speaker connection, connect ¼ speaker cord to Channel 2 speaker. Use
4Ω, 8Ω or 16Ω loads. NOTE: Mono Bridge Output is dissabled when Channel
ouptut is used.
3. Channel 1 Output Speaker Connection
Channel 1 Speaker connection, connect ¼ speaker cord to Channel 1 speaker. Use
4Ω, 8Ω or 16Ω loads.
4. Mono Bridged Output Speaker Connection
Mono Bridged Speaker connection, connect ¼ speaker cord to Mono Speaker. Use
8Ω or 16Ω loads.
5. External 19VDC Power Adaptor Connection
Connect external 19VDC Power Adaptor to this connection. CAUTION: USE ONLY THE
POWER ADAPTOR SUPPLIED WITH THE UNIT, OTHER POWER SOURCE MAY CAUSE
DAMAGE OR FAILURE OF THE UNIT.
6. Power ON LED / BLUE
Power LED indicates when unit power is ON.
7. Channel 2 Audio Input Connection
Channel 2 Audio Input connection, connect ¼ inch input audio signal.
8. Channel 1 Audio Input Connection
Channel 1 Audio Input connection, connect ¼ inch input audio signal.
