Door or Gate Release
I2000DR
The door release unit, I2000DR, should be located close to each door or gate to be controlled. The unit can
be mounted in a closet or somewhere out of sight close to each door or gate. Mounting is accomplished with
a deep single gang box. Run standard 16 gauge 2 conductor cable from a 12 volt AC or DC source to the door
release unit. Run another 16 gauge 2 conductor cable from the door release unit to the door speaker. Be sure
to leave a service loop of approximately 10 inches on both ends.
I2000DRM
Run a third 16 gauge 2 conductor cables from the door release unit to the door strike unit, I2000DRM, Door
Release Mechanism.

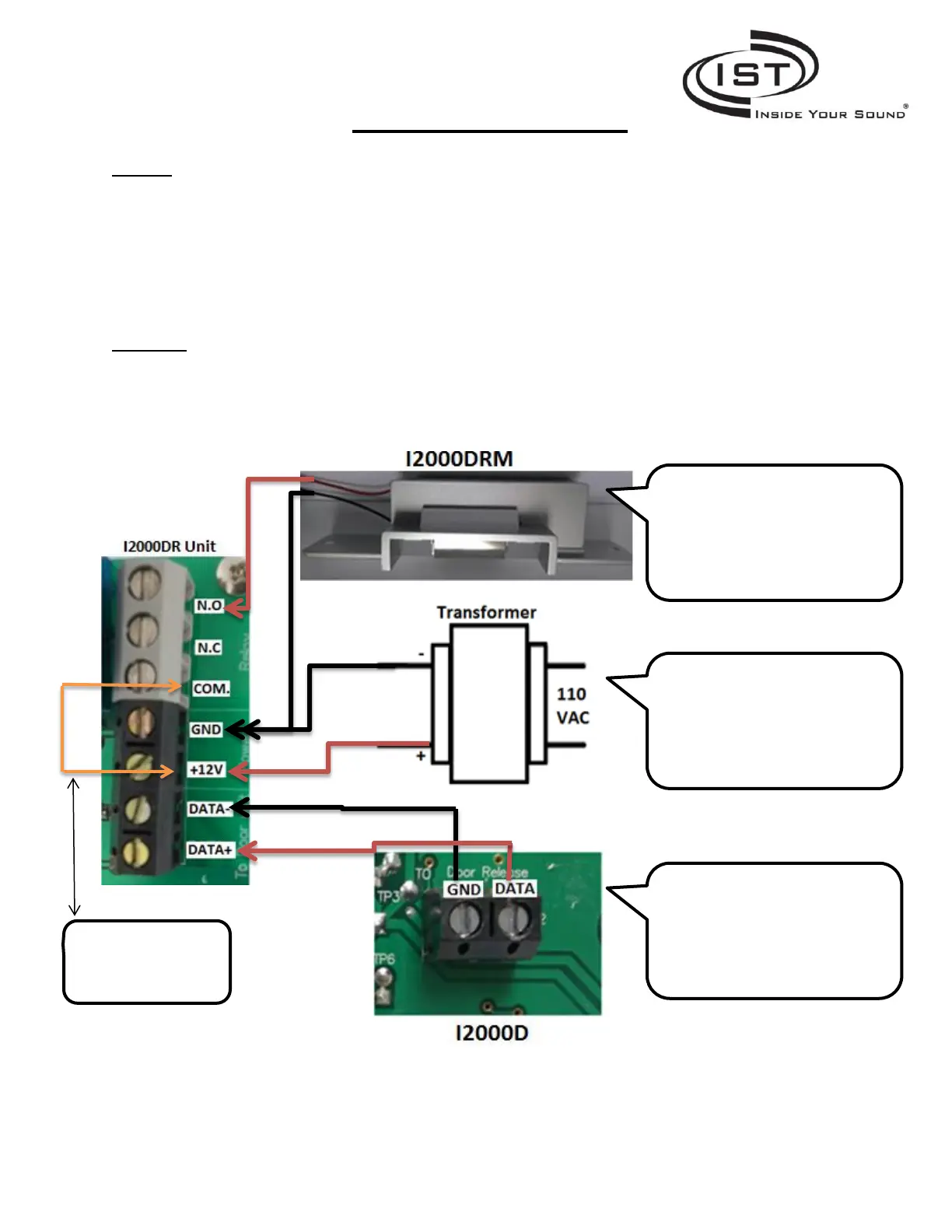

Black Negative wire connects
to GND
Red Positive wire connects to
N.O
Black Negative wire connects
to GND
Red Positive wire connects to
+12V
Black Negative (GND) wire
connects to DATA -
Red Positive (DATA) wire
connects to DATA +
Jumper wire from
COM. To +12V
To Next Page
