0A-30 General Information
NOTE:
If the repair manual specifies an application method,
follow that method.
MFW70AMF000101
mm (in)
OK
OK
NG
Example
Others :2-6 mm (0.08-0.24 in)
SCREW
HOLE
JUDGE
MENT
DEPRESSION
1
3
(0.04
0.12)
1
3
(0.04
0.12)
More than
2 (0.08)
Depression
Apply liquid gasket to
the bolt hole interior
Specified
bead width
Anaerobic Type:2-3 mm (0.08-0.12 in)

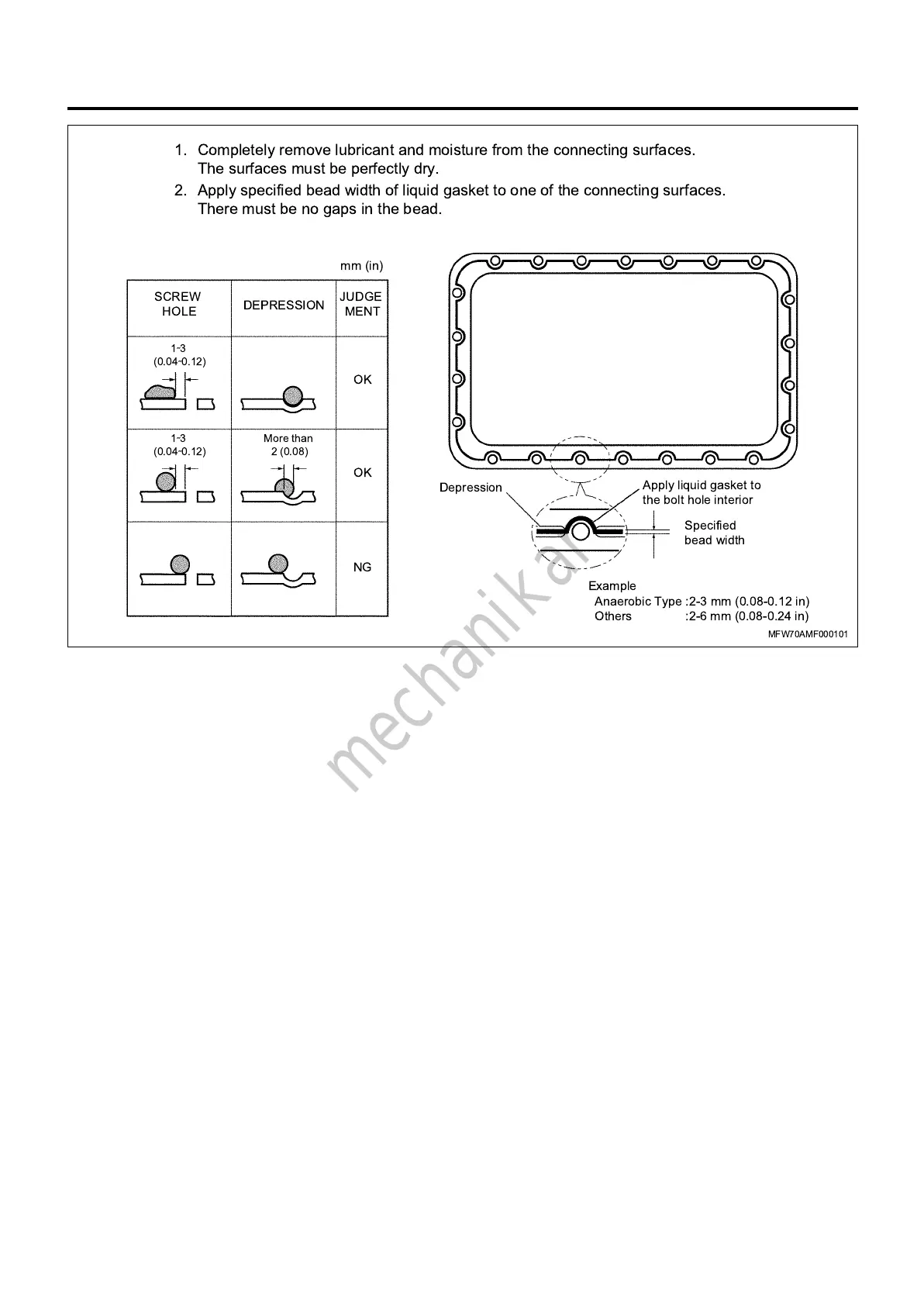

1.Completely remove lubricant and moisture from the connecting surfaces.
The surfaces must be perfectly dry.
2.Apply specified bead width of liquid gasket to one of the connecting surfaces.
There must be no gaps in the bead.
