CONTROLS AND INSTRUMENTS
9 Speeds Manual Transmission Model
V
Model with ZF9S1110 Model
Transmission
Fully depress the clutch pedal before
shifting into any gear.
In models with single-H shift pattern, a total
of 9 forward gears are available from the
low and high speed ranges, the low range
providing 5 gears consisting of "1 (1st
gear)" to "4 (4th gear)" plus the "C1 (crawler
1 gear)", and a "R1 (reverse 1 gear)", while
the high range providing 4 speeds from "5
(5th gear)" to "8 (8th gear)", "C2 (crawler 2
gear)" and "R2 (reverse 2 gear)". The high
range shares the same gearshift pattern
with the low range.
The selector switch on the gearshift lever is
used to make the switch between the low
and high ranges.

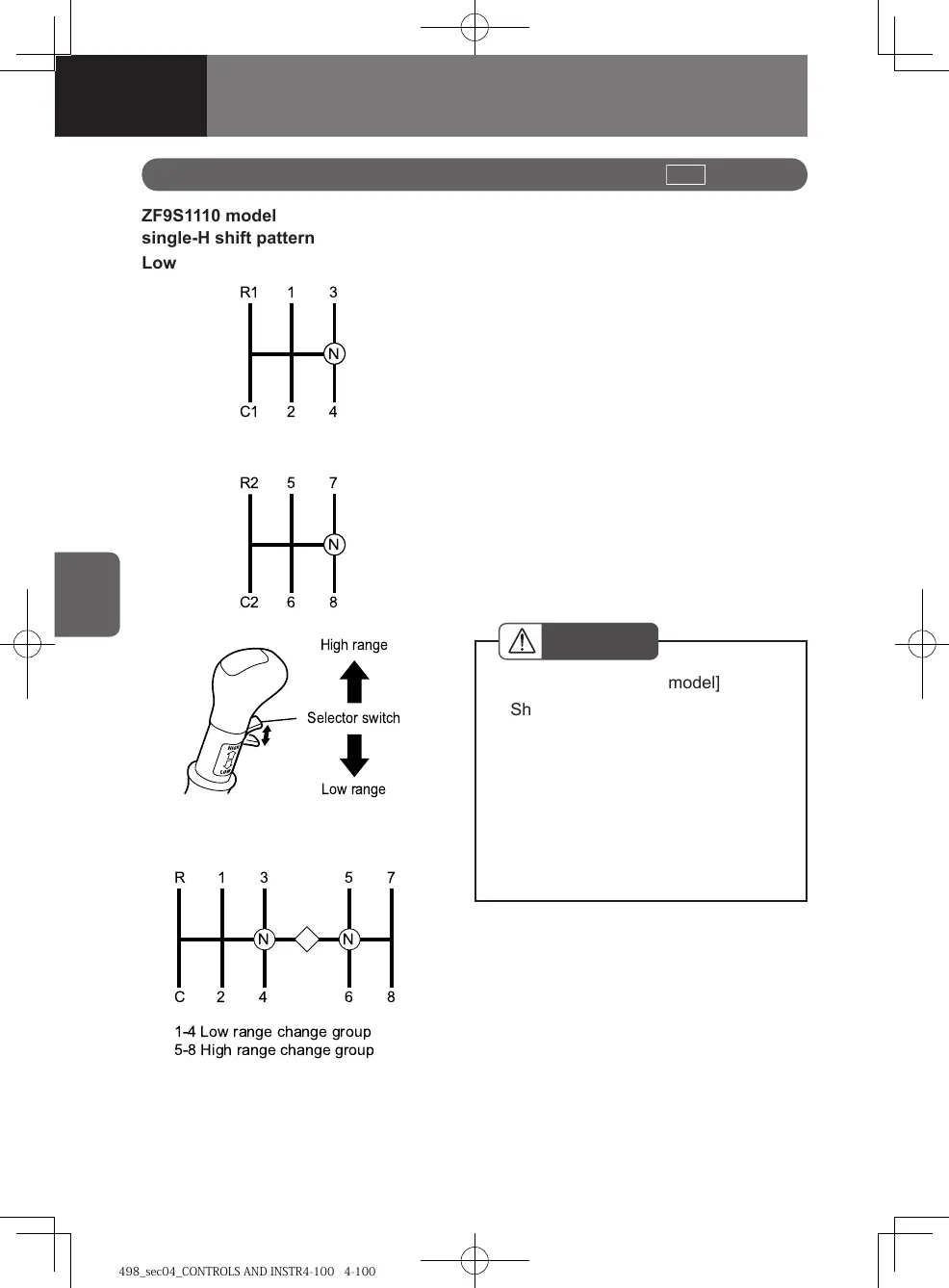

N
C1 2 4
13
R1
ZF9S1110 model
single-H shift pattern
Low range
N
C2 6 8
57
R2
High range
CAUTION
[Single-H shift pattern model]
Shift into "C1 or C2 (crawler gear)"
or "R1 or R2 (reverse gear)" only
after the vehicle has come to a
complete stop.
[Double-H shift pattern model]
Shift into "C (crawler gear)" or "R
(reverse gear)" only after the vehicle
has come to a complete stop.
•
•
ZF9S1110 model
double-H shift pattern
!
