4-101
CONTROLS AND INSTRUMENTS
Model with ZF9S1110 Model Manual
Transmission
V
→ Refer to page 4-110
NOTE
In models with single-H shift pattern,
the gear ratio of the "C2 (crawler
2 gear)" gear is between "3 (3rd
gear)" and "4 (4th gear)". The gear
ratio of the "R2 (reverse 2 gear)"
gear is between "4 (4th gear)" and
"5 (5th gear)".
•

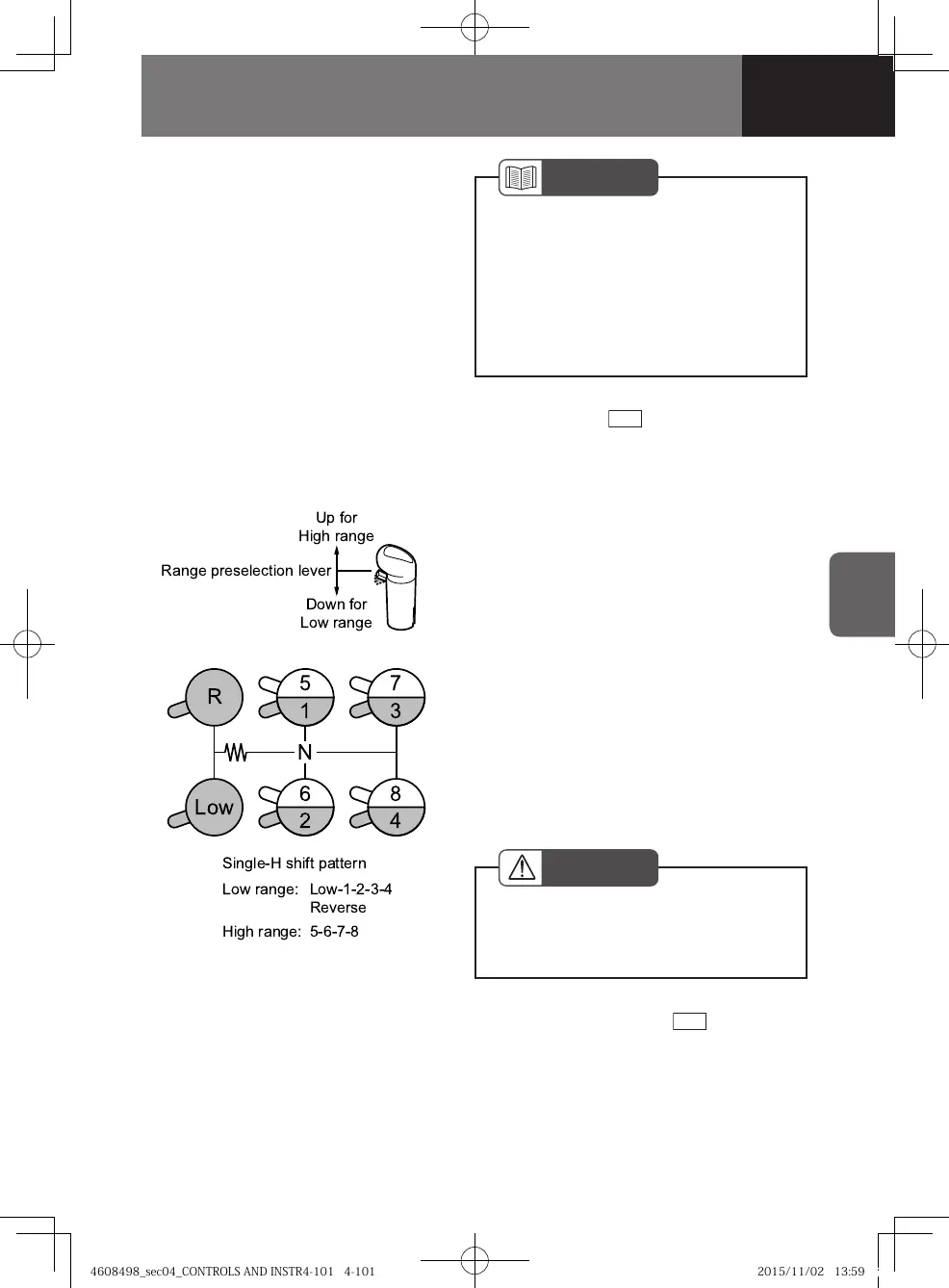

Model with ES11109/FS8209A Model
Transmission
A total of 9 forward gears are available
from the low and high speed ranges, the
low range providing 5 gears consisting of
"1" (1st gear) to "4" (4th gear) plus the "L"
(low gear) and a "R" (reverse gear), while
the high range provides 4 speeds from "5"
(5th gear) to "8" (8th gear). The high range
shares the same gearshift pattern with the
low range.
The selector switch on the gearshift lever is
used to make the switch between the low
and high ranges.
Fully depress the clutch pedal before
shifting into any gear.
Model with ES11109/FS8209A Model
Manual Transmission
V
→ Refer to page 4-114
CAUTION
Shift into "L" (low gear) or "R"
(reverse gear) only after the vehicle
has come to a complete stop.
•
! "
#$ ! !!
% $$$$&
"
% $$$
'
