2. The configuration steps
Step one: Connect the terminal and the computer installed with the terminal configuration
tool program by the network wire, Plug in the power until the termianl power indicator is on.
Step two: double-click to open the shortcut icon of “ terminal configuration tool”, select the
network card first, and left-click the "query" button in the window, to query the terminal’s
original IP address. Please pay attention to: local IP address of the computer should be set in
the same network segment as the terminal, because the default IP of terminal is:
192.168.168.166, so the computer's local IP address should also be set to: 192.168.168.X,
otherwise it maybe not match the IP terminal address.

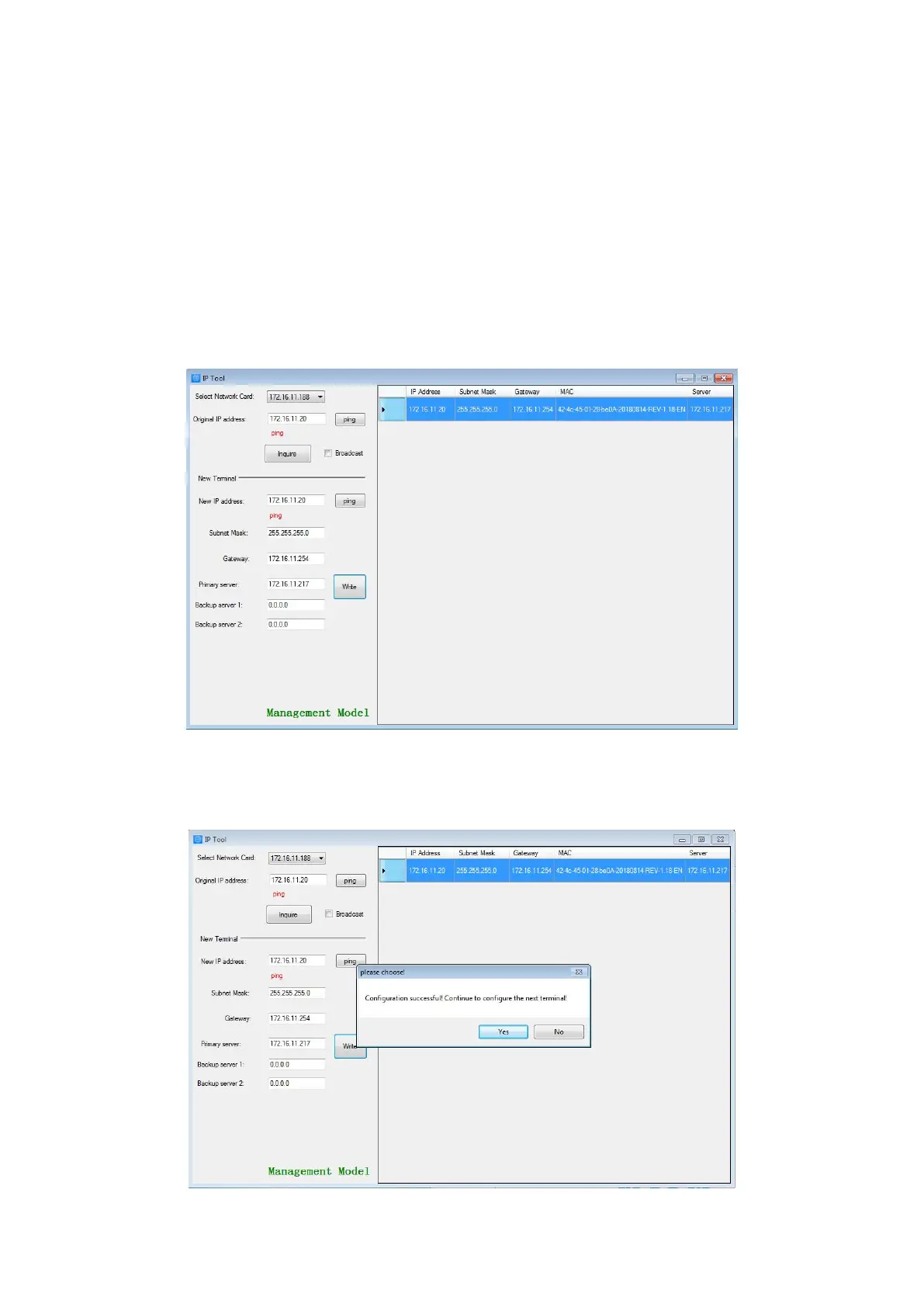

Step 3: In the window of "Terminal Configuration Tool" , fill in correct "IP address", "subnet
mask", "gateway IP" and "server IP", as below:
Step 4: left click on the "write" button, there will be a window prompt after the successful
configuration; after that, left click on the "query" button, the parameters of the terminal will
be re-read by the configuration program, if it display as the same as entered one, means that
the configuration was successful.
