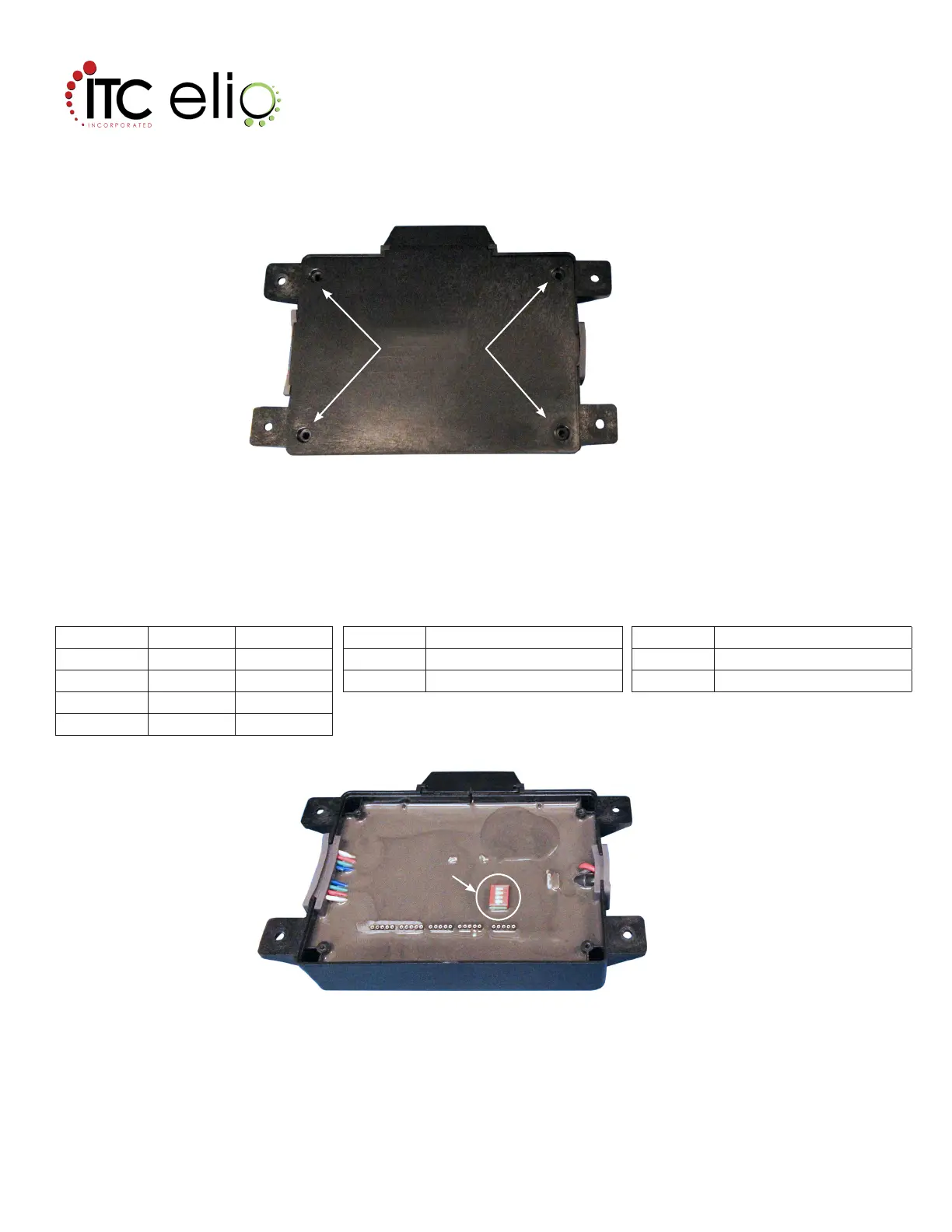

5. CUSTOMIZING YOUR SYSTEM: There are several features that can be selected using the four position dip switches on the back of
the control module. To adjust these switches, rst remove the four screws on the back.
Remove screws
MULTIPLE RGB CONTROLLERS ON SAME CAN
BUS NETWORK:
If you are using more than one controller on a
CAN network, you will need to adjust the CAN
address. Dip switch one and two are used to
select an address.
Switch 1 Switch 2 Address
OFF OFF 0 (Default)
ON OFF 1
OFF ON 2
ON ON 3
SELECT TO POWER UP IN THE ON OR OFF STATE:
Using dip switch four you can select if you
want the controller to power up in the OFF
state when power is applied, or in the ON
state once power is applied.
Switch 4 Power
OFF Power up OFF (default)
ON Power up ON
Dip switch
adjustment
6. DISABLE INPUT LINE (optional): The control module has the ability to turn off zones if an input line to the controller is activated.
Pin 4 of the 6-pin Deutsch connector contains this input line. If the disable line of the 6 pin Deutsch connector (pin 4) is held at the
input voltage (5-24 volts), Zones one and two will be turned off. This feature can be used if you want to deactivate the zone lights
on the outside of the boat when in motion. By default, only zones one and two are turned off. There is no effect on zones three
and four. You can adjust which zones are turned off via a CAN interface display system.
RESET PASS CODE:
If needed, dip switch three can be switched
on and then off to reset the Bluetooth pass
code.
Switch 3 Pass Code
OFF No change
ON Reset pass code
