ITC VersiControl 22500-RGBW Series User Manual

3030 Corporate Grove Dr. • Hudsonville • MI • 49426
Phone: 616-396-1355 • www.itc-us.com • sales@itc-us.com • DOC#: 710-00025 Rev F • 09/20/17

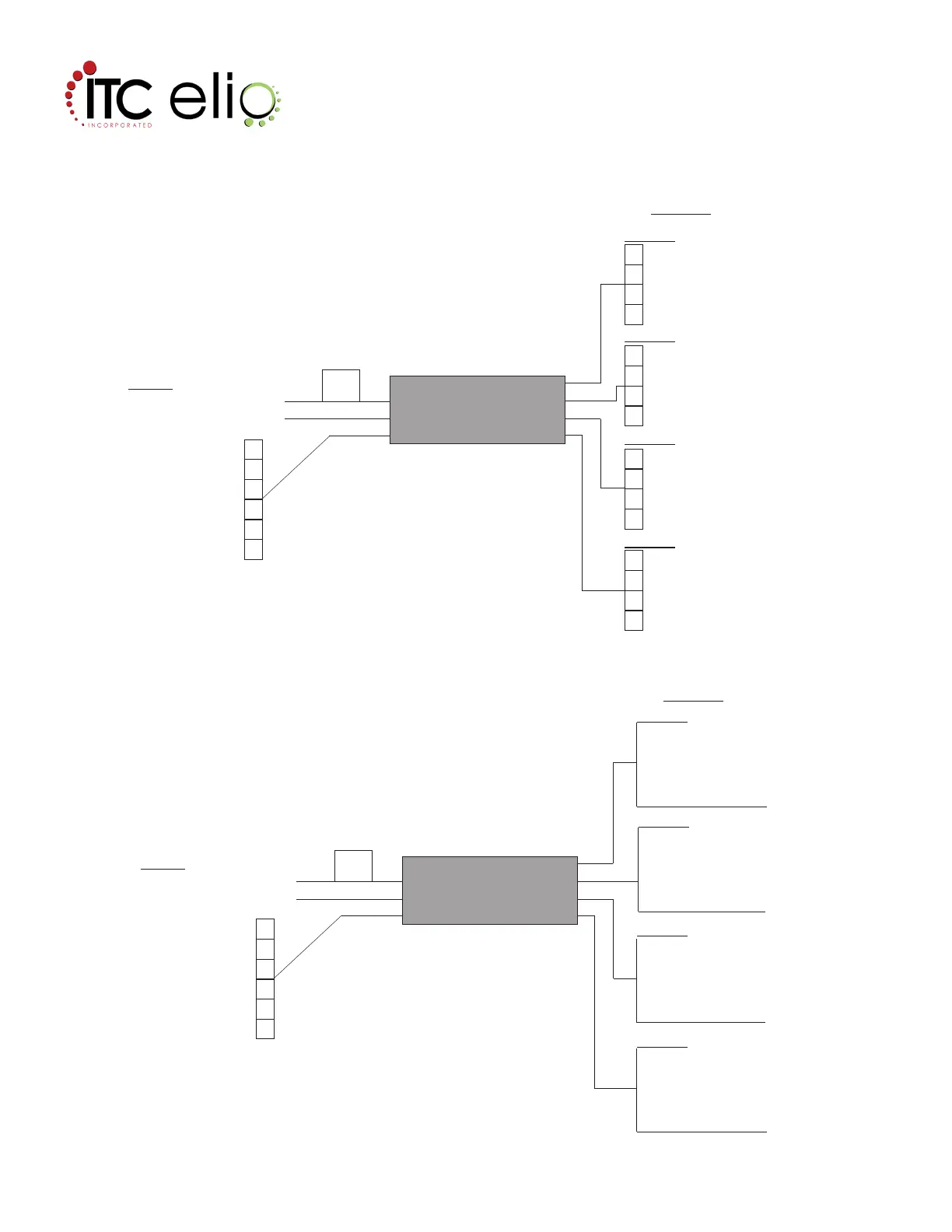

4. WIRING DIAGRAM: Follow the wiring diagram below to wire the module to your system. Note: Maximum replacement fuse size is
25 amps.
Controller
Red - 12-24V DC IN (+)
Black - 12-24V DC IN (-)
(Max 20A)
Inputs
Outputs
Zone 1 - (Max 8A)
Zone 3 - (Max 8A)
Zone 4 - (Max 8A)
Zone 2 - (Max 8A)
Fuse
22500-RGB-XX
1
5
4
3
2
6
V(+)
V(-)
Shield
Signal Line
CAN (+)
CAN (-)
(+) White/Red
Red
Green
Blue
1
4
3
2
(+) White/Red
Red
Green
Blue
1
4
3
2
(+) White/Red
Red
Green
Blue
1
4
3
2
(+) White/Red
Red
Green
Blue
1
4
3
2
*Mating Connector: Deutsch DTM04-6P
*Mating Connector: Deutsch DT04-4P
Controller
Red - 12-24V DC IN (+)
Black - 12-24V DC IN (-)
(Max 20A)
Inputs
Outputs
(+) White/Red
Red
Green
Blue
White
Zone 1 - (Max 8A)
(+) White/Red
Red
Green
Blue
White
Zone 3 - (Max 8A)
(+) White/Red
Red
Green
Blue
White
Zone 4 - (Max 8A)
(+) White/Red
Red
Green
Blue
White
Zone 2 - (Max 8A)
Fuse
22500-RGBW-XX
1
5
4
3
2
6
V(+)
V(-)
Shield
Signal Line
CAN (+)
CAN (-)
*Mating Connector: Deutsch DTM04-6P
