Holeless telescopic jack

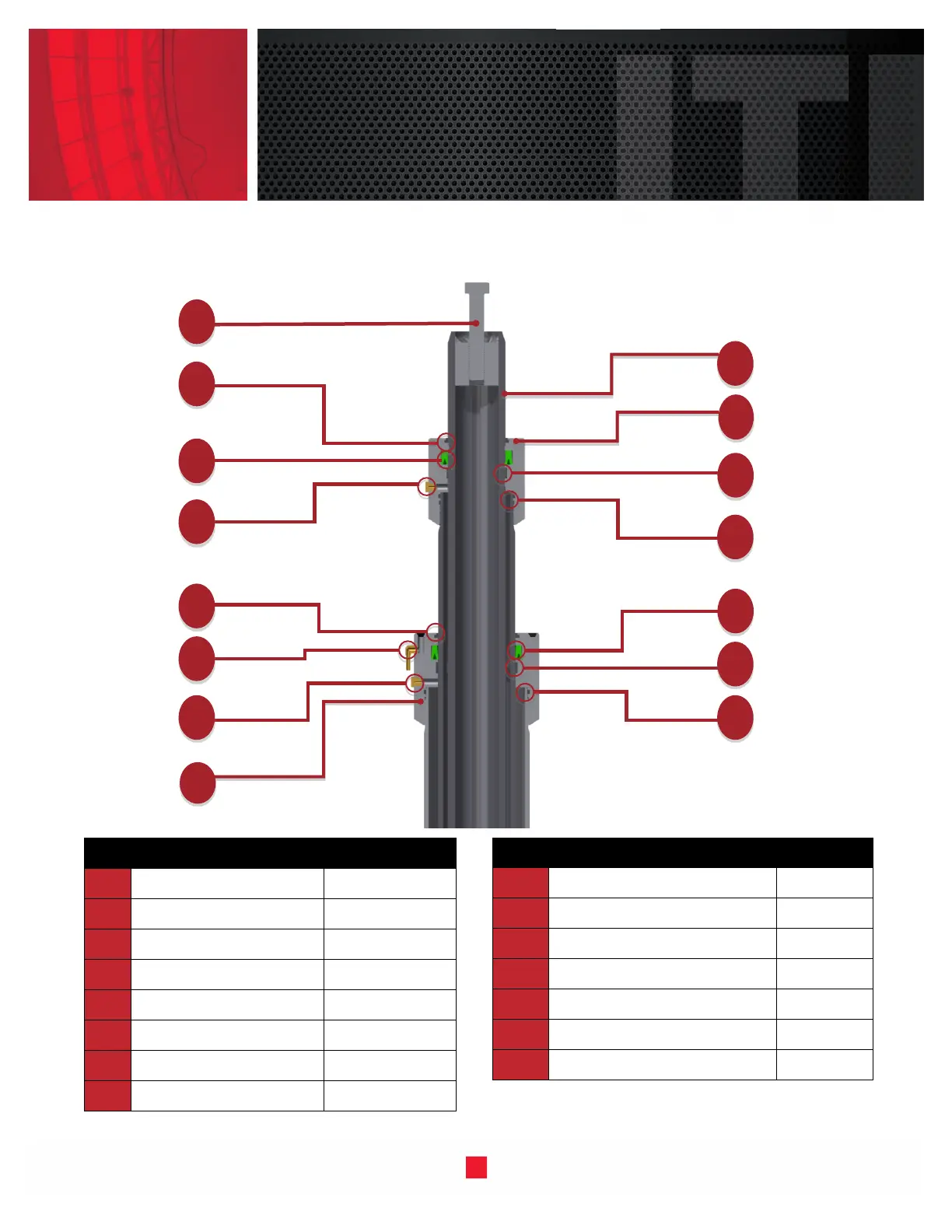

Technical drawing – Head
If more than 2 sections, the components of the first section repeat for the additional sections.
#
Components
Materials
1
Bolt
Steel
2
Wiper (1
st
section)
Urethane
3
Seal (1
st
section)
Urethane
4
Bleeder (1
st
section)
-
5
Wiper (2
nd
section)
Urethane
6
90° coupling (2
nd
section)
-
7
Bleeder (2
nd
section)
-
8
Head (1
st
section)
Cast iron
#
Components
Materials
9
Tube or shaft (1
st
section)
Steel
10
Head (2
nd
section)
Cast iron
11
Wear ring (1
st
section)
Nylon
12
O’ring (1
st
section)
Buna-N
13
Seal (2
nd
section)
Urethane
14
Wear ring (2
nd
section)
Nylon
15
O’ring (2
nd
section)
Buna-N
1
2
3
4
5
6
7
9
11
12
13
14
15
8
10
