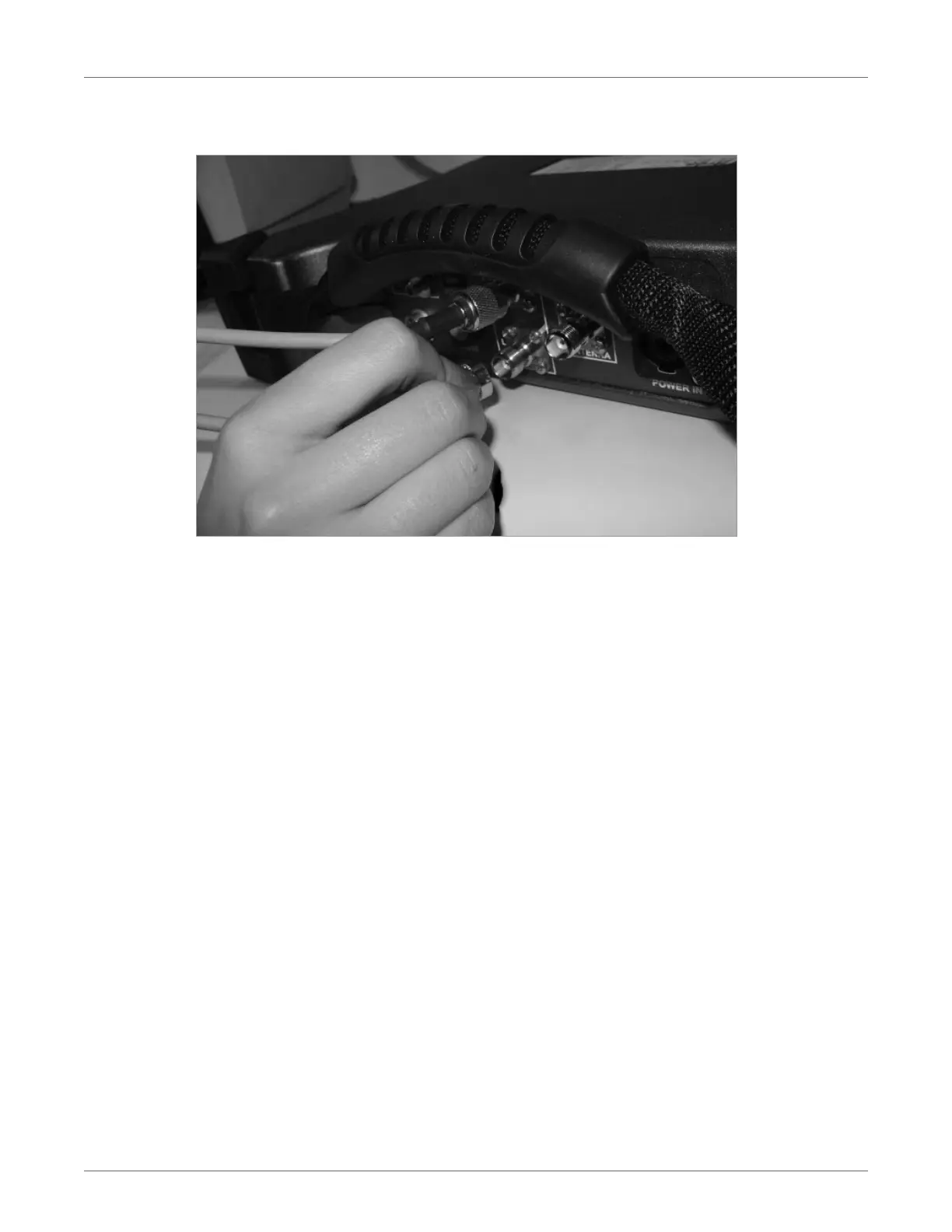

inputs on the MC3 radio.
Connecting the GPS and Data Cables
GPS and meter data is received and transferred between the Mobile Collector radio and the
Mobile Collection computer through a USB cable connecting the vehicle dock to the radio.
Data Cables Connections Table
The following picture shows an MC3 Mobile Collection system (with a laptop secured in a laptop
dock) with all the data cables connected to their respective components.
07 May 2020 815-0207-00 REV 000 Itron, Inc. Page 38 of 44
Vehicle Preparation and Hardware Installation Guide 3 Installing Mobile Collection Components
