Model 227A Dierential Pressure Indicator Section 1

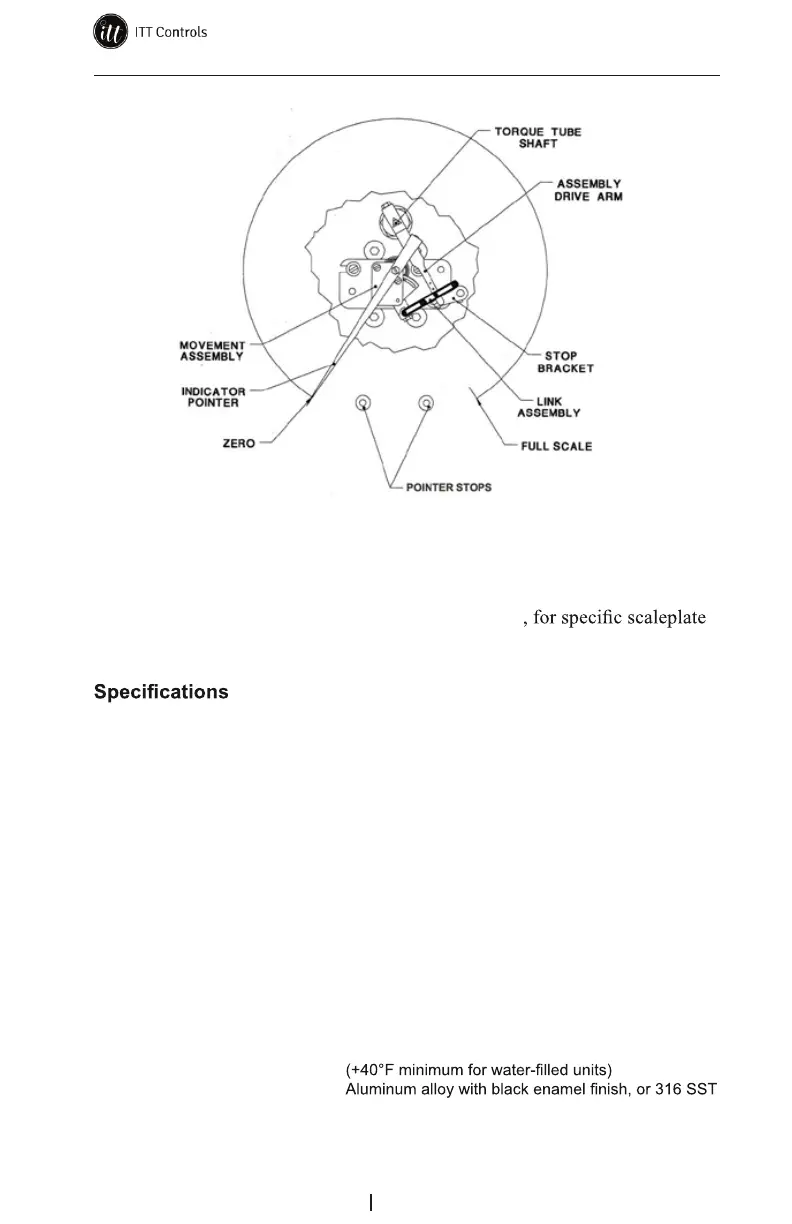

Figure 1.3—Indicator mechanism for inverted case
Because the indicator design affects the readout, only inverted scale plates
may be used with inverted indicators, and only universal scale plates may be
used with universal type units. See Table 4.1, page 17
descriptions and part numbers.
Accuracy (DP Range):
0-30" w.c. to 0-50" w.c.
(0-75 mbar to 0-124 mbar) ............. ±0.75% of full scale
0-51" w.c. to 0-60 psi
(0-127 mbar to 0-4.1 bar) ............... ±0.5% of full scale
0-61 psi to 0-150 psi
(0-4.2 bar to 0-10.3 bar) ................. ±0.75% of full scale
0-151 psi to 0-400 psi
(0-10.4 bar to 0-27.6 bar) ............... ±1.0% of full scale
0-401 psi to 0-600 psi
(0-27.7 bar to 0-41.3 bar) ............... ±1.5% of full scale
0-601 psi to 0-1,000 psi
(0-41.4 bar to 0-69 bar) .................. ±4.0% of full scale
Dial Size ......................................... 6 inches (150 mm)
Temperature Limits ......................... -40 °F/°C to +180°F (+82°C)
Indicator Case ................................
Lens ................................................ Polycarbonate (shatterproof glass for SST version)
O-rings (Wetted) ............................. Viton or EPT
