Installation of castors
4

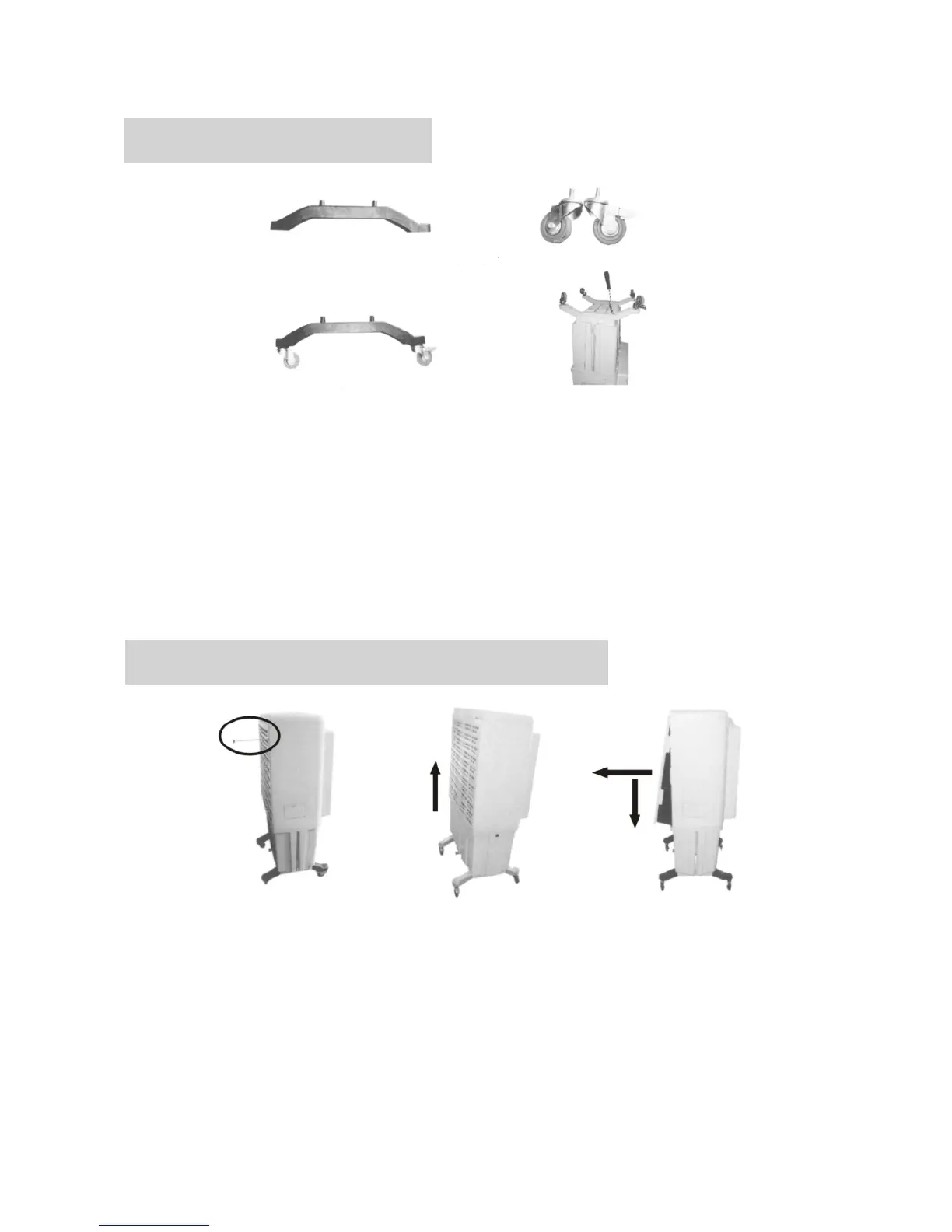

Fig 4
Fig 5
Fig 6
1.Take the two castors with brake, two castors without brake and 2pcs of castor frames
(Fig 4).
2. Fix the castors into the M10 hole on castor frames. Castors with brake should be
installed on the front side of the unit (Fig 5).
3. Fix the castor frames on the bottom of the water tank using a philipps screwdriver
with the provided screws. Tighten the screws with a screwdriver (Fig 6).
Installation of castors
Removing the screw cover plate
1.Loosen 4 screws on rear cover plate (Fig 7).
2. Lift the air filter mesh and raise the rear cover plate by hand (Fig 8).
3. Pull and lift out the rear cover plate to remove it (Fig 9).
Fig 7
Fig 8
Fig 9
