Iwata CM14EC-A - Technical Specifications; Main Technical Parameters; Diagrams and Schematics; Electrical Schematic Diagram

II. Main Technical Parameters
Model
CM14EC-A
Rated voltage
220V
Rated frequency
60Hz
Rated power
70W
Capacity of water
11L
Wind speed
6.4--7.8 m/s
Evaporation capacity
900mL/h
Energy efficiency
9.0W/W
Noise
≤65db
Type
Air cooler

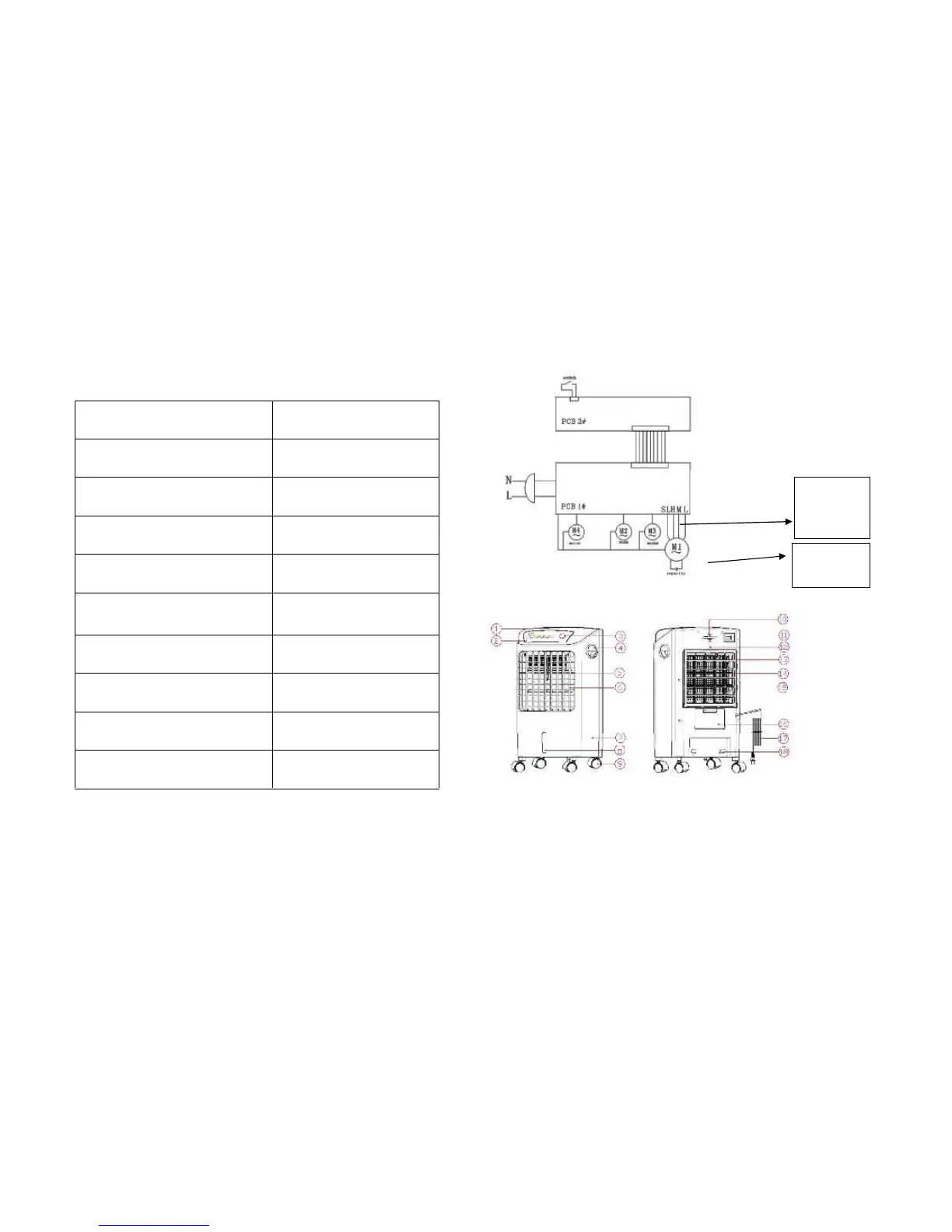

III. Electrical Schematic Diagram
IV. Product Diagram
1.Cover 2. Buttons 3.Control panel 4. Handle 5.Vertical blades
6. Horizontal blades 7. Water tank 8. Water position indicator
9. Caster wheels 10. Remote control holder 11. On-off switch
12. Remote control 13. Air filter14. Curtain holder 15. Curtain
16. Water ingress 17. Wire 18. Wire holder
capacitor
M4.motor
M3.motor
M2.pump
