EOMs Operating Manual
Ref. Ed. 0 – 08/02/2021 6
Fig. 7

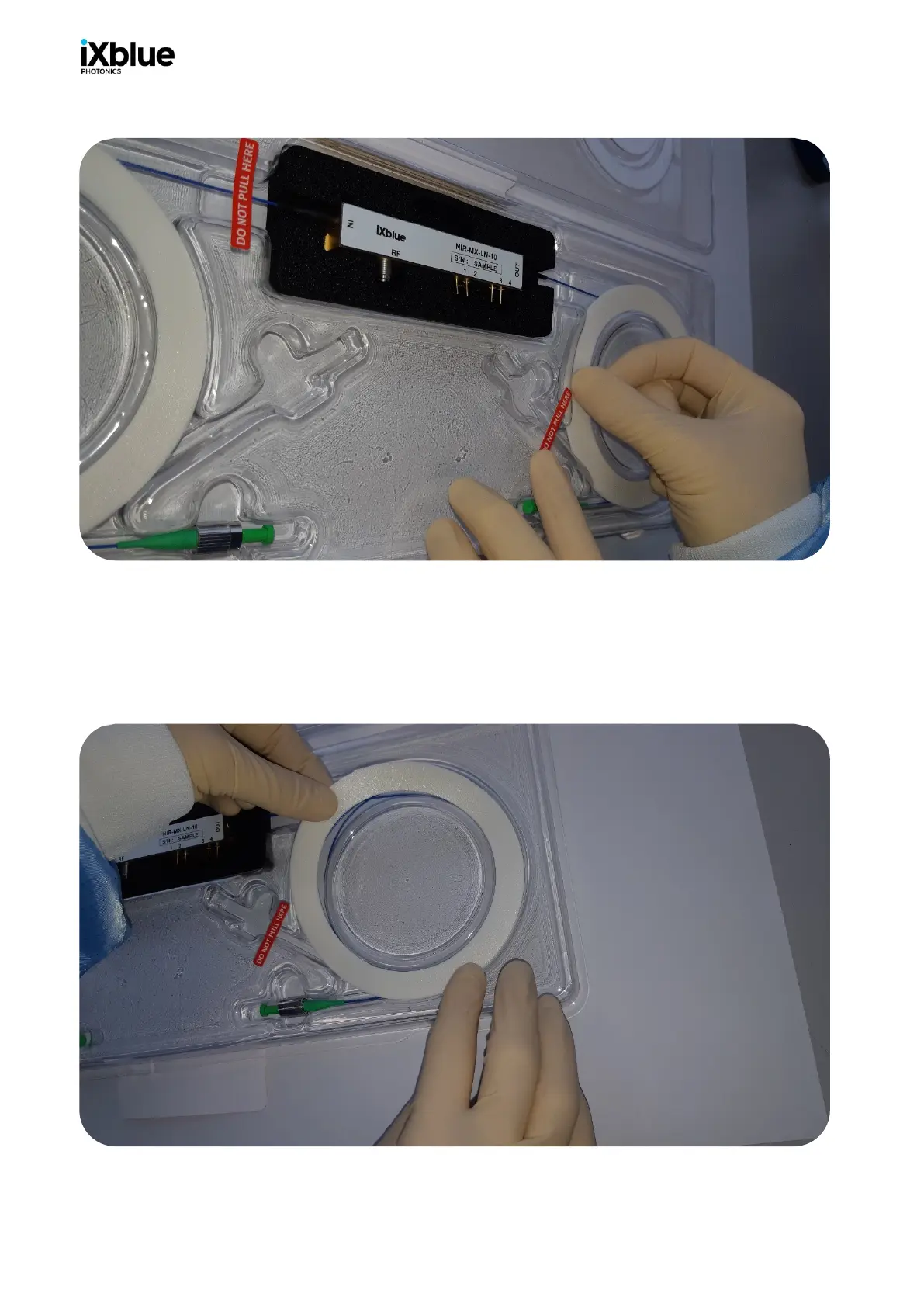

5) Remove the optical connectors and take the fibers out of their tray. Lift and hold the modulator
by its housing. Delicately pull it out, paying attention to the optical fibers: electrical pins and
RF connector.
Fig. 8
