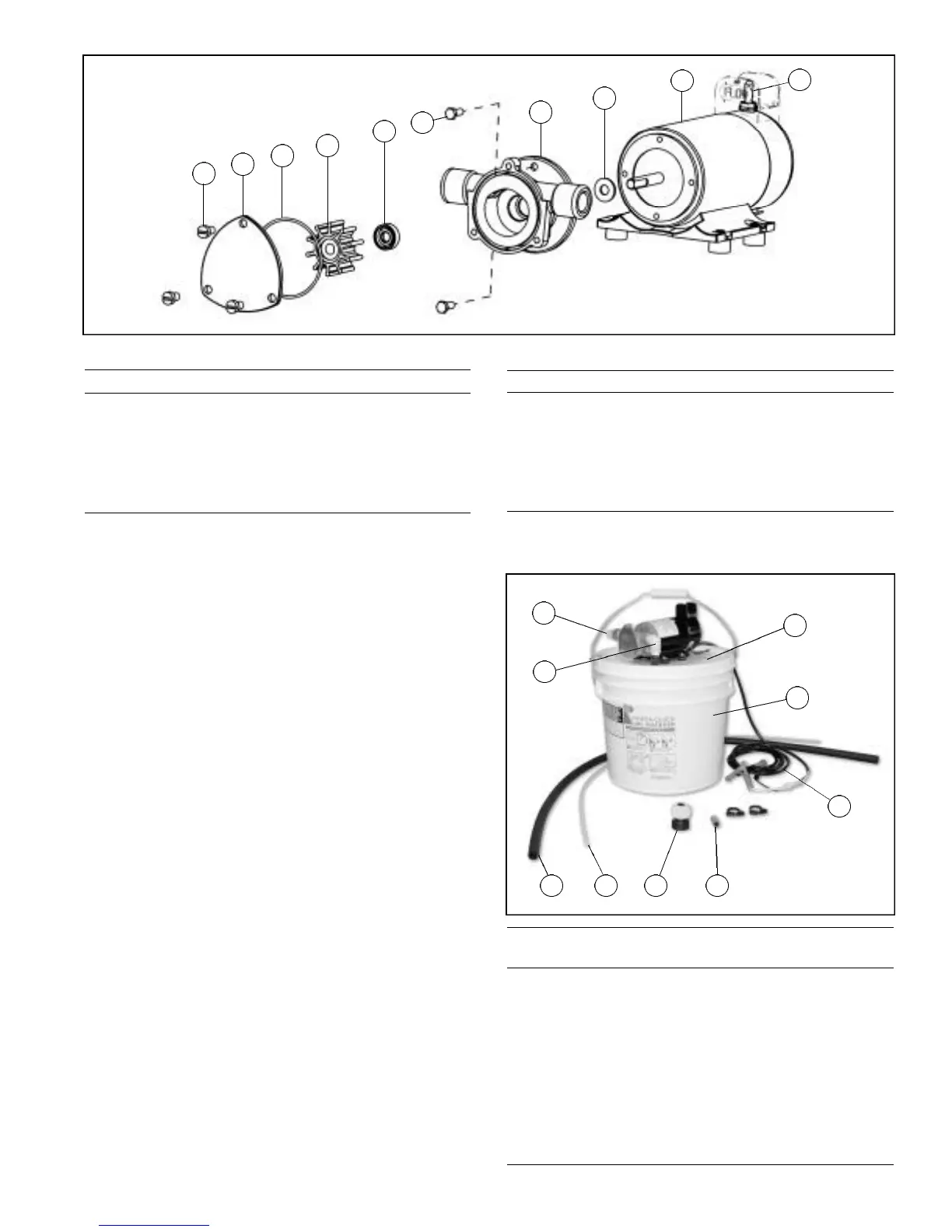

PARTS LIST
Key Description Part No.
1 Screw Kit (includes 3 screws) 91004-0090
2 End Cover 18647-0000
3 O-Ring* 18753-0660
4 Impeller* 9200-0023
5 Sea* 18753-0384
6 Screw Kit (includes 3 screws) 98019-0020
DISASSEMBLY
1. Remove end cover screws, end cover and O-ring.
2. Withdraw impeller.
3. Loosen and remove two slotted hex screws, which
attach body to motor.
4. Tap body lightly between ports and remove body
from motor.
5. With a 1/2" diameter dowel, push against the shaft
seal from back (motor) side of the body to dislodge
it from the seal bore.
NOTE: Do not tamper with or disassemble motor.
ASSEMBLY
1. Lubricate seal with water and position it in seal bore
with lip, or hollowed-out side of seal, pointing
towards the impeller bore. With a 1/2" diameter
dowel, push against the shaft seal into its bore until
it contacts the bottom.
2. Lubricate motor shaft and install body on motor.
3. Lubricate impeller bore and, aligning flat in impeller
with flat on motor shaft, install impeller with clock-
wise rotary motion.
4. Install O-ring, end cover and screws.
Key Description Part No.
7 Body 18646-0000
8 Slinger 6342-0000
9 Motor: 12 Volt, EMC 18753-0067
24 Volt, EMC 18753-0636
10 Switch Polarity Reversing 18753-0652
Service Kit 90061-0053
*
Parts contained in Service Kit.
3
4
2
1
5
6
7
8
9
10
