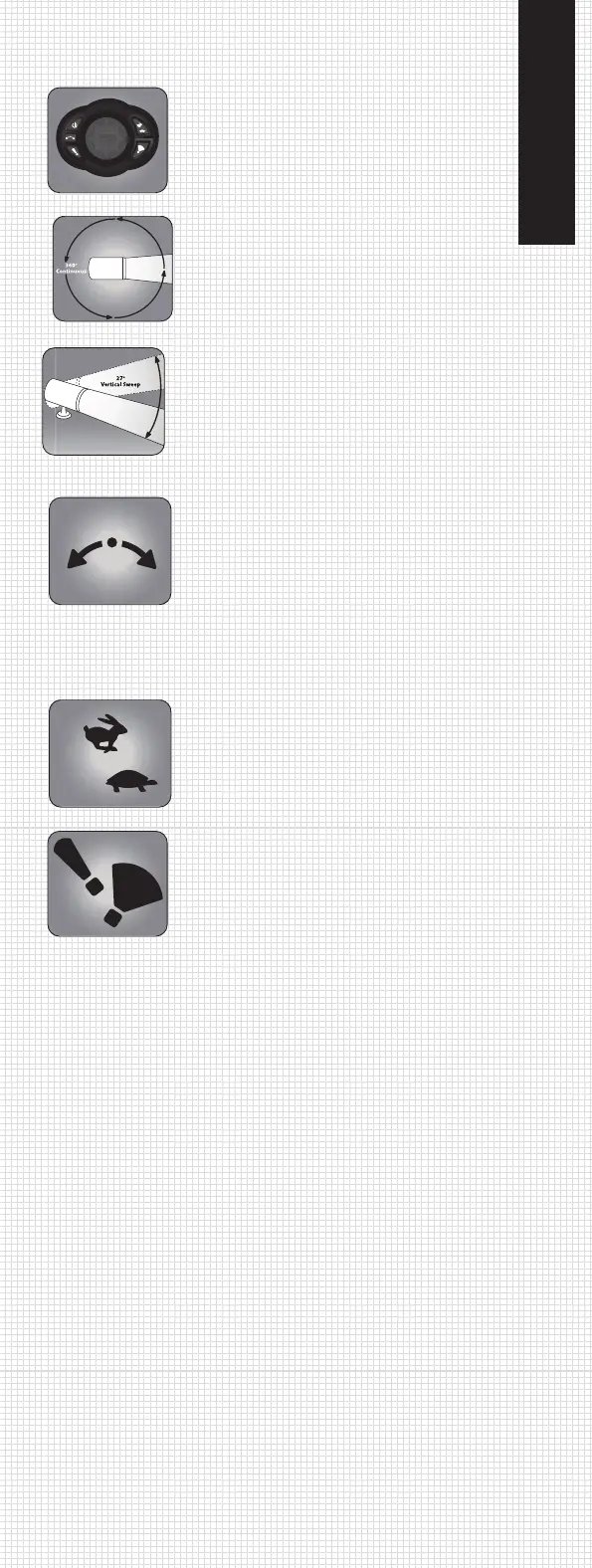

SEARCHLIGHT FUNCTION AND OPERATION
8-Way Controller
The 8 way controller gives faste times to
target than 4-way controllers by moving
across all diagonals.
Horizontal Range
The horizontal range for this light is a
continuous 360 degrees.
Vertical Range
The vertical range for this light is 27
degrees. Nine from the center line to full
up and 18 from centerline to full down.
BLK
425
embossed on control pad
embossed on case
size to match arc of case
icons are also
included as AI
symbols (white)
Auto Sweep
With the light on in either fast or slow
mode, the light will continuously sweep the
light 10 degrees each side of the initial
target spot. If the light is in fast mode, it will
automatically place the unit into slow mode.
Simply press the auto sweep button again
to finish the cycle. The light will return to its
initial starting point and the directional
controls will become available for use
again.
BLK
425
embossed on control pad
embossed on case
size to match arc of case
icons are also
included as AI
symbols (white)
Speed
The 233SL has the option of running all
motion axis in FAST or SLOW mode. For
fast simply hit the Hare button and for slow,
the Tortoise Button.
BLK
425
embossed on control pad
embossed on case
size to match arc of case
icons are also
included as AI
symbols (white)
BLK
425
embossed on control pad
embossed on case
size to match arc of case
icons are also
included as AI
symbols (white)
Spot / Flood
The spot and flood buttons allow the beam
configuration to change from a spot to a
flood, or any beam configuration between
these two extreme limits. Simply hold one
of the buttons down until you reach the
desired beam configuration. For full spot or
flood, hold the spot or flood button down
until it comes to a complete stop.
WIRELESS RANGE PERFORMANCE
The 233SL wireless controllers are tested in real life marine
conditions. The lights are installed in both coach roof and on the bow
locations with primary controllers located in the wheel house and
secondary controllers in various other locations. The results show no
loss of interference between the light and the controller performing as
required. Laboratory testing has shown no loss of performance in line
of sight conditions at 100ft. Additional laboratory testing with the light
and controller communicating through obstructions at 50ft. has
shown no loss of performance.
INSTALLATION & SET UP INSTRUCTIONS
The installation instructions include 3 stages of set up.
They Include:
1: Mounting the light
2: Mounting the contoller
3: “Learning” the controller to the light
For further information on mounting additional control stations,
please see page 3 of this datasheet .
