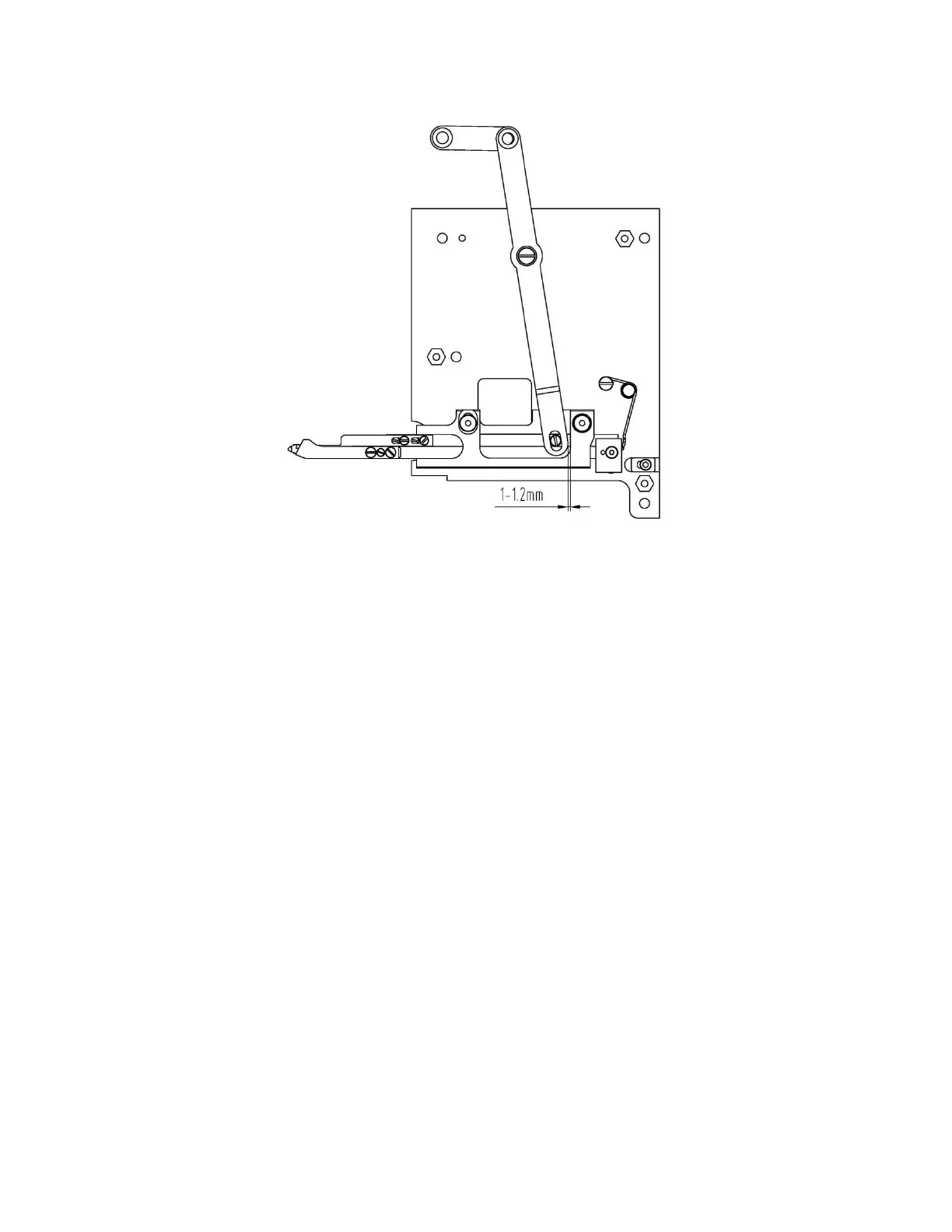

图 4（Figure4）
2、下切刀前后位置的调整(under the knife position adjustment)
当下切刀组件由初始位置向左运动，动刀刀尖运动到弯针处，约在弯针宽度中
心，前后 1/2 位置（图 5），调整时可通过松开紧定螺钉 1 与 2，使动刀前后移动，
调整刀正确位置（图 6）。The current cutter assembly moves from the initial position to
the left, the moving knife tip moves to the bending needle, about the center of the
bending needle width, the front and back 1/2 position (Fig. 5), and can be adjusted by
loosening the set screws 1 and 2 , Move the knife back and forth and adjust the correct
position of the knife (Figure 6).
