5 CONTROLS
WARNINGS

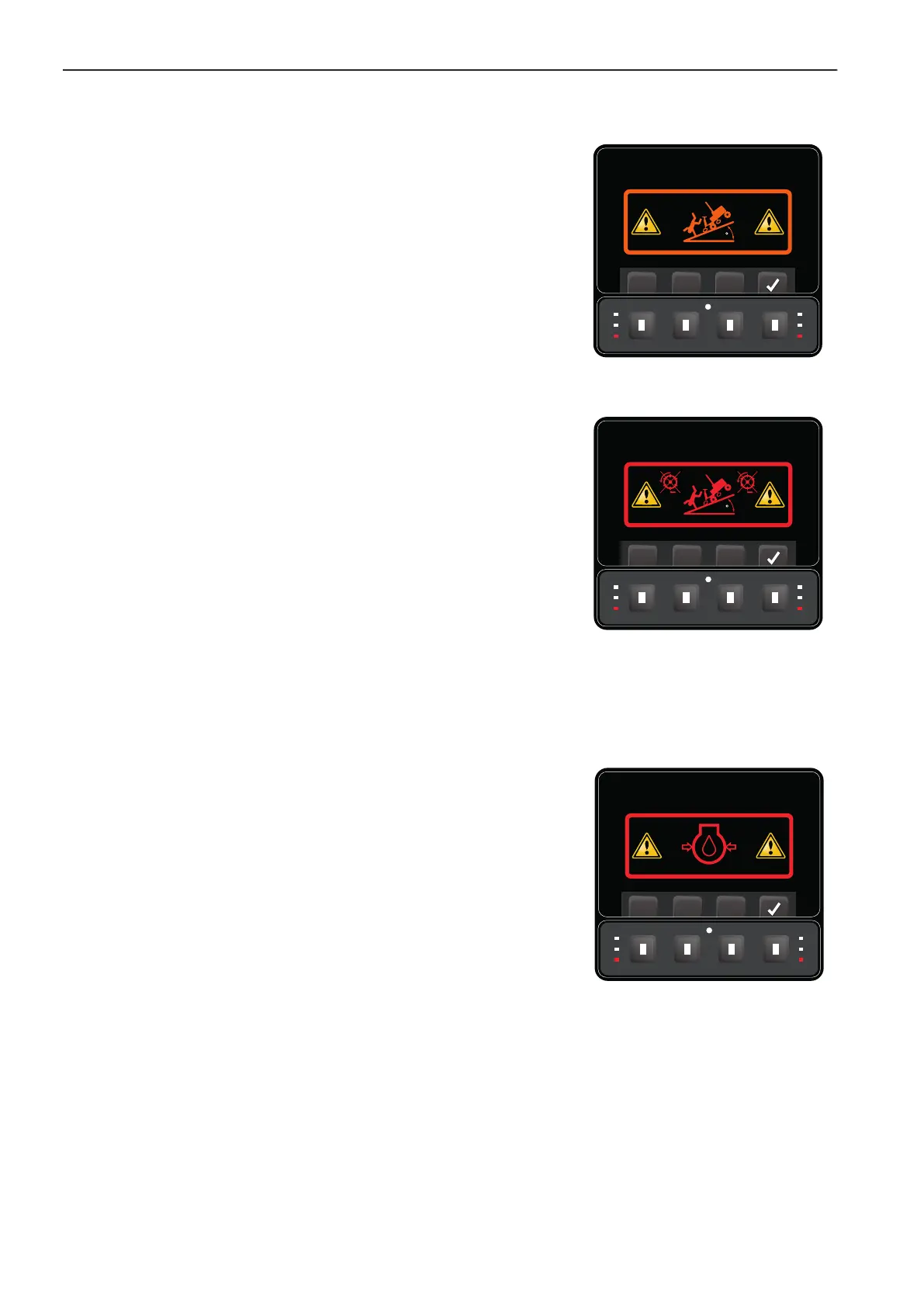

5.2.Z.53 WARNING SLOPE ANGLE - ANGLE ALERT __________________________
During work if the machine is driven on a slope of 16º the screen will display this
warning. This over rides all other information, and will continue until the machine has
been driven to an area with a slope of less than 16º
Press the button below the
to confirm the fault.
5.2.Z.54 WARNING SLOPE ANGLE - INHIBIT LIFT ____________________________
If the slope angle reaches the warning value the screen will display this warning which
indicates that
the cutting unit arms are locked in the current position and will continue to run but
cannot be re engaged. An audible warning will be sounded,
the warning will sound four times every 4 seconds and the red LED’s will flash four times
every 4 seconds. This will continue until the machine has been driven to an area with a
slope less than the warning value.
Angle values - Inhibit lift;
HR600 with ROPS 22 deg
HR600 with Cab 20 deg
HR700 with ROPS 20 deg
HR700 with Cab 19 deg
Press the button below the
to confirm the fault.
5.2.Z.55 WARNING SLOPE ANGLE - INHIBIT CUT ____________________________
If the slope angle reaches the value for inhibit cut the screen will display this warning
indicating that the front cutter deck will be lifted and held above the ground to improve
the stability and all cutting units will stop rotation. An audible warning will be given, the
buzzer will sound four times every 4 seconds and the red LED’s will flash four times
every 4 seconds. This will continue until the machine has been driven to an area with a
slope less than the value for inhibit lift.
Angle values - Inhibit cut:
HR600 with ROPS 25 deg
HR600 with Cab 23 deg
HR700 with ROPS 23 deg
HR700 with Cab 21 deg
Press the button below the
to confirm the fault.
WARNING
The Slope Monitoring System “TST™” (Tilt Sensor Technology) Is A Slope Angle Warning System Only. It
Does Not Increase The Safe Working Slope Beyond That Of The Declared Safe Slope.
