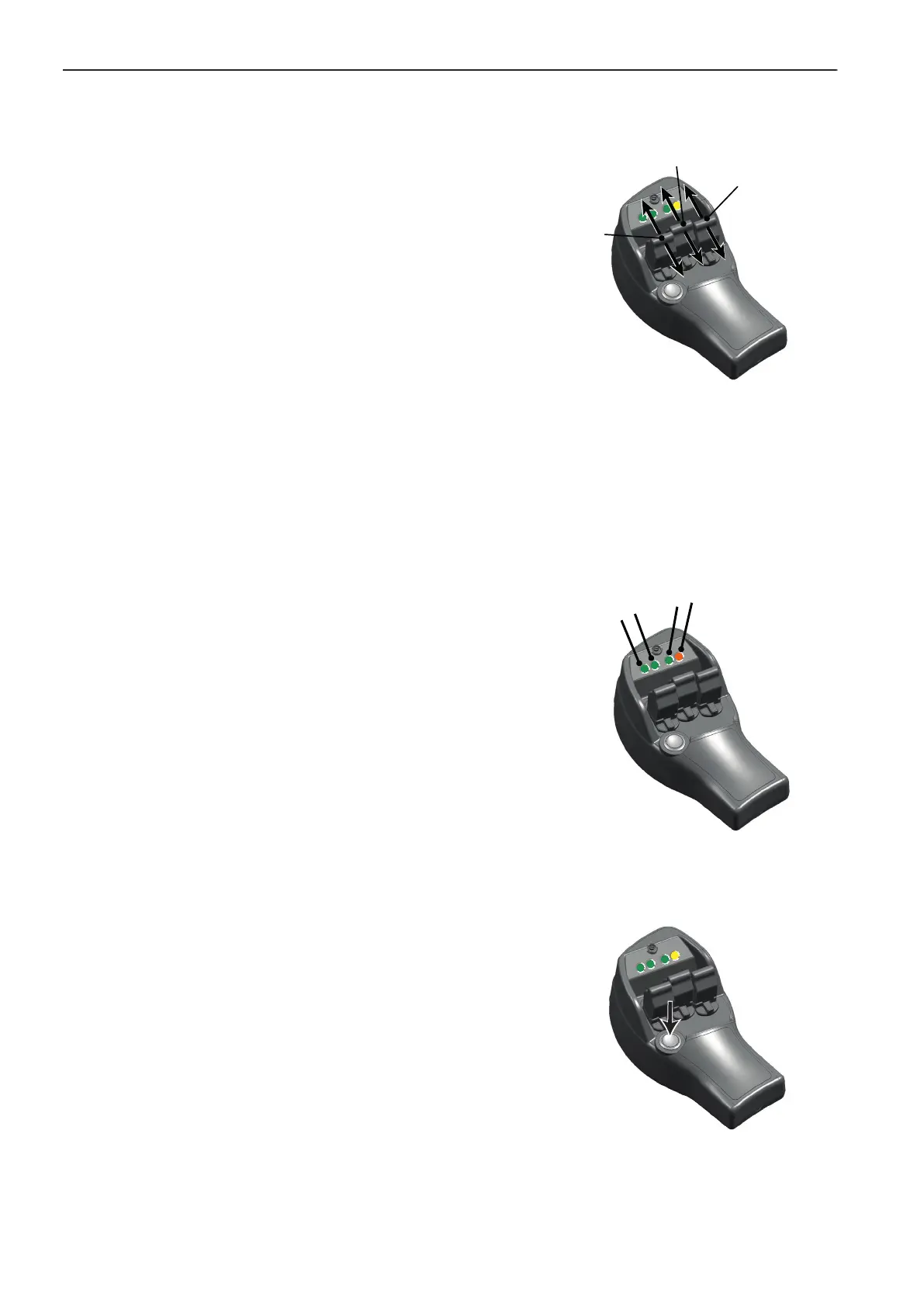

5 CONTROLS
5 8. PARKING BRAKE RELEASE VALVE ____________________________________
The Parking Brake Release Valve is situated under the foot plate, on the right hand
side of chassis plate. The Parking Brake Release Valve is used to release the
parking brake when the engine is not in operation
The Parking brake is released with the handwheel (A) turn completely in after you
release lock wheel (B). Use the hand pump (C) to create enough pressure to release
the brakes (50 to 60 strokes will give 90 seconds of brake release). When complete
rotate the handwheel (A) completely out and lock with wheel (B).
This method of brake release is to recover the vehicle a short distance only and
should be carried out on level ground.
5 9. TOW VALVE ________________________________________________________
The Tow valve is situated on the right hand side of the transmission pump.
1. To push the machine, disengage the parking brake, see section 5.8
2. Turn screw (A) located on the right side of the transmission pump
three complete turns counterclockwise. Set the steering wheel so
that the rear wheels are pointing straight ahead.
3. After pushing the machine, return the parking brake valve, see
section 5.8 to its normal position and screw (A) on the pump to its operating position.
5 10. LIGHTING KIT (OPTIONAL)____________________________________________
Lighting Control Stalk
A Push away from operator to turn the dipped beam head lights on.
B Pull toward operator to flash the headlights.
C Move the stalk up to indicate right turn.
D Move the stalk down to indicate left turn.
E Push the stalk in to sound horn.
NOTE: The Side lights will operate when the ignition is in the run position
When the lighting kit is fitted, a brake light function is available. Rear view mirrors must be fitted If brake lights
are used.
WARNING
THE FREE WHEEL FACILITY IS FOR RECOVERY PURPOSES ONLY.
Do Not Tow The Machine For More Than A Few Metres, Or Allow The Machine To Free Wheel Down
Slopes Even When Unloading Down Ramps.
A
B
C
