en-57
OPERATION 6

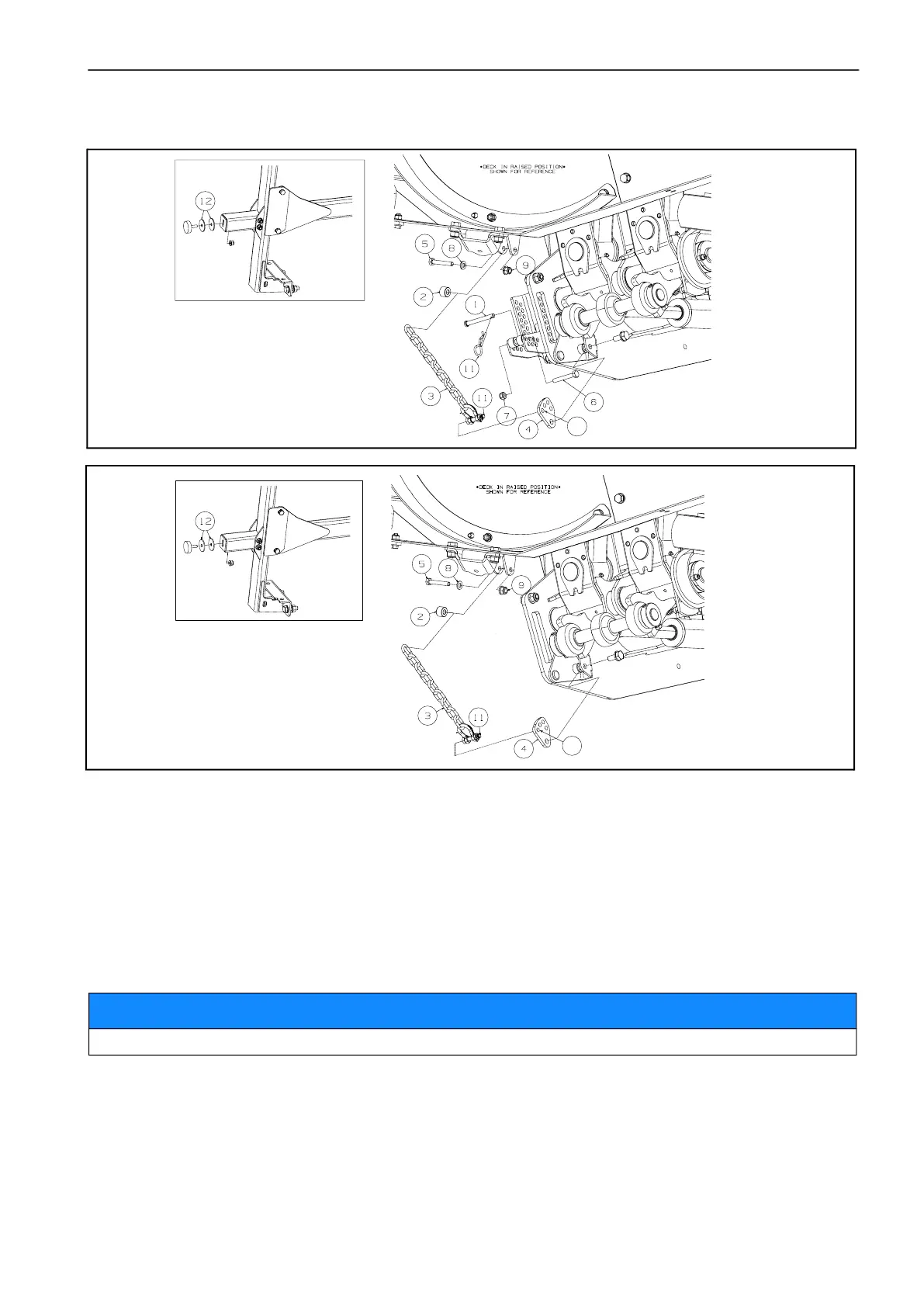

Wing Deck Anti Mohawk Chain Assembly
1. Make sure the hydraulic hoses are plugged. Start the engine and raise the lift arms, stop the engine and
remove the ignition key.
2. Fit Anti Mohawk chain item 3 shackle end to Anti Mohawk Adjustable Plate item 4. Use hole marked X
as datum, make sure the plate is in the orientation shown.
3. Attach end link of Anti Mohawk chain item 3 to Anti Mohawk lower bracket on wing deck using Bolt item
5, Washer item 8, Spacer item 2 and Nut item 9.
4. To adjust tautness of Anti Mohawk Chain move shackle to one of the other holes in Anti Mohawk
adjustable Plate item 4.
5. If after adjusting the Anti Mohawk Chain item 3 is still not as taut as required, use Washer item 12 to
adjust position of bump stop.
NOTE
The Anti Mohawk Chain should be taut when the wing deck is in the raised position.
(HR600 only)
