Jacuzzi J-315 Manual

13
Jacuzzi J-345J-345

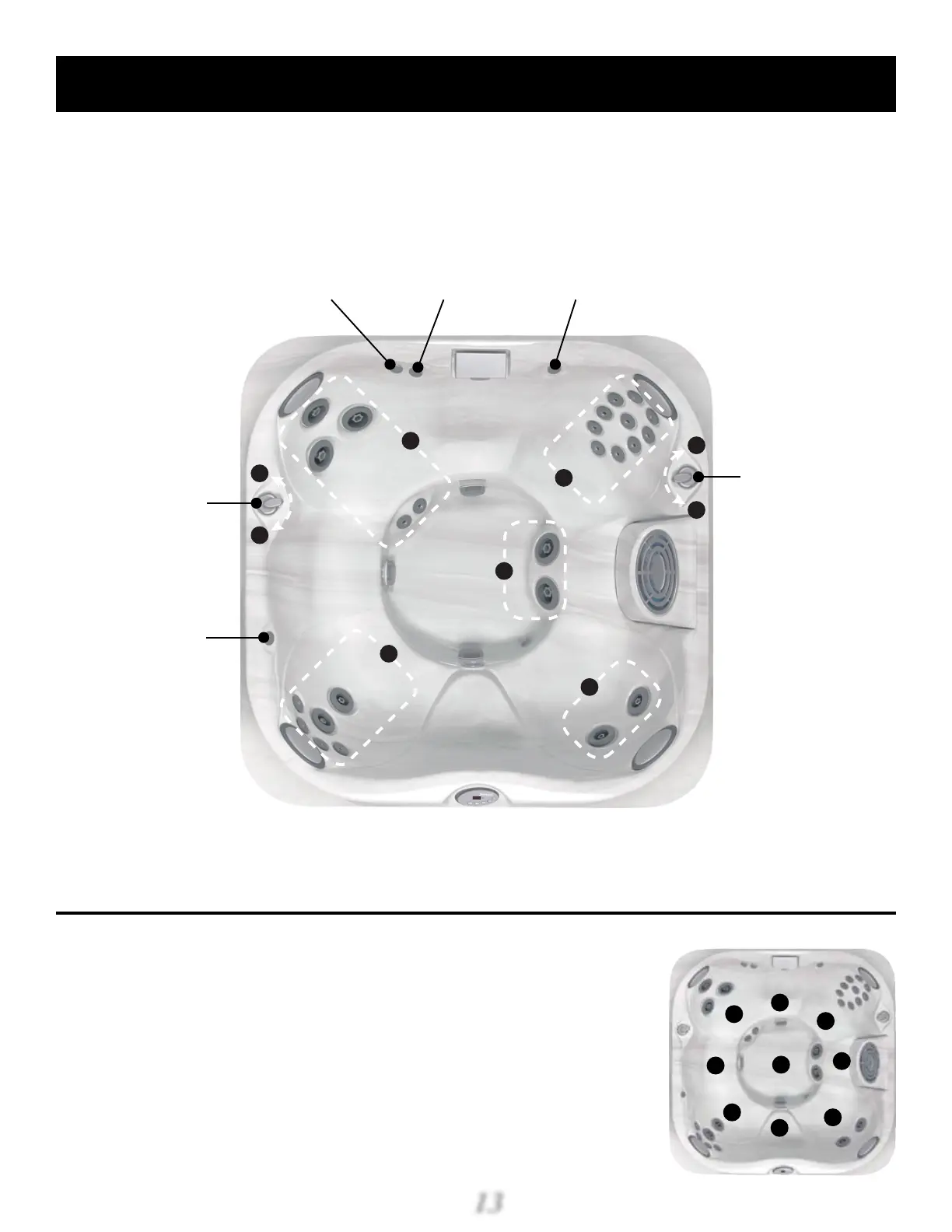

Diverter Valve / Air Control Diagram
Seat Depths
A = 25.50” (64.8cm) F = 19.75” (50.2cm) Listed Dimensions
B = 24.00” (60.1cm) G = 27.00” (58.6cm) Represent Distance from
C = 28.50” (72.4cm) H = 25.75” (65.4cm) Top of Acrylic to Lowest
D = 23.00” (58.4cm) I = 34.00” (86.4cm) Point in Seat.
E = 27.50” (69.9cm)
Dimensions/Specifications Subject to Change Without Notice
Front
Back
Spa Operation Subject to
Change without Notice
A
C
B
D
Diverter Valve 2:
Directs Jet Pump 2
Output Between
Jet Group C or D.
Air Control 2:
Opens / Closes
Air Inlet to Jet
Group C.
Air Control 3:
Opens / Closes
Air Inlet to Jet
Group B.
Air Control 1:
Opens / Closes
Air Inlet to Jet
Group A.
Air Control 4:
Opens / Closes
Air Inlet to Jet
Group D.
A
B
C
D
D
Diverter Valve 1:
Directs Jet Pump 1
Output Between
Jet Group A or B.
H
G
A
C
B
E
D
F
I

Jacuzzi J-315 Specifications

General

Seating Capacity	2-3 Adults
Water Capacity	210 gallons
Pumps	1
Shell Material	Acrylic
Heater	4.0 kW
Lighting	LED
Warranty	5 years
