Jacuzzi J-315

15
Jacuzzi J-335J-335

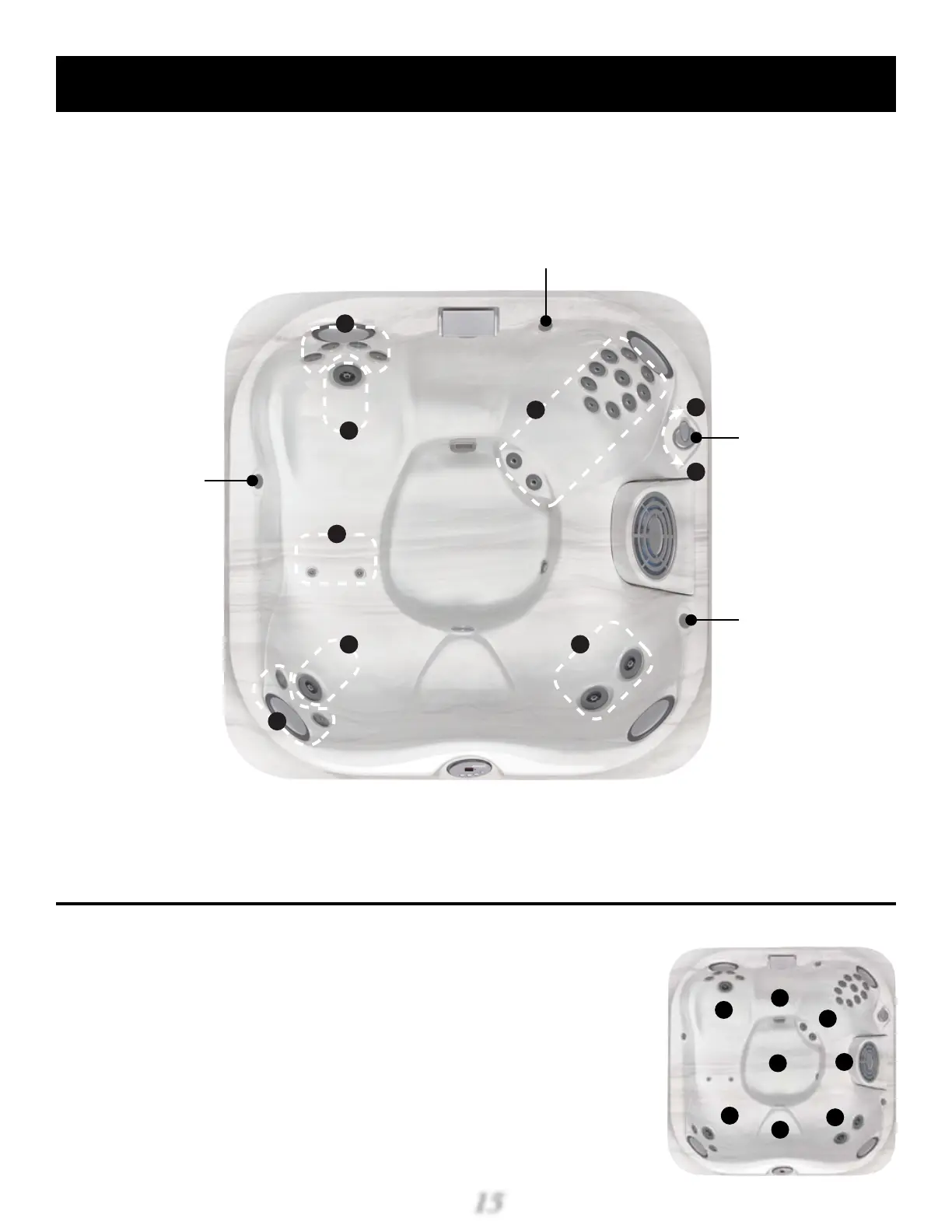

Diverter Valve / Air Control Diagram
Seat Depths
A = 26.50” (67.3cm) F = 19.75” (50.2cm) Listed Dimensions
B = 24.00” (60.1cm) G = 27.00” (68.6cm) Represent Distance from
C = 28.75” (73.0cm) H = 34.00” (86.4cm) Top of Acrylic to Lowest
D = 23.00” (58.4cm) Point in Seat.
E = 27.50” (69.9cm)
Dimensions/Specifications Subject to Change Without Notice
Front
Back
Spa Operation Subject to Change without Notice
B
A
C
Diverter Valve 1:
Directs Jet Pump 1
Output Between
Jet Group A or B.
Air Control 2:
Opens / Closes
Air Inlet to Jet
Group C.
Air Control 3:
Opens / Closes
Air Inlet to Jet
Group A & D.
Air Control 1:
Opens / Closes
Air Inlet to Jet
Group B.
B
A
A
D
D
Pump 1 - Powers Jet Group D at All Times, When Running.
Pump2 - Powers Jet Group C at All Times, When Running.
B
H
G
A
C
B
E
D
F
