Jacuzzi J-315 Manual

17
Jacuzzi J-325J-325

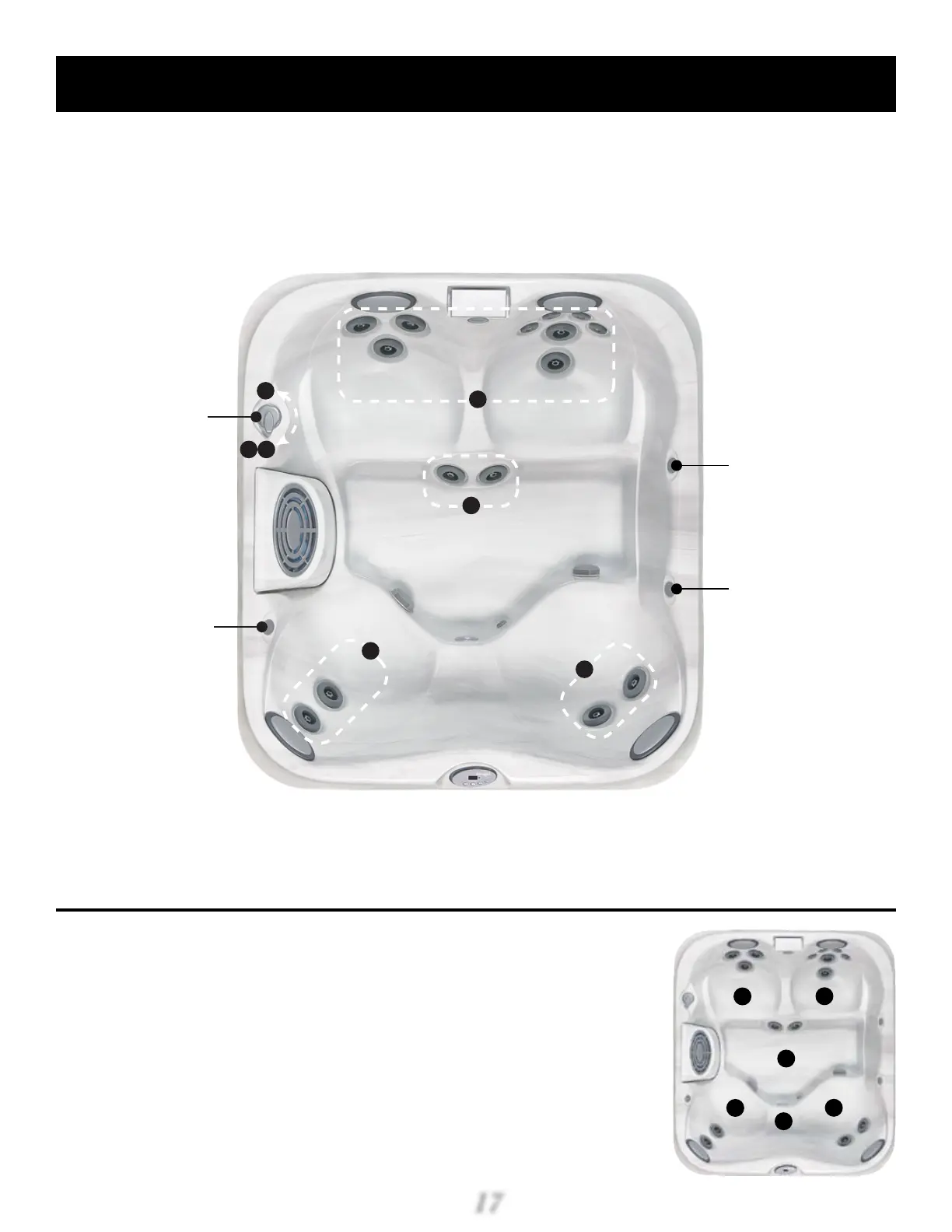

Diverter Valve / Air Control Diagram
Seat Depths
A = 27.00” (68.6cm) Listed Dimensions
B = 27.25” (69.2cm) Represent Distance from
C = 25.75” (65.4cm) Top of Acrylic to Lowest
D = 21.50” (54.6cm) Point in Seat.
E = 28.00” (71.1cm)
F = 31.25” (79.4cm)
Dimensions/Specifications Subject to Change Without Notice
Spa Operation Subject to
Change without Notice
B
Air Control 2:
Opens / Closes
Air Inlet to Jet
Group B.
A
B
Air Control 1:
Opens / Closes
Air Inlet to Jet
Group A.
A
Diverter Valve 1:
Directs Jet Pump1
Output Between
Jet Groups A or
B & C.
B
C
C
Air Control 3:
Opens / Closes
Air Inlet to Jet
Group C.
A
C
B
E
D
F
Front
Back

Jacuzzi J-315 Specifications

General

Seating Capacity	2-3 Adults
Water Capacity	210 gallons
Pumps	1
Shell Material	Acrylic
Heater	4.0 kW
Lighting	LED
Warranty	5 years
