Jacuzzi J-470 Use, Installation And Maintenance Instructions

35
J-470
A. Control Panel
B. Waterfall Control Valve
C. Air Control Valve (4 ea.) Introduce Air to Specified Jet
Groups
D. Optional Audio System Speaker (4 ea.)
E. Adjustable Pillows (4 ea.)
F. Cup Holder (4 ea.)
G. Massage Selectors (2 ea.) Controls Specified Jet Groups
H. Waterfalls (2 ea.)
I. FX Jets (6 ea.)
J. ProClearTM Plus Polishing Filter Bag
K. ProClearTM Floating Skimmer And Filter Cartridge with In-
tegrated Chemical Dispenser.
L. NX Jets (2 ea.) And MX2 Jets (3 ea.)
M. FX2 Jets (2 ea.)
N. NX Jets (2 ea.) And RX Jets (10 ea.)
O. FX2 Jet
P. Lighted Seat Logo
Q. Footwell Filter Suction Covers (3 ea.)
R. Bottom Filter Suction Cover
S. Waterfall Filtration Return
T. FX Calf Jets (2 ea.)
U. FX Footwell Jets (4 ea.)
V. IX suction jet (lighted)
W. Drain/heater input/optional ozone return fitting
X. Suction jet flow control valve (lighted)
Y. Optional Audio System Receiver
Z. FX Jets (4 ea.) FX2 Jets (2 ea.)
AA. iPod connector

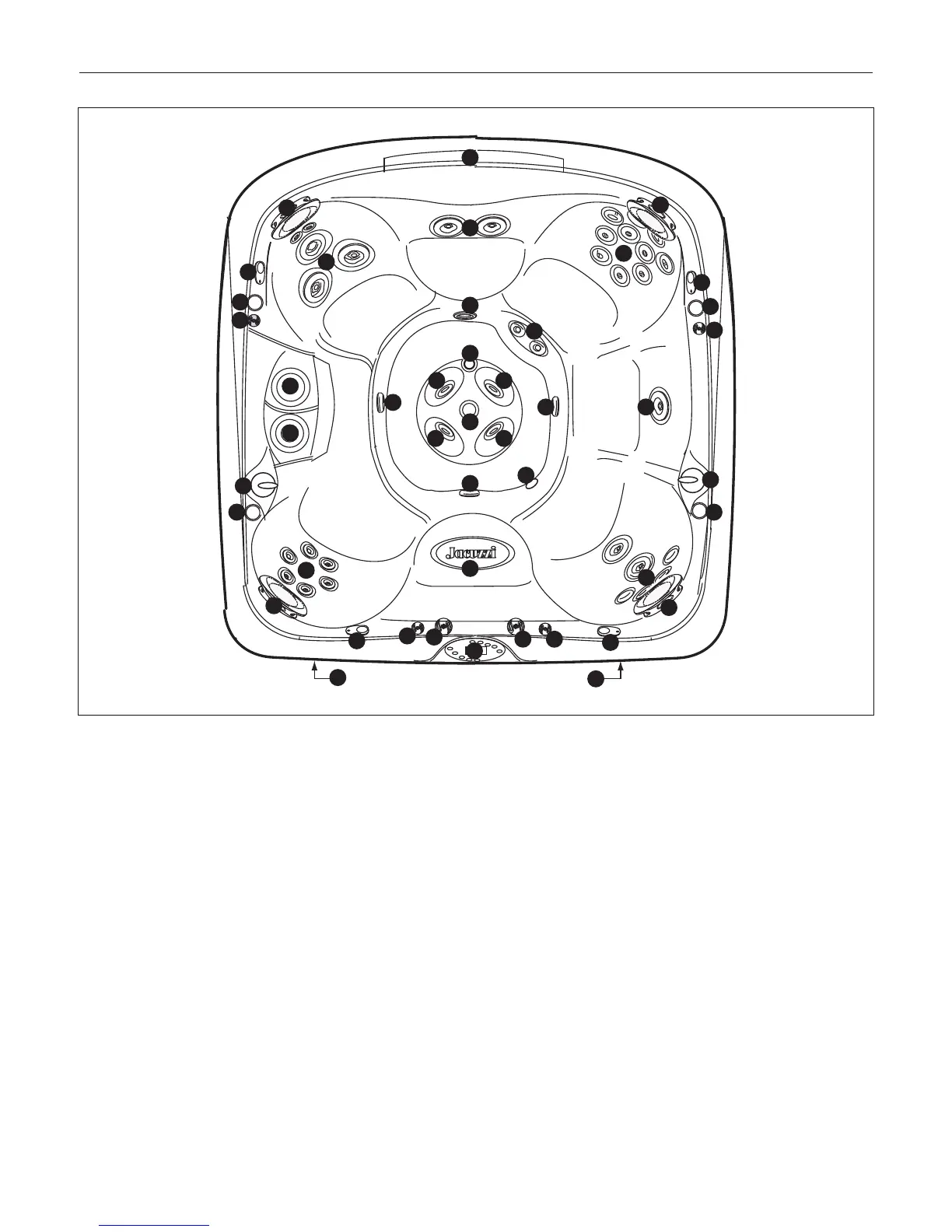

CHARACTERISTICS AND CONTROLS J-470
A
B
C
D
E
I
J
K
G
C
D
E
L
M
H
E
E
D
Z
D
G
F
F
F
F
N
O
S
R
P
X
C
V
Y AA
U U
UU
Q
Q
Q
T
W
C

Jacuzzi J-470 Specifications

General

Pumps	2
Waterfalls	2
Shell Material	Acrylic
Cabinet Material	Synthetic
Dimensions	38 in
Water Capacity	450 gallons
Lighting	LED lighting system
Warranty	5 years
