Jacuzzi J-470 Use, Installation And Maintenance Instructions

34

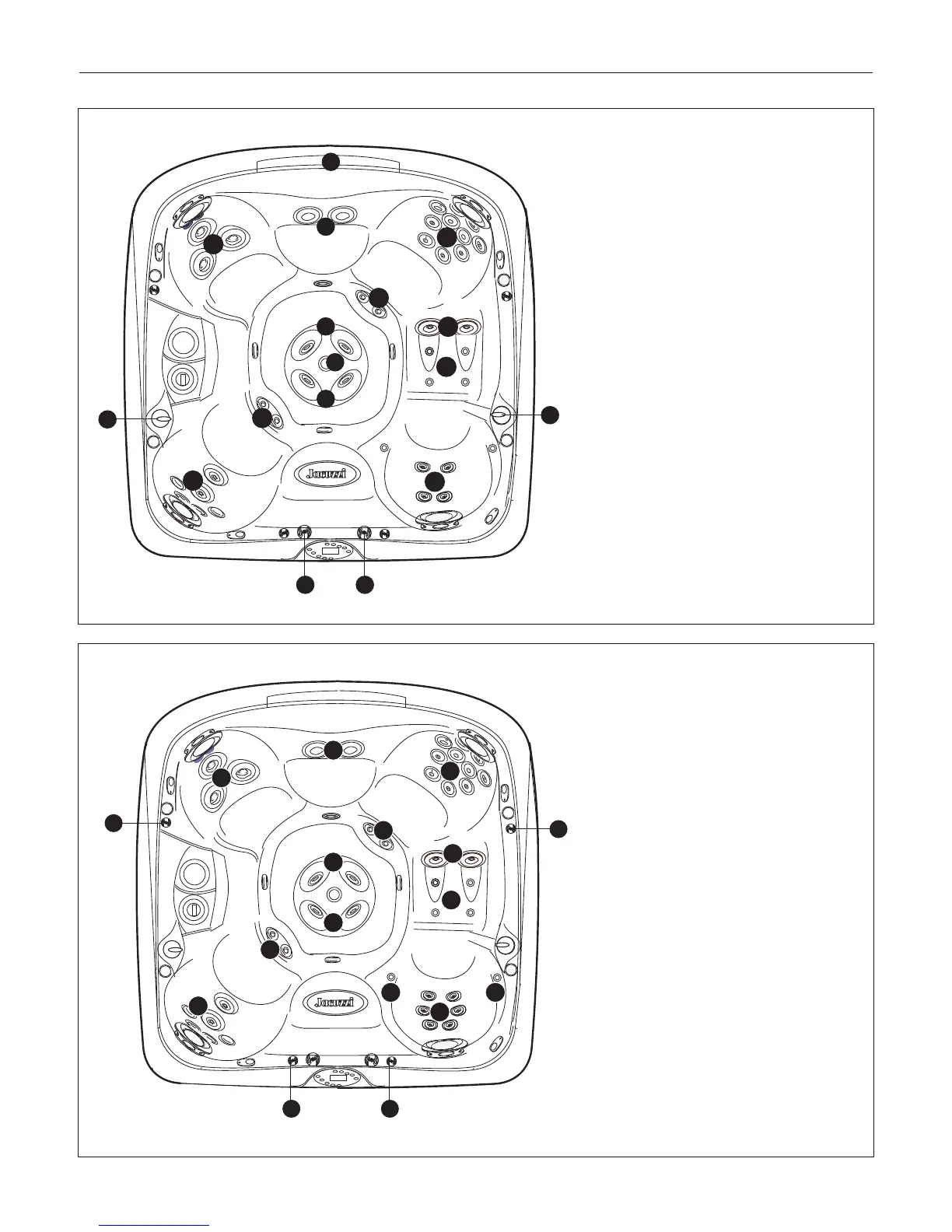

JET/AIR CONTROLS J-480
1a
1a
1b
2b
2b
2a
2a
2a
1
3
3
5
5
5
2
4
4
1
1
2
2
2
2
3
4
4
44
4
3
1
2
3
4
J-480
Massage Selectors (1-2)
• Massage selector 1 diverts pump 2 output
between jets groups 1a-1b.
• Massage selector 2 diverts pump 1 output
between jet groups 2a-2b.
Waterfall Selector (3)
• Waterfall selector 3 controls circulation
pump output to waterfalls.
Massage Selector (4)
• Massage selector 4 controls pump 1 out-
put to footwell IX Jet.
Jets Without Massage Selector
Controls (5)
• Jets 5 are always on when jets pump 2 is
running.
J-480
Air Controls Operation
• Rotate air controls 1-4 to add air to des-
ignated jet groups.
• The centre jets of well IX carry air continu-
ously when pump 1 is in operation. This jet
is not equipped with an adjustment device.

Jacuzzi J-470 Specifications

General

Pumps	2
Waterfalls	2
Shell Material	Acrylic
Cabinet Material	Synthetic
Dimensions	38 in
Water Capacity	450 gallons
Lighting	LED lighting system
Warranty	5 years
