Page 15
J-400

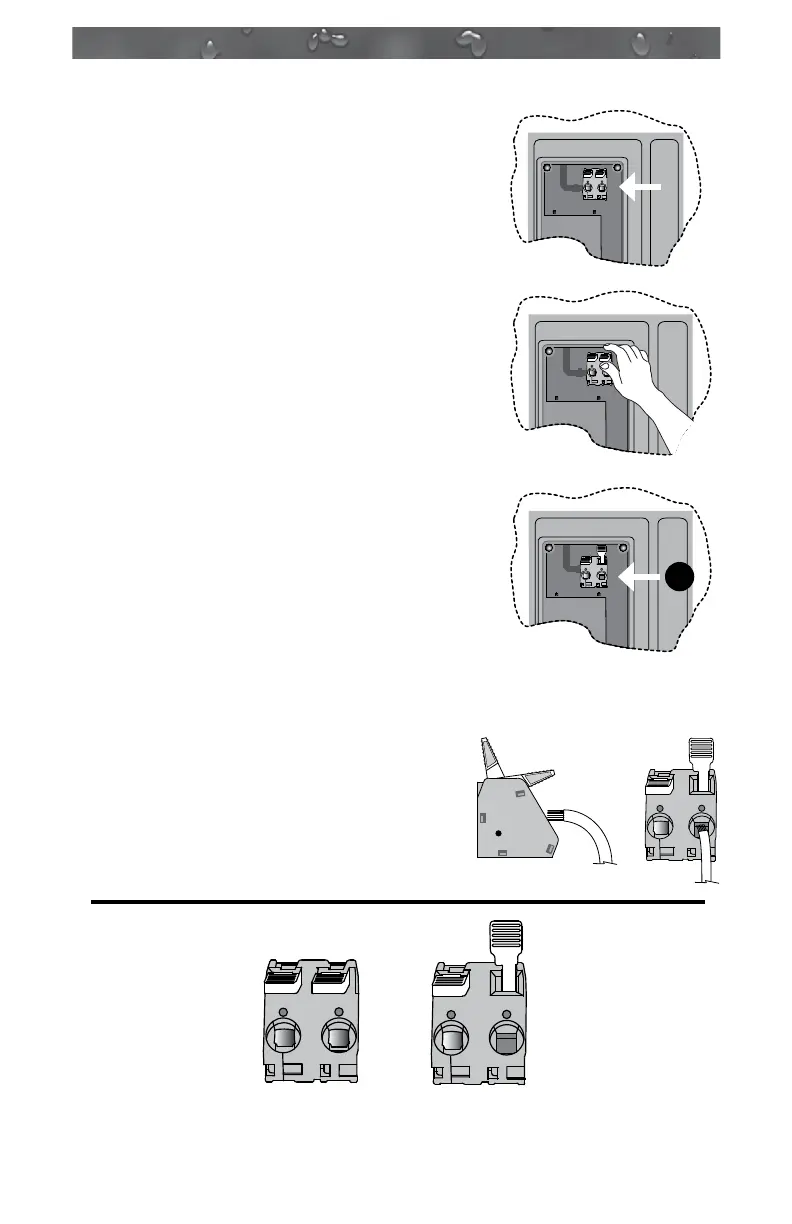

Figure F
1. Remove the access door on the controller.
2. Locate the gray Terminal, towards the top
of the controller, Figure 1.
3. Grab one of the white levers. Push the
lever upward to the open position, Figure
2. If opened correctly the lever will stay in
place and remain open.
4. You will notice that lifting the lever opens
the slot for the power wire, Figure 3.
Insert the power wire into slot A as shown,
Figure 4. Then put down the white lever
and secure wire in place. Gently pull on
wire after installation to verify it is clamped
tightly into terminal.
L2
L1
L2
L1
L2
L1
Figure 1
Figure 2
Figure 3
Side View
Front View
Figure 4
A
Closed tabs on
terminal block
One closed and
one open tab on
terminal block
To Next Page
