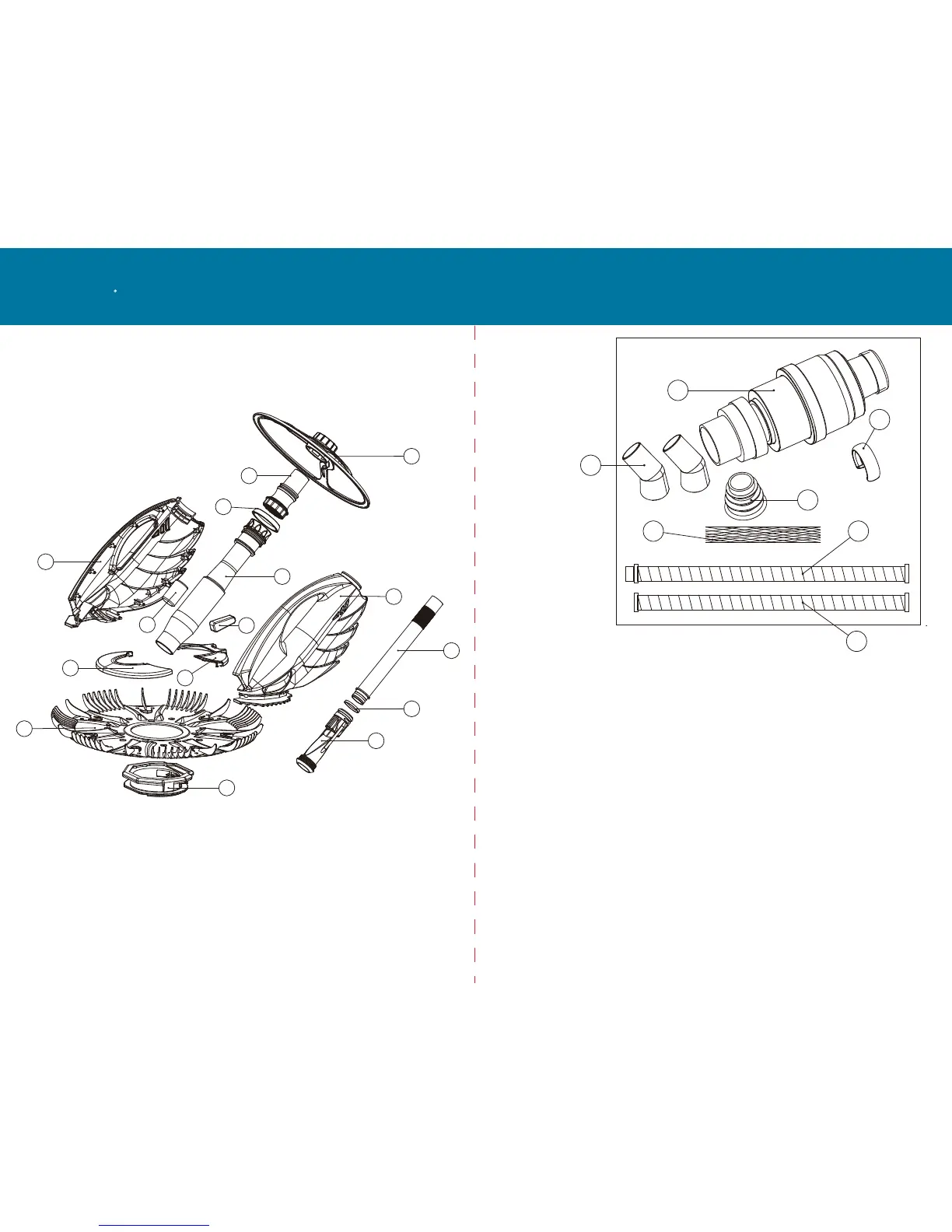

Pool Cleaning System PARTS LIST
CLEANER BODY ASSEMBLY HOSE AND POOL CONNECTION
1 Hose Connector 16 Automatic Regulator Valve
2 Bumper Ring 17 Hose Weight
3 Plastic Ring 18 Elbow Connectors
4 Chamber Assembly 19 Intake Adaptor
5 Left Cleaner Body 20 Hose Protector Sleeve
6 Right Cleaner Body 21 (11) Female/Male Hose Sections
7 Float 22 Female/Female Hose Section
8 Weight
9 Back Housing
10 Front Housing
11 Finned Disc
12 Foot Pad
13 Long Tube
14 Plastic Ring for Diaphragm
15 Diaphragm
5 6
1
3
4
6
2
18
20
16
22
21
19
17
8
9
7
10
5
11
12
15
14
13
J -D300
Jacuzzi
