Electric connections and safety
The installer is responsible for choosing wires with characteristics
and nominal section that are suitable for the specic current input
of the hot tub (see pre-installation instructions).
The cable path, choice of materials and most suitable installa-
tion solutions are left to the professional knowledge and experience
of the installer; it is his responsibility to guarantee and certify the
installation.
XConnect to the terminal block as indicated in the following
wiring diagrams (
2).
IMPORTANT: for Countries where 220-240V voltage is
supplied by a two-phase system (L+L), the connection
has to be made on terminals L1 and N anyway.
NOTE: If the electrical system that powers the SPA consists of
two (or three) phases (+ neutral, 380-415 V 2-3N ~) before con-
necting, remove the jumper/s located near the terminal board.

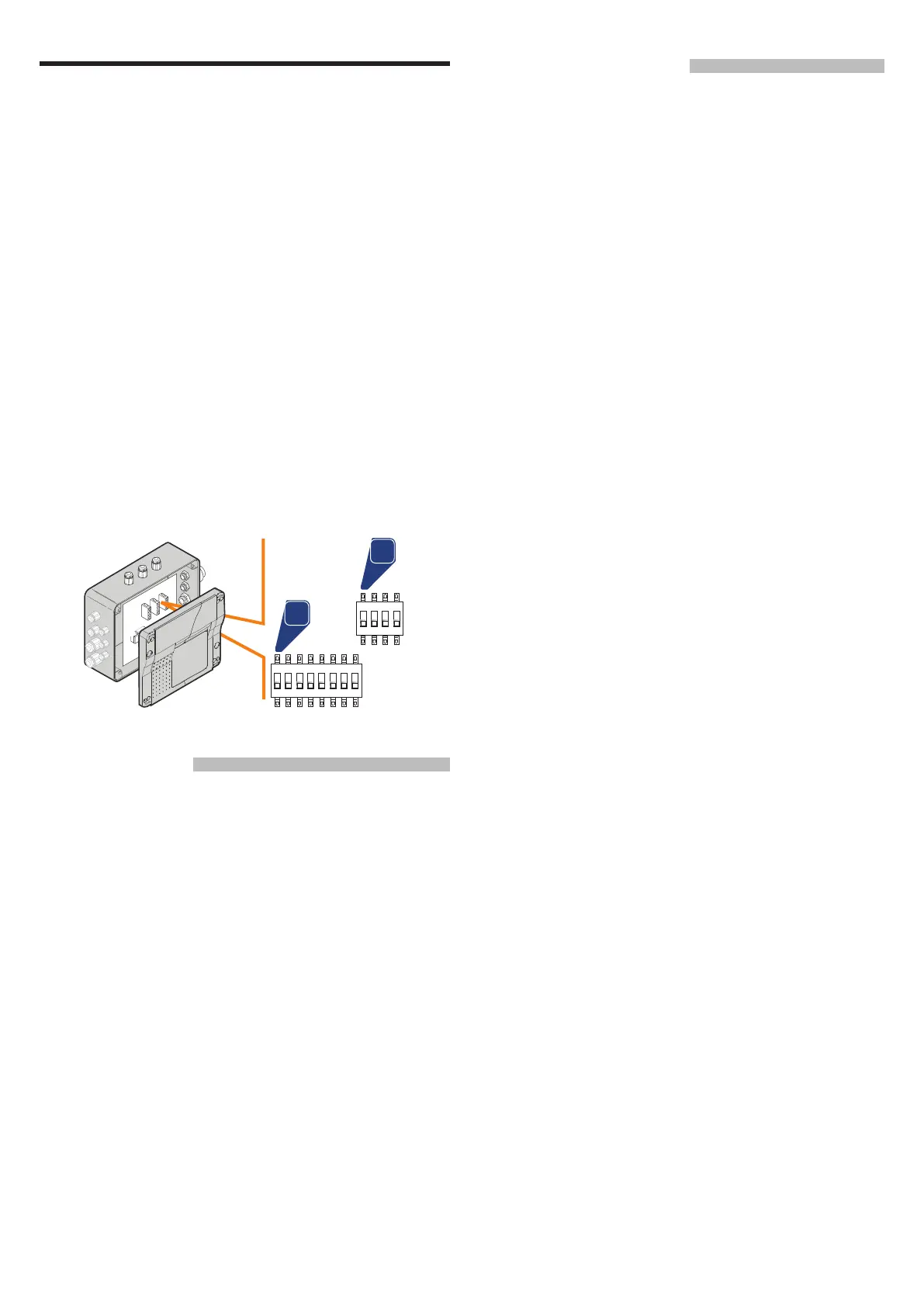

X Check the arrangement of the switches ("dip-switch"), based
on the spa model and the chosen settings.
b1
b2
12345678
ON
1234
ON
QPROFILE "TOP"
X SWITCHING BENCH "b1"
dip switch 1 Electric consumption limitation (OFF=minimum
consumption; ON=maximum consumption).
dip switch 2 Pump 1 (OFF).
dip switch 3 Pump 2 (ON).
dip switch 4 Blower (OFF).
dip switch 5 Filtration pump (OFF).
dip switch 6 AUX contact (OFF).
dip switch 7 Flow switch (OFF).
dip switch 8 Flow detection (OFF).
X SWITCHING BENCH "b2"
dip switch 1 Level (ON).
dip switch 2 This switch disables the ltration pump in relation
to the level sensor (ON).
dip switch 3 Level sensor (OFF).
dip switch 4 Temperature probe (OFF).
QPROFILE "BASE" DSP
X SWITCHING BENCH "b1"
dip switch 1 Electric consumption limitation (OFF=minimum
consumption; ON=maximum consumption).
dip switch 2 Pump 1 (ON).
dip switch 3 Pump 2 (OFF).
dip switch 4 Blower (ON).
dip switch 5 Filtration pump (OFF).
dip switch 6 AUX contact (OFF).
dip switch 7 Flow switch (OFF).
dip switch 8 Flow detection (OFF).
X SWITCHING BENCH "b2"
dip switch 1 Level (ON).
dip switch 2 This switch disables the ltration pump in relation
to the level sensor (ON).
dip switch 3 Level sensor (OFF).
dip switch 4 Temperature probe (OFF).
- To ensure the degree of protection against water as required by
standards, a cable clamp has been installed to make connection
the electrical system easier.
- When installation is complete, the cable clamp and the cover of
the box must be hermetically closed.
Q
MODELS WITH THE “PERFORMANCE” FILTERING UNIT (SPA-PAK):
refer to the respective manual for the connection to the hot tub.
JACUZZI EUROPE S.p.A. denies all responsibility:
If installation is carried out by personnel unqualied and/or unau-
thorised to certify the work carried out.
If current norms and legal provisions regarding the electric systems
of buildings in the country in which installation is carried out are
not complied with.
If the instructions for installation and maintenance contained in
this manual are not followed.
If unsuitable and/or uncertied materials are used for installation.
If the hot tubs are not installed in compliance with the above provisions.
If incorrect operations are performed that reduce the level of protection
of the electrical equipment against water jets, modify the protection
against electrocution due to direct or indirect contact, or produce ab-
normal conditions of insulation, current leakage or overheating.
If any components or parts of the appliance are altered in relation
to the original state when supplied, releasing the Manufacturer
from any liability.
If the appliance is repaired by unauthorised personnel or if spare
parts are used other than the original ones supplied by Jacuzzi Eu-
rope S.p.A.
