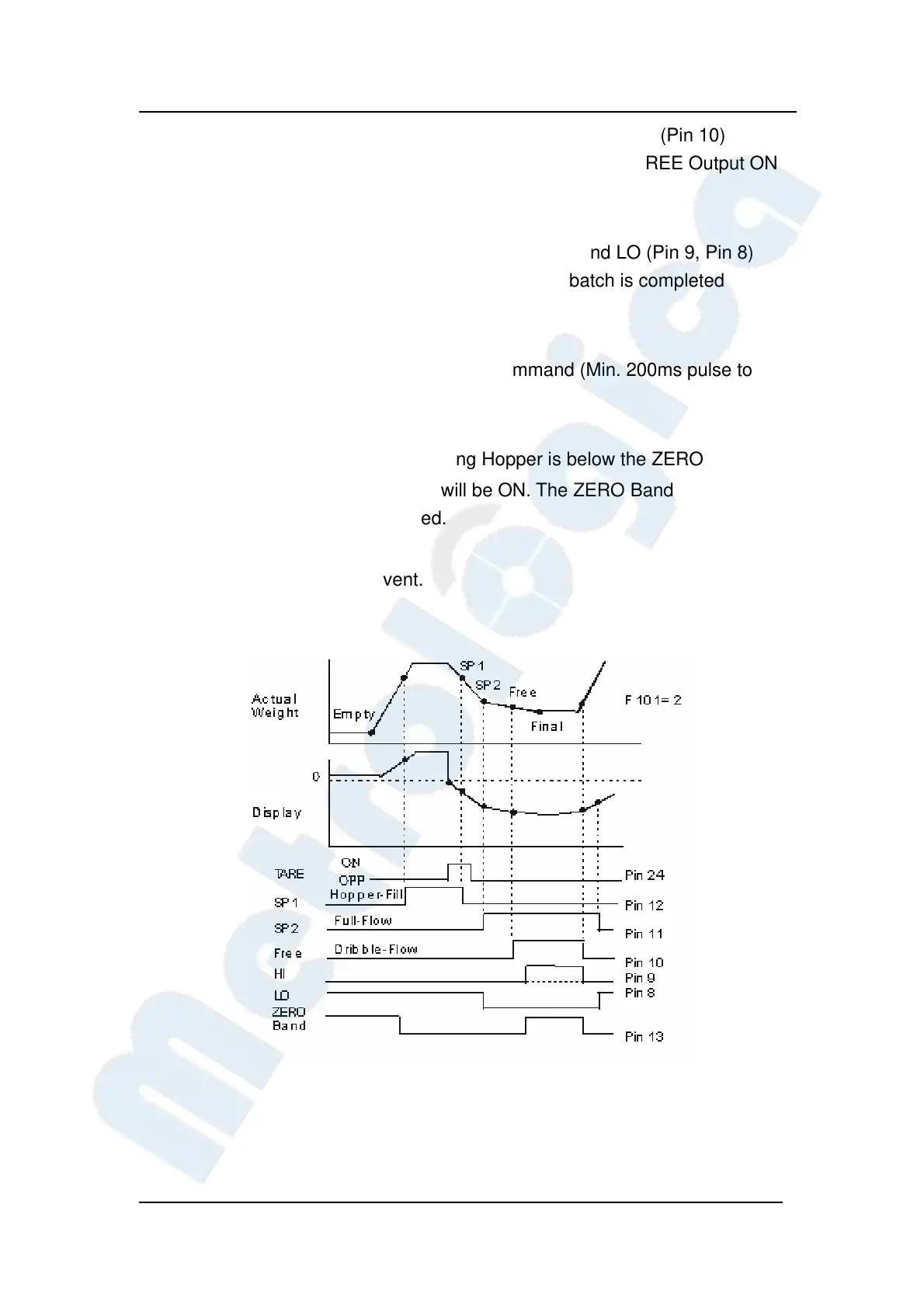

8. When the display reaches "Final - FREE", the FREE Output (Pin 10) signal
will come ON. Closed the Dribble-Flow Gate by using the FREE Output ON
signal.
9. After Free Fall has stopped - check to see if the HI and LO (Pin 9, Pin 8)
signals are OFF. If both outputs are OFF then the batch is completed
correctly.
10. An Automatic Free Fall Compensation Command (Min. 200ms pulse to Pin
21) may be given at this time.
11. If the GROSS weight of the Weighing Hopper is below the ZERO Band
(Pin 13), the ZERO Band Output will be ON. The ZERO Band Output will
refill Weighing Hopper if needed.
12. Ready for next batching event.
