JIF-2002 WEIGHING INDICATOR&CONTROLLER
55
6-1 I/O INTERFACE
FINAL
The Total Weight of the batching event with six-digit value.
 SP1Optional Preliminary, Set Point 1
Close the Weighing Hopper Full Flow Gate with six-digit value.
 SP2 Preliminary, Set Point 2
Close the Weighing Hopper Medium Flow Gate with six-digit value.
 FREE FALL
Close the Weighing Hopper Dribble Flow Gate with six-digit value.
 HIOver Limit
Please enter six-digit Over Limit Value NET weight > Final + Over Limit
Value
 LOUnder Limit
Please enter six-digit Under Limit Value NET weight < Final - Under Limit
Value

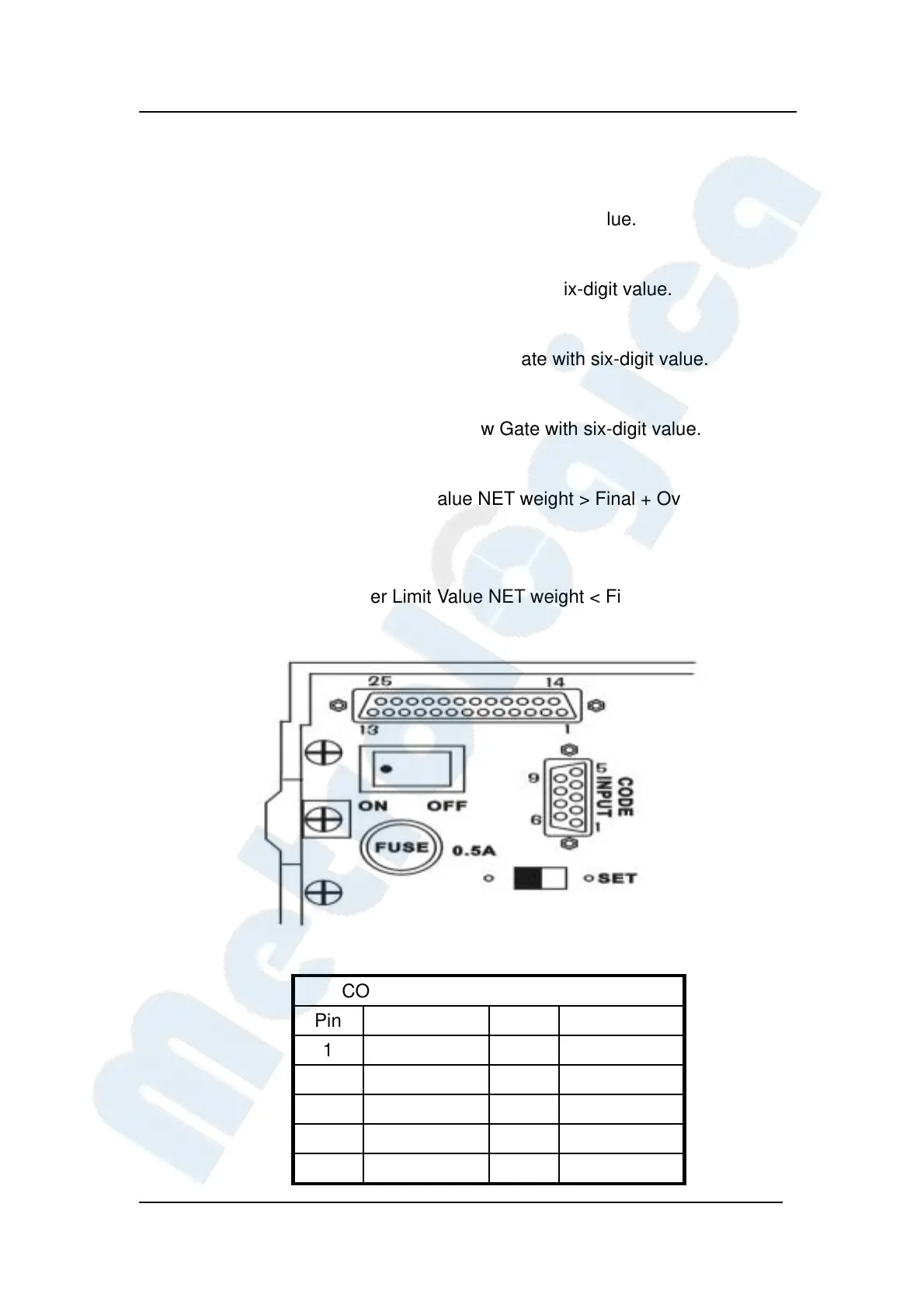

CODE INPUT
Pin Pin Name Pin Pin Name
1
1×1
6
2×10
2
2×1
7
4×10
3
4×1
8
8×10
4
8×1
9 Common
5
1×10
