JIF-2002 WEIGHING INDICATOR&CONTROLLER
56

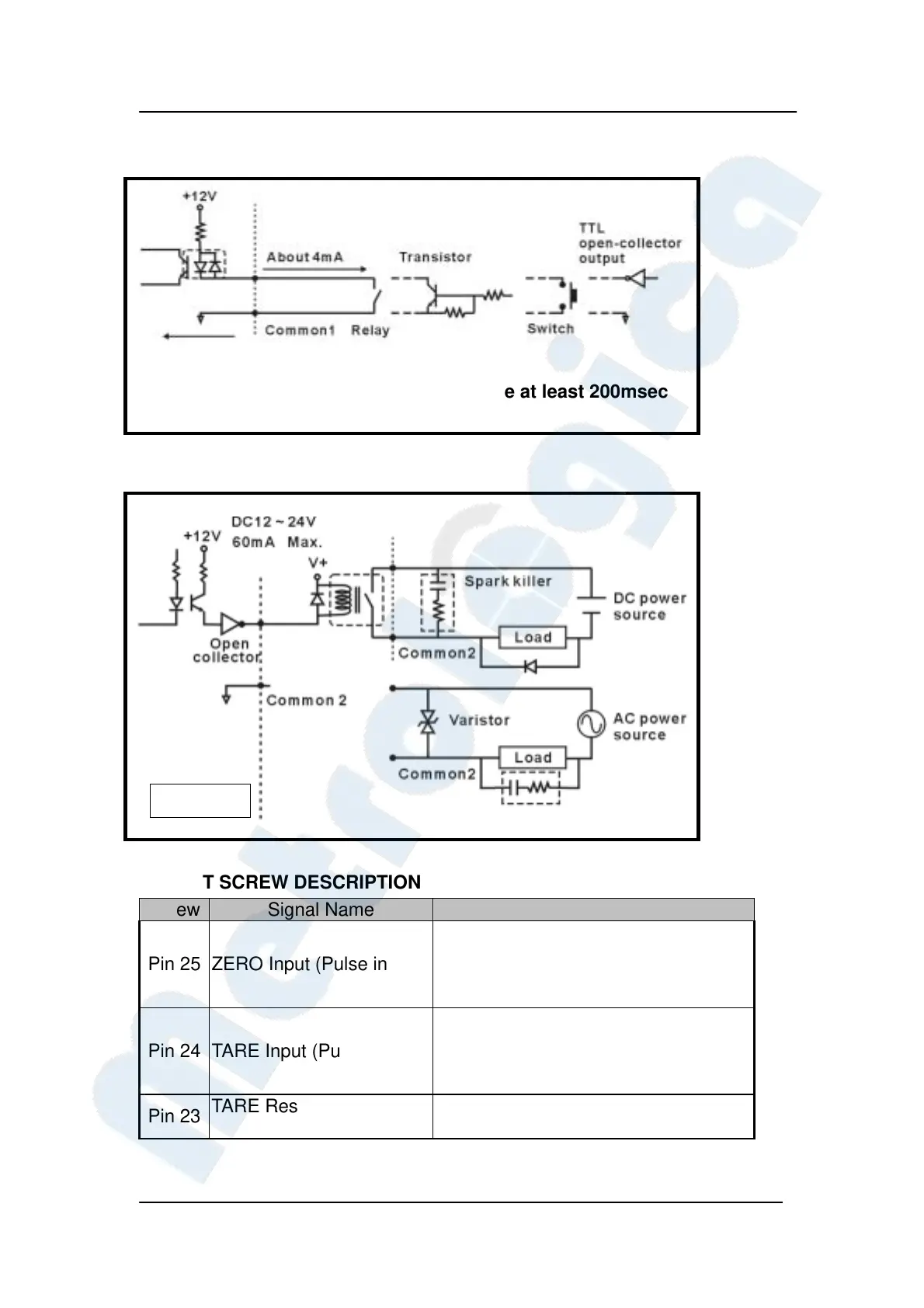

◎ Control I / O
Input
JIF-2002
The width of these inputs are at least 200msec
Output
JIF-2002
◎INPUT SCREW DESCRIPTION
Screw Signal Name Description
Pin 25 ZERO Input (Pulse input)
JIF-2002 returns to the center of
ZERO when the weighing device is
empty
Pin 24 TARE Input (Pulse input)
JIF-2002 switches to TARE mode,
ZERO's the display and stores the
TARE weight in memory.
Pin 23
TARE Reset (Pulse input) TARE value is cleared to "0".
