Jam Q3 - Front Panel Controls and Functions; Rear Panel Controls and Functions

1. Introduction
Thank you for your purchase of the Series Power Amplifier. These series amplifiers fully incorporate renown technological expertise, and offer high
reliability, rock-solid stability, and superb acoustic characteristics—all in a trim, 1U-sized package.
Features:
• Modular design, each channel is fully separate and without any interference to other channels. Each module is individually fused and has
its own power supply.
• Compact 1U Rack design with high output power and low weight
• Switch mode power supply, intelligent limiter and full protection circuitry.
• High output power is achieved by making each module from a stereo amplifier running in bridge mode. It is not possible to bridge the
output channels on this range of amplifiers, as they are already bridged.

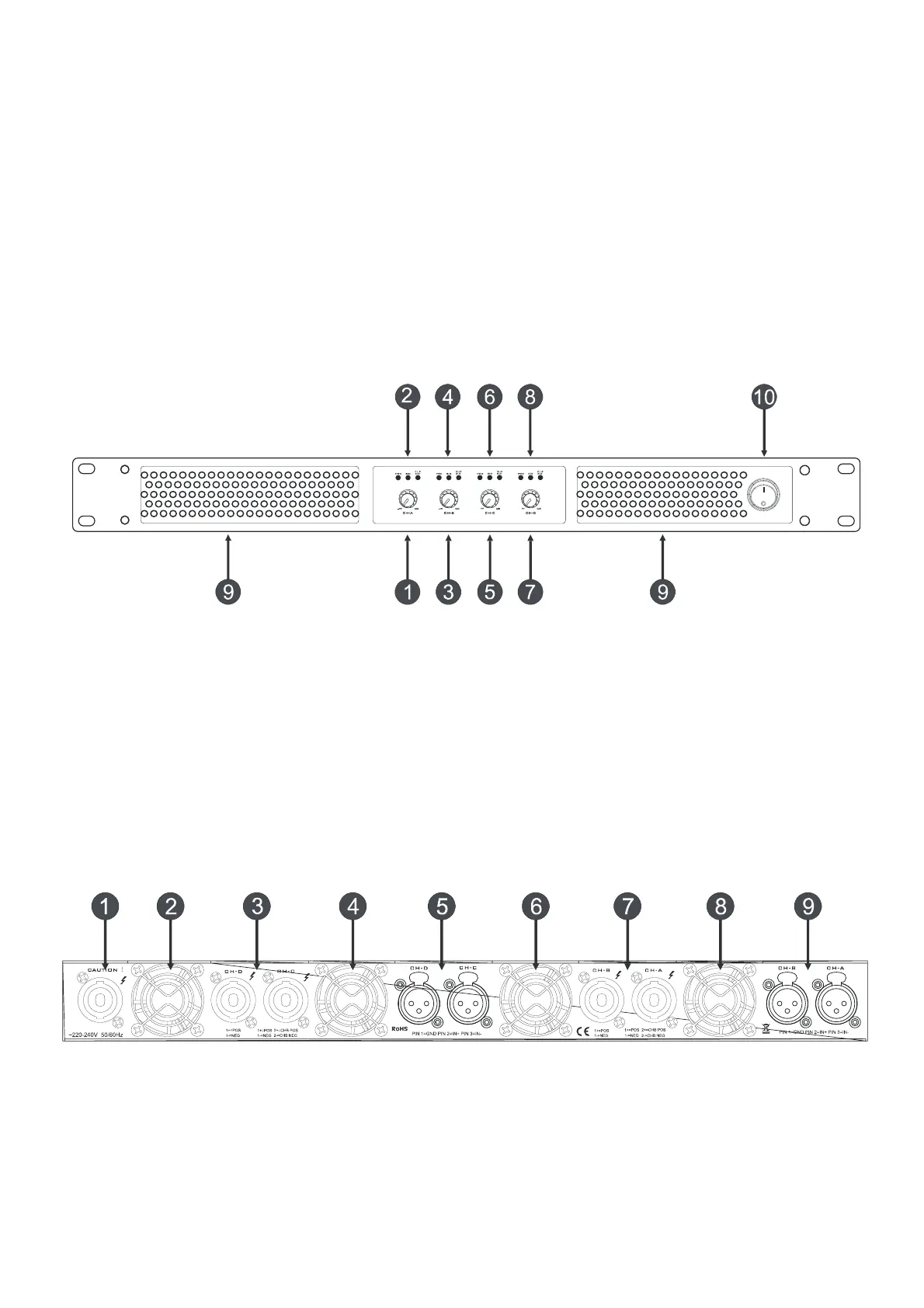

1-1 Front Panel Controls and functions
1. Channel A Volume Control Knob
2. Channel A Power Level Indicator
3. Channel B Volume Control Knob
4. Channel B Power Level Indicator
5. Channel C Volume Control Knob
6. Channel C Power Level Indicator
7. Channel D Volume Control Knob
8. Channel D Power Level Indicator
9. Air Inlet
10. Power Switch
1-2 Rear Panel Controls and functions
1. AC in Connector
2. Cooling fan outlet
3. Channel D/C signal output connector
4. Cooling fan outlet
5. Channel D/C signal input connector
6. Cooling fan outlet
7. Channel B / signal output connector
8. Cooling fan outlet
9. Channel B/A signal input connector
