Model DP Oil-Fired Heater Page 3
2. A manually operated fuel valve to be installed in
the fuel line near the storage tank.
3. A 115V AC power supply and all wire and
conduit needed to supply electricity to the heater.
A junction box is not needed at the heater,
connections are made inside of the heater jacket.
1.7.2 Materials for Special Applications
In addition to the items listed above, the following
items are needed for special applications.
1. A factory authorized barometric draft control and
any vent pipe needed for indoor installations in
the USA and outdoor shelter installations in
Canada (see Section 3.2.2). Barometric draft
controls are available from any Laars distributor.
2. The appropriate size metal pipe to connect to the
inlet/outlet header of the heater. Do not connect
any type of plastic pipe directly to the heater.
3. A non combustible platform for installation on
combustible surfaces (see Section 2.3.3). Non
combustible bases are available from your Jandy
distributor.
1.8 Specifications
1.8.1 General Specifications
1. Installation Location:
Certified for use:
In the USA: Indoor and Outdoor
In Canada: Outdoor and Outdoor Shelter
2. Minimum Clearance From Combustible Material:
See Table 1 in Section 2.3.2
3. Supply Fuel Type:
Certified for use with:
#2 Fuel Oil or # 2 Diesel Fuel.
4. Burner Rating:
315 BTU/Hr
5. Fuel Consumption:
2.25 GPH (US Gallons per Hour)
4. Water Pipe/Heater Connection:
1 1/2" Threaded Iron Pipe or
1 1/4" Unthreaded Iron Pipe or
1 1/2" Copper Tubing
7. Water Flow Rate:
Maximum: 60 gpm (228 lpm)
Minimum: 30 gpm (110 lpm)
8. Working Water Pressure:
Maximum: 75 psi
9. Exhaust Vent Connection Size:
Model DP3000 9" Diameter
10. Electrical Supply:
115 Volts AC, 60 Hertz, 1 Phase.
11. Modification of Heater for High Altitude:
Adjustment of air shutter to obtain most efficient
combustion.
12. Shipping Weight:
315 lbs.
1.8.2 Dimensions

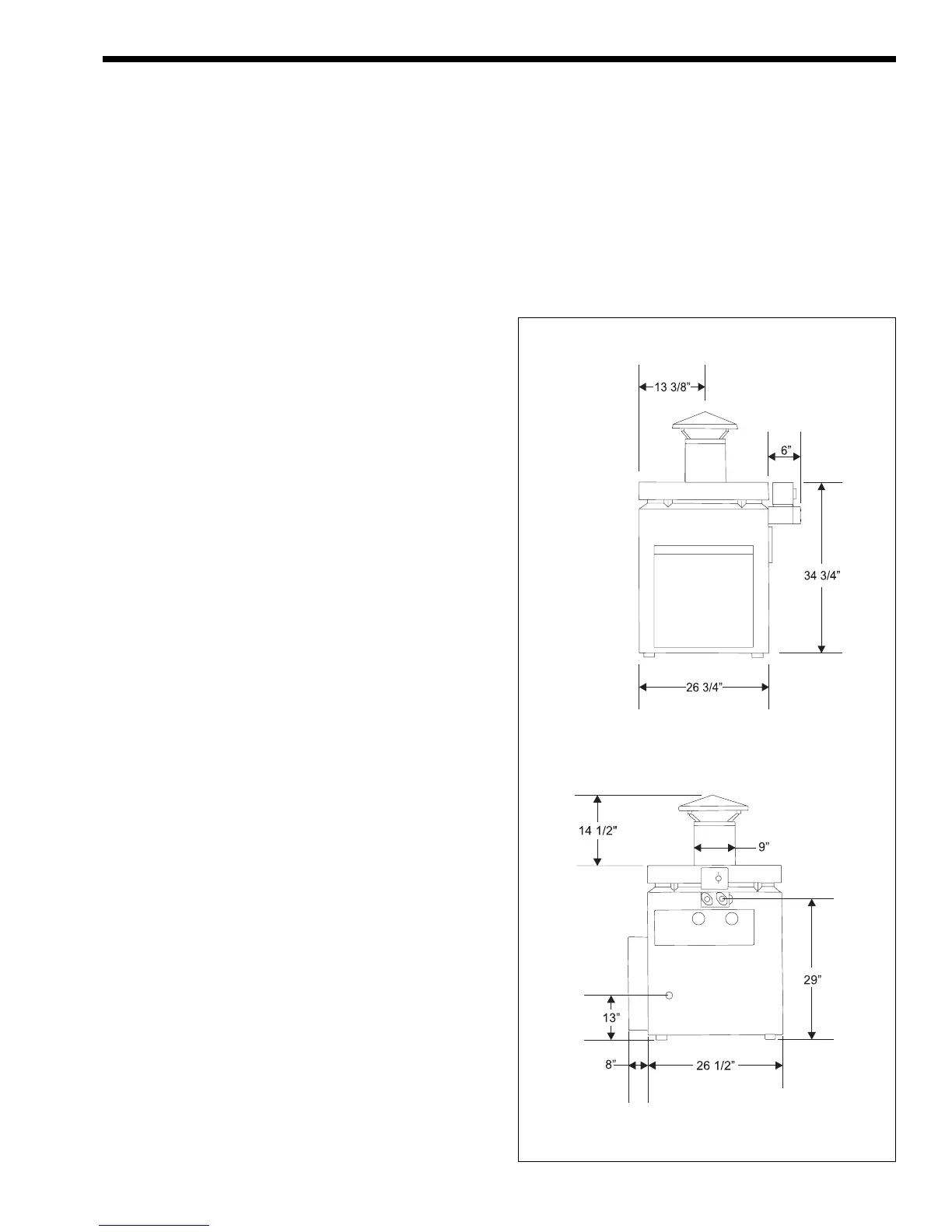

See Figure 1 for a diagram showing the heater's
exterior dimensions and dimensions to critical
connections on the heater.
FRONT VIEW
SIDE VIEW
Figure 1. XL-3 Model DP3000 Oil-Fired Heater.
