Jandy Slide Backwash Valve - Jandy Slide Valve Exploded View and Replacement Parts List

Page 8

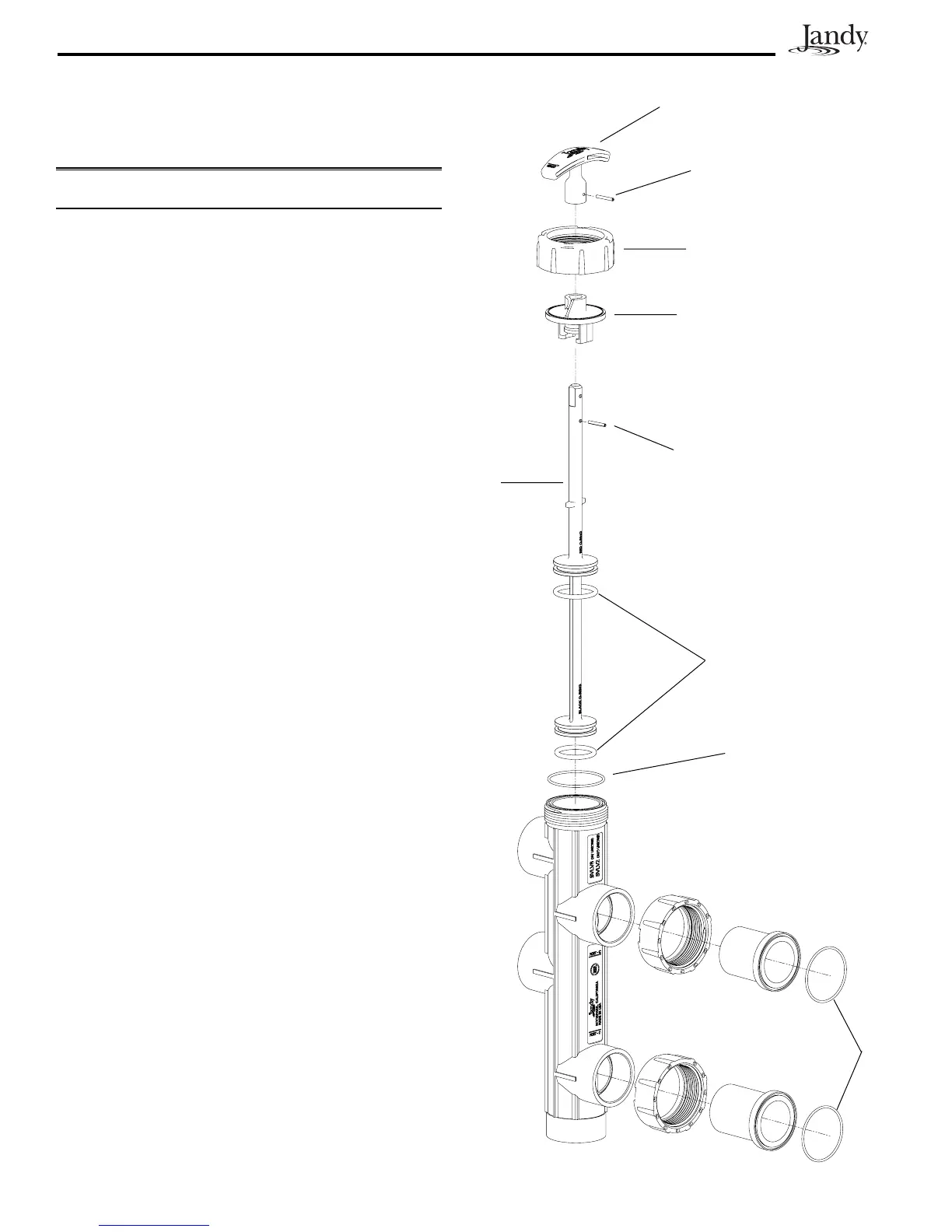

Section 6. Jandy Slide Valve Exploded
View and Replacement Parts
List
Key
No.
Description Qty. Order
Part No.
1 Rebuild Kit (O-rings, Roll Pins
and Index Plate/Lid)
O-ring, Lid
O-ring, Shaft, Top, Black
O-ring, Shaft, Bottom,
Purple
O-ring, Union Tail Piece
Roll Pin, Handle (1")
Roll Pin, Shaft (
13
/
16
")
Index Plate/Lid
1
1
1
2
1
1
1
R0442100
2 Shaft Replacement Kit
Shaft
Handle
Roll Pin, Handle (1")
Roll Pin, Shaft (
13
/
16
")
Index Plate/Lid
Lid Union Nut
O-ring, Lid
O-ring, Shaft, Top, Black
O-ring, Shaft, Bottom,
Purple
1
1
1
1
1
1
1
1
1
R0442200
3 Handle Replacement Kit
Handle
Roll Pin, Handle (1")
Roll Pin, Shaft (
13
/
16
")
Lid Union Nut
Lid O-ring
1
1
1
1
1
R0442300
1, 2, 3
1, 2, 3
1, 2, 3
2, 3
2, 3
1, 2
2
1, 2
1
