DRIVE CHAIN, CON’T.

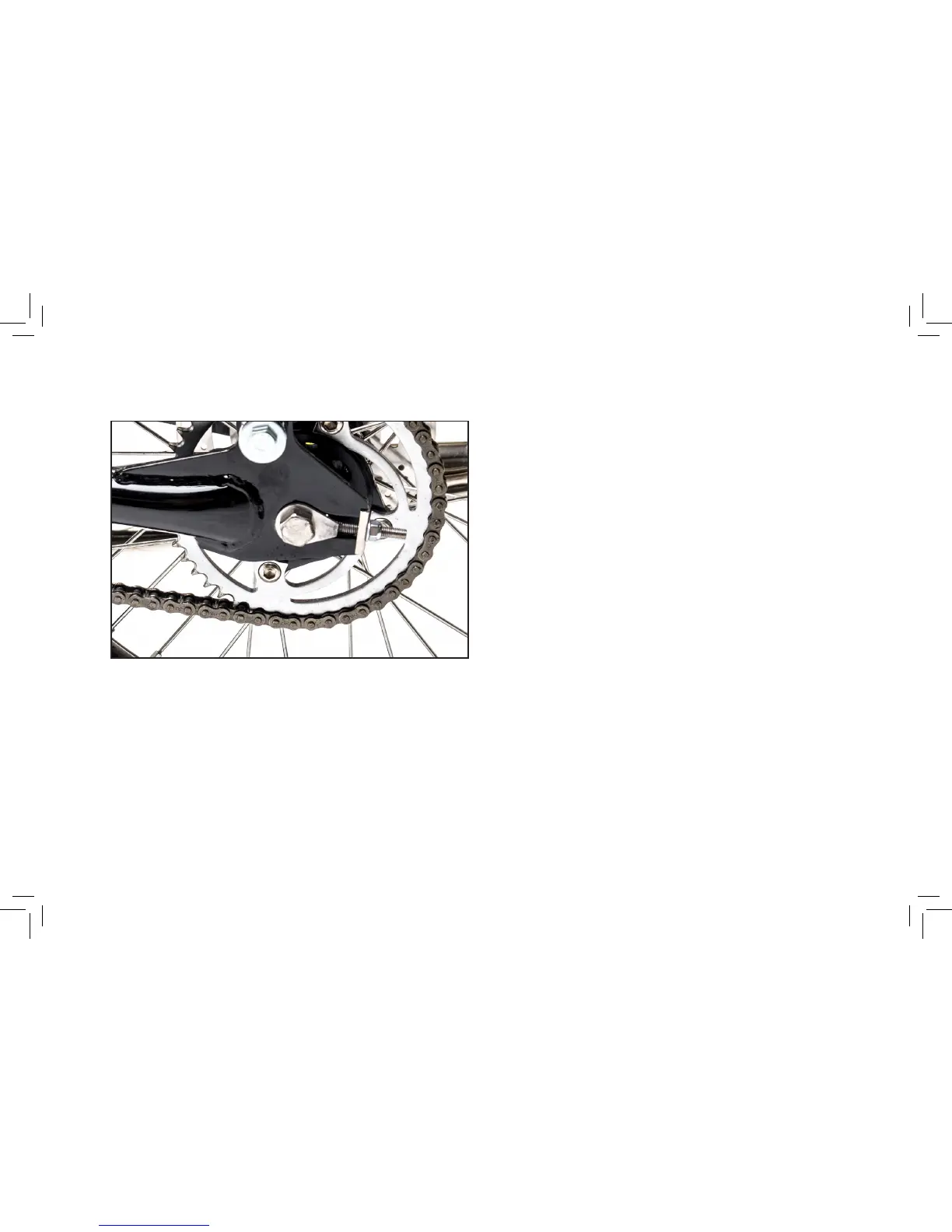

CHAIN PLAY ADJUSTMENT
1. Loosen the rear axle.
2. Loosen the left and right chain adjuster locknuts located off the
rear axle.
3. If the chain is too loose, tighten the right and left chain adjuster
nuts evenly.
4. If the chain is too tight, loosen the right and left chain adjuster nuts
evenly.
5. Tighten both chain adjuster locknuts.
6. Tighten the rear axle nut to the specified torque. (98 N-m, 10kgf-m,
72 ft-lb)
WARNING: A loose axle nut is a serious safety threat and can lead
to an accident resulting in serious injury or death. Tighten the axle
nut to proper torque.
WARNING: Misalignment of the rear wheel will result in abnormal
wear, improper brake engagement, and mayresult in an unsafe
riding condition. Be sure to evenly adjust the left andright nut and
note the side-to-side alignment of the wheel.
