14314 PRODUCT SPECIFICATIONS
www.byjasco.com
2

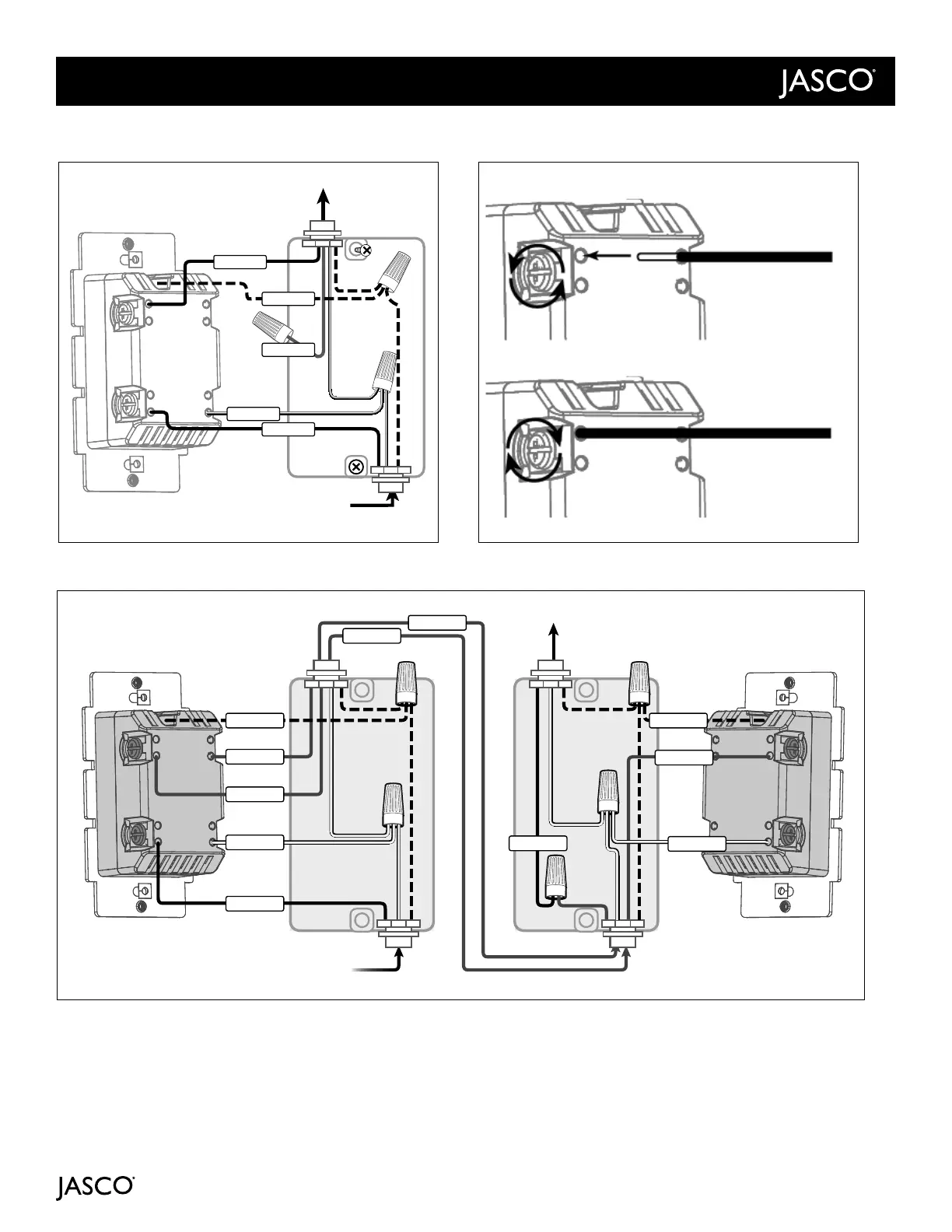

Single Location Wiring
Multi-Location Wiring
Space-Saving Screw Terminals
TRAVELER
TRAVELER
TRAVELER
LOAD
LOAD
GROUND GROUND
JUMPER
LOAD
JUMPER
LINE
From Breaker Box
In from Line Switch
Out to Light (Load)
Load Switch
(Add-On Switch)
Line Switch
(Primary Switch)
From Breaker Box
Out to Light (Load)
LOAD
NEUTRAL
GROUND
LINE
TRAVELER
Installation Recommendations:
· Insert wires into holes, do not wrap wires around screws. Do not remove screws.
· Devices require a 1-gang U.S. wall box. 3½ in deep recommended, 2¼ in deep minimum.
· Indoor use only
· Visit http://www.ezzwave.com/hubs/ for hub compatibility
· Wallplates sold separately
· Trilingual Instruction manual – (English, French, Spanish)
