SECTION 13 - EXTERIOR JAYCO TOWABLE
13-8 JFTT
ROOF LADDER (IF SO EQUIPPED)
Your RV may be equipped with an optional roof ladder. The RV roof has decking
under the rubber roof membrane to allow you to walk on the roof (with caution) to
do maintenance
.
OUTSIDE KITCHEN (IF SO EQUIPPED)
The outside kitchen unit consists of a 2-burner cooktop, refrigerator and sink. See
the manufacturer’s user guide for detailed cooktop and refrigerator operation
information.
To access the kitchen unit, open the exterior door by lifting it up until the door
struts are fully extended. The struts will hold the door in the open position.

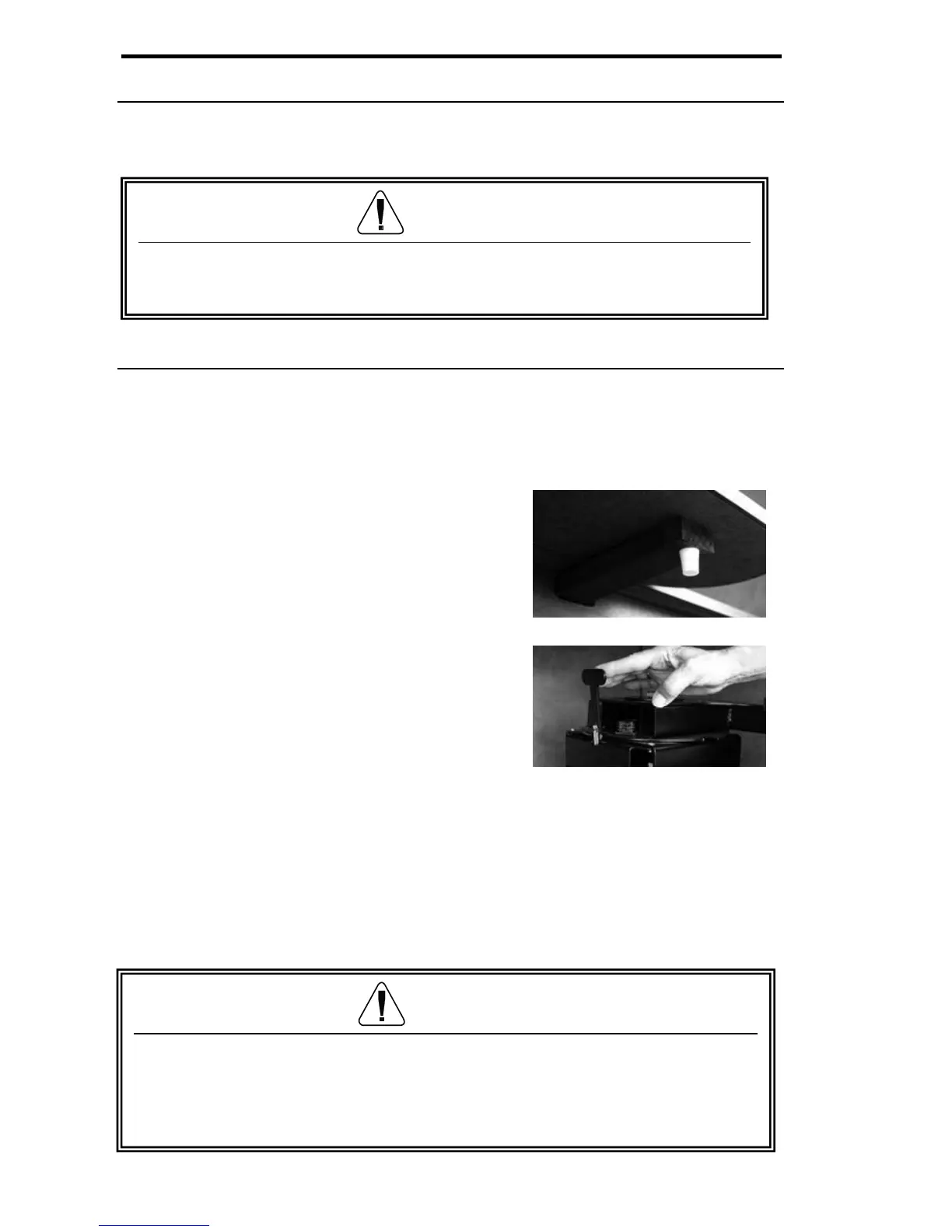

Lift up the countertop extension and secure it in
place by pulling the (2) wooden supports forward.
Make sure the supports are pulled completely
forward to insure proper support of the extension.
Fig. 13.2 Wood Support
Locate the black locking lever at the base of the
swing arm. Push in on the lever while pulling
forward on the swing arm. Swing the cooktop
unit open as far as the swing arm will allow.
Fig. 13.3 Locking Lever
Locate the support leg on the back side of the cooktop unit. Push in and hold the
release button on the support leg while pushing the bottom of the leg extension in
allowing it to drop from the stowed position to the support position. Push in and
hold the release button once again to allow the extension portion of the support
leg to drop down to the appropriate height to support the cooktop unit. Make sure
the support leg is setting on a stable solid surface.
NOTE: The cooktop will function more efficiently when level. The support leg
should be adjusted to ensure to cooktop is as level as possible.
WARNING
The support leg must be down and in the support position prior to using the
cooktop. Be sure the support leg is on a stable solid surface. Using the
cooktop without the support leg or not having the leg on a stable solid
surface may increase the risk of hot food or utensils falling off the cooking
surface resulting in serious injury.
WARNING
If your RV is equipped with a roof ladder, do not leave items attached to it
while traveling. The ladder has a weight limit of 350# when using it to
access the roof. DO NOT exceed this weight limit.
