JAYCO TOWABLE SECTION 13 - EXTERIOR
JFTT 13-9
Attaching the “quick coupler” connection
The “quick coupler” is directly connected to the RV propane system. The “quick-
coupler” connection has a positive shut-off valve as required by code and
standards.
1. Place the “quick coupler handle in the OFF position and push back the
sleeve. The valve handle must be OFF to make the connection.
2. Insert the plug and release the sleeve.
3. Push the plug until the sleeve snaps forward, locking the plug into the socket.
4. Turn the handle ON to allow propane to flow to the drop in stove.

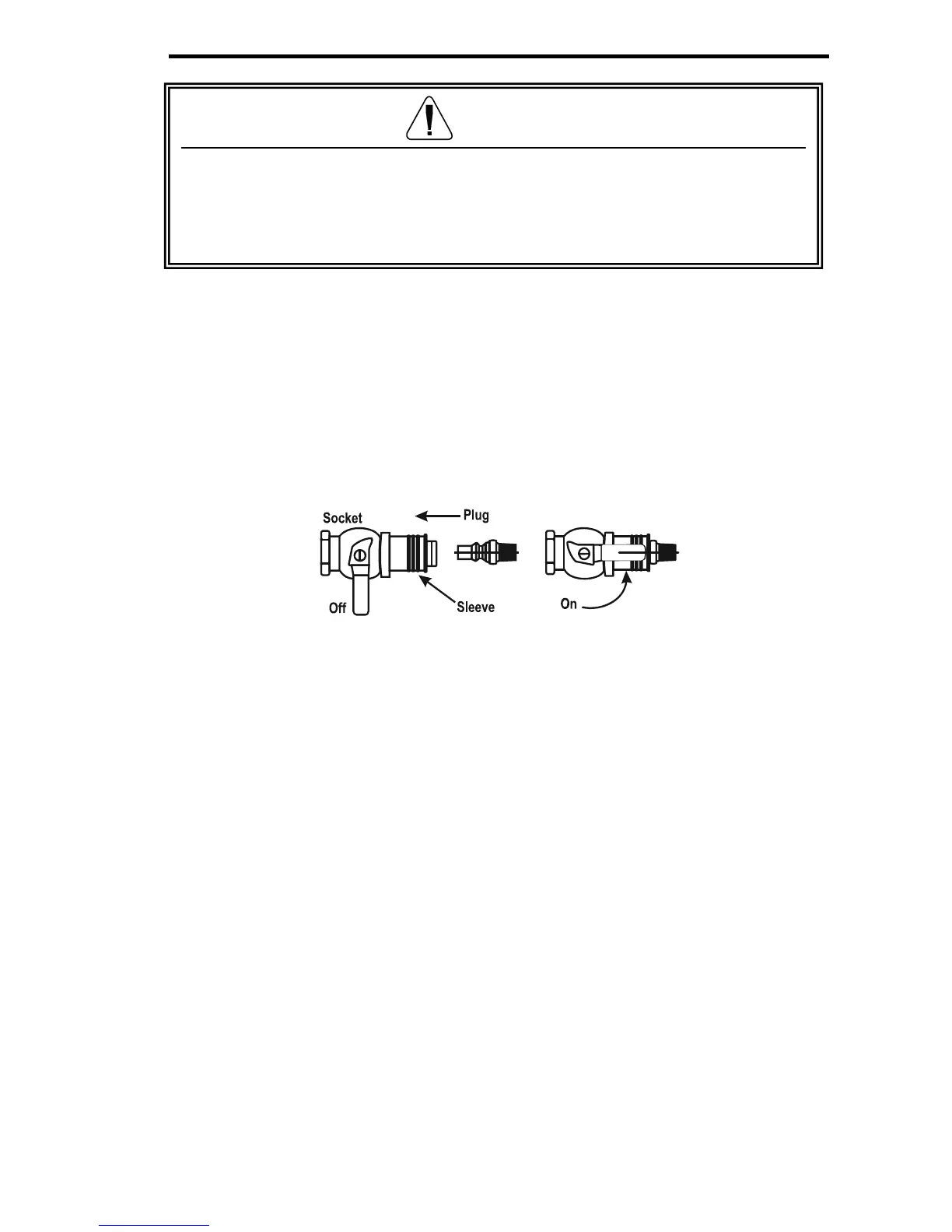

Fig. 13.1 Quick connect coupler
To return the kitchen unit to the stowed position, first disconnect the propane
connection. Hold in the release button on the support leg and retract the lower
portion of the leg. Swing the leg up into the stowed position and extend the leg
into the storage bracket. Swing the cooktop back into the stowed position until it
locks into place. Pull down on the exterior door until it is in the closed position.
Make sure all exterior door locks are in the locked position prior to travel.
WARNING
The maximum capacity of the cooktop with the support leg down is 50
lbs. / 23kg. Never use the cooktop without the supporting leg, or lean on the
cooktop or swing out assembly. Setting items on the cooktop that exceed
the weight limit, using the cooktop without the support leg or leaning on the
cooktop could cause damage to the unit or result in personal injury.
