10-4
Attaching the “quick coupler” connection
The “quick coupler” is directly connected to the RV propane system. The “quick-
coupler” connection has a positive shut-off valve as required by code and
standards.
1. Place the “quick coupler handle in the OFF position and push back the
sleeve. The valve handle must be OFF to make the connection.
2. Insert the plug and release the sleeve.
3. Push the plug until the sleeve snaps forward, locking the plug into the socket.
4. Turn the handle ON to allow propane to flow to the drop in stove.

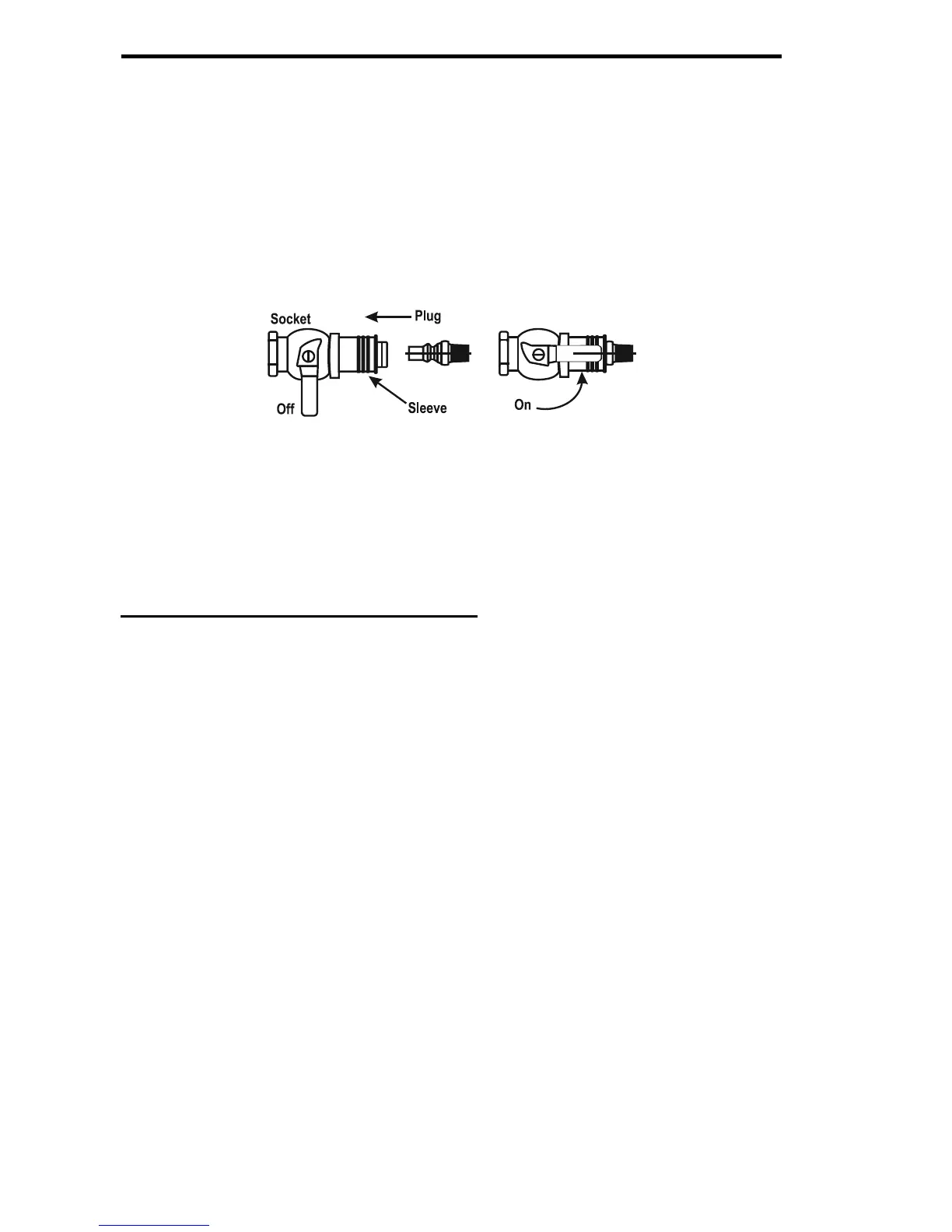

Fig. 10.1 Quick connect coupler
BBQ Grill Prep (if so equipped)
Your RV is equipped with a propane “quick-coupler” connection and support
bracket for easy installation of the BBQ grill.
WATER HEATER – SEE PLUMBING SECTION
