Jayco Cardinal 8 - Page 22

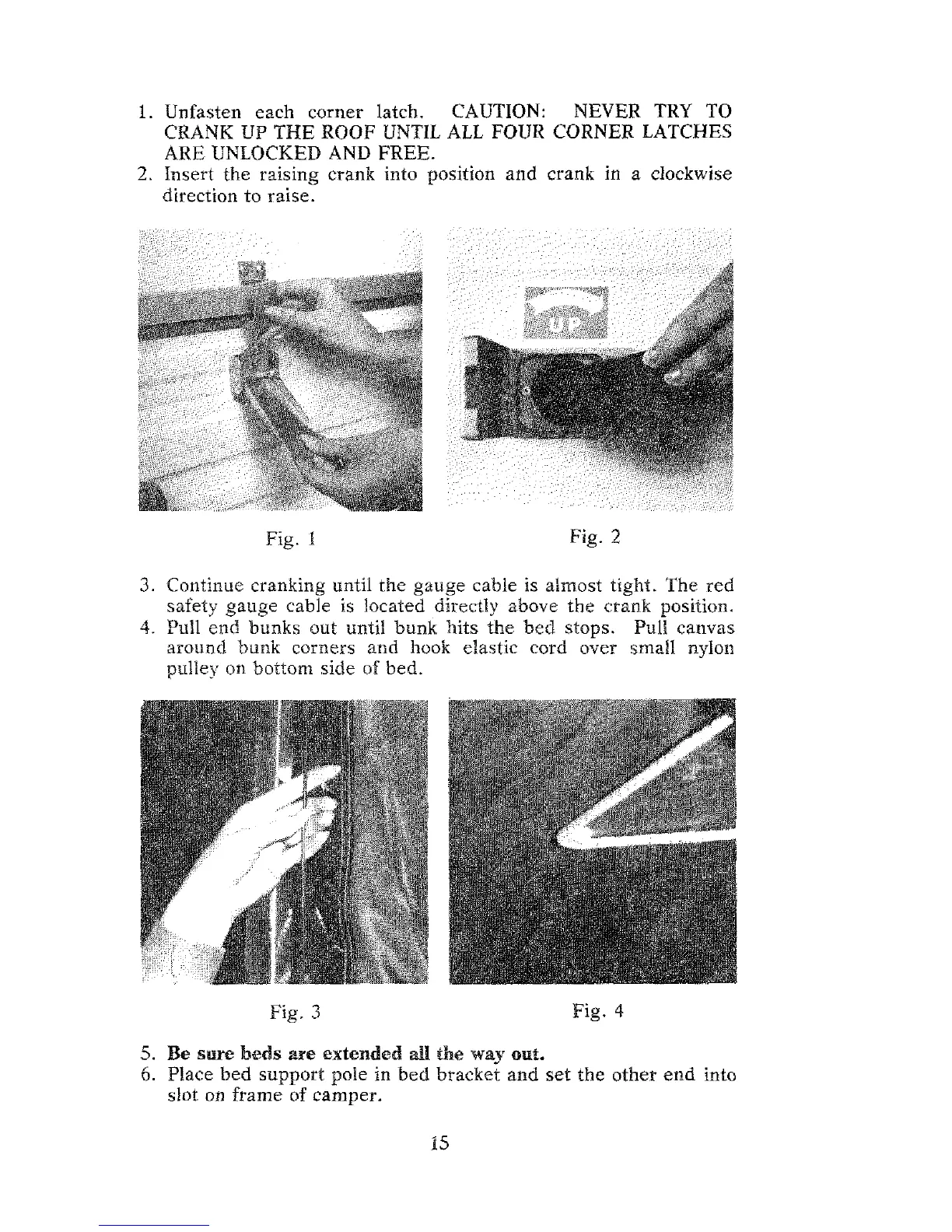

Unfasten each corner latch. CAUTION: NEVER TRY TO
CRANK UP THE ROOF UNTIL ALL FOUR CORNER LATCHES
ARE UNLOCKED AND FREE.
Insert the raising crank into position and crank in a dockwise
direction to raise.
Fig. 1
Fig. 2
3. Continue cranking until the gauge cable is almost tight. The red
safety gauge cable is located dxectly above the crank posi~ion.
4. Pull end bunks out until bunk hits the bed stops. Pull canvas
around bunk: corners and hook elastic cord over small nylon
pulley on bottom side of bed.
Fig. 3 Fig. 4
5. Be sure beds are extended dl the way out.
6. Place bed support pole In bed bracket and set the other end into
slot on frame of camper.
