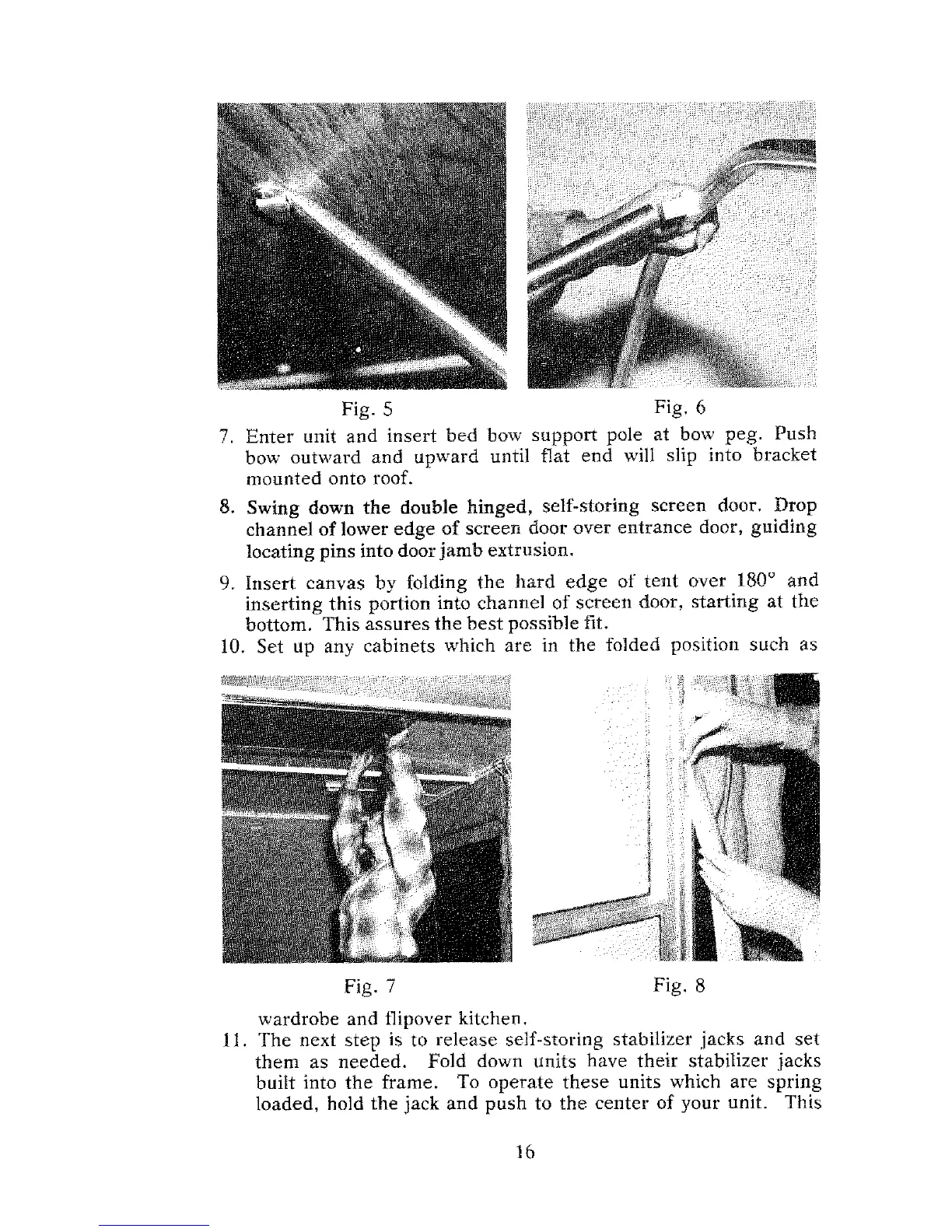

Fig.
5
Fig.
6
7.
Enter unit and insert bed
bow
support
pole at bow peg.
Push
bow outward and upward until
flat
end
will
slip
into bracket
mounted onto roof.
8.
Swing
down
the
double
hinged,
self-storing screen door. Drop
channel of
lower
edge
of
screen door over entrance door,
guiding
locating
pins
into door
jamb
extrusion.
9.
Insert canvas
by
folding the hard edge of tent
over
180"
and
inserting this portion into channel
of
screen door, starting
at
the
bottom.
This
assures the best possible fit.
10.
Set
up
any cabinets which are in the folded position
such
as
Fig.
7
Fig.
8
wardrobe and flipover kitchen.
11.
The next step
is
to
release self-storing stabilizer jacks and set
them
as
needed. Fold
down
units have their stabilizer
jacks
built into the frame.
To
operate these units which
are
spring
loaded,
hold
the jack
and
push to
the
center
of
your
unit.
This
